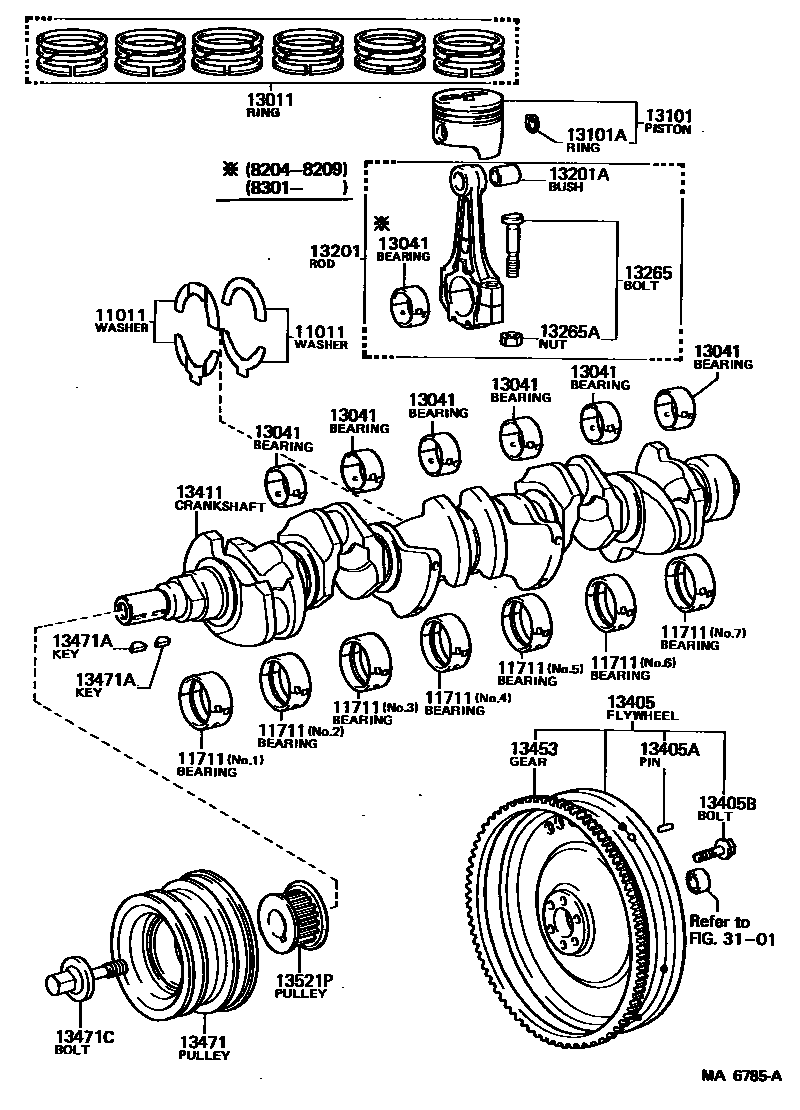

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
13011RING SET, PISTON
sub13011-43030
STD
STD
STD
STD
STD
sub13011-54061
sub13013-43031
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
sub13014-43031
O/S 0.75
sub13015-43031
O/S 1.00
13041BEARING, CONNECTING ROD
MARK"3"OR"6",MARK 3
MARK"4"OR"7",MARK 4
MARK"5"OR"8",MARK 5
13101PISTON SUB-ASSY, W/PIN
STD
STD
sub13101-43011
STD
STD
STD
STD
O/S 0.50
O/S 0.50
sub13103-43031
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
sub13104-43031
O/S 1.00
O/S 1.00
sub13105-43031
13101ARING, HOLE SNAP(FOR PISTON PIN)
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
*10-1.25PX26-18
*12-1.25PX29-19
13453GEAR, FLYWHEEL RING
N=115
N=101
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
*14-1.5PX26-21
W/PS,*14-1.5PX26-21
*16-1.5PX26-21
*18-1.5PX40-20
*14-1.5PX40-31
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=18
N=20
3101
