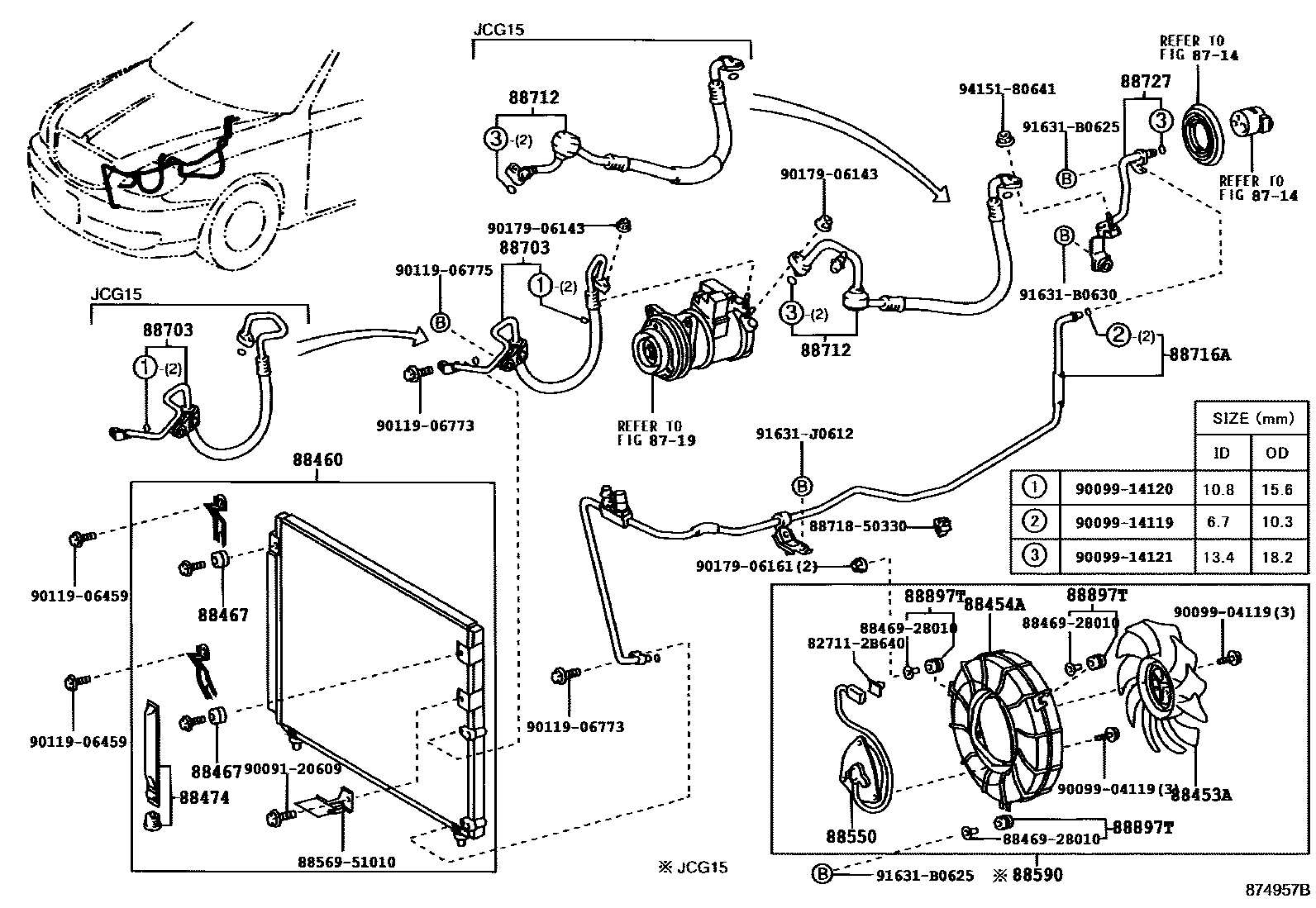

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88453AFAN, COOLING

main88453-51010iJCG15200110

88454ASHROUD, FAN

main88454-51010iJCG15200110

88460CONDENSER ASSY, COOLER

main88460-51010iJCG1#200105

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32020iJCG1#200105

88474DRYER, COOLER

main88474-47010iJCG1#200105

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-64070iJCG15200110

88590BLOWER ASSY, W/SHROUD

main88590-51010iJCG15200110

88703HOSE SUB-ASSY, DISCHARGE

main88703-51050iJCG15200110

main88703-51060iJCG10,11200105

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-51020iJCG10,11200105

main88712-51030iJCG15200110

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-51030iJCG1#200105

88727TUBE, SUCTION, NO.2

main88707-51010iJCG1#200105

sub88727-51020

sub88467-14070

sub88569-51040

sub90099-32140

88897TGROMMET, COOLER

main88897-50020iJCG15200110

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8856951010CLAMP (FOR COOLER RELAY)

main88569-51010

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

9009120609

main90091-20609

9009904119

main90099-04119

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906459

main90119-06459

9011906773

main90119-06773

9011906775

main90119-06775

9017906143

main90179-06143

9017906161

main90179-06161

91631B0625

main91631-B0625

91631B0630

main91631-B0630

91631J0612

main91631-J0612

9415180641

main94151-80641

32 parts on this diagram · 1 diagram in section
