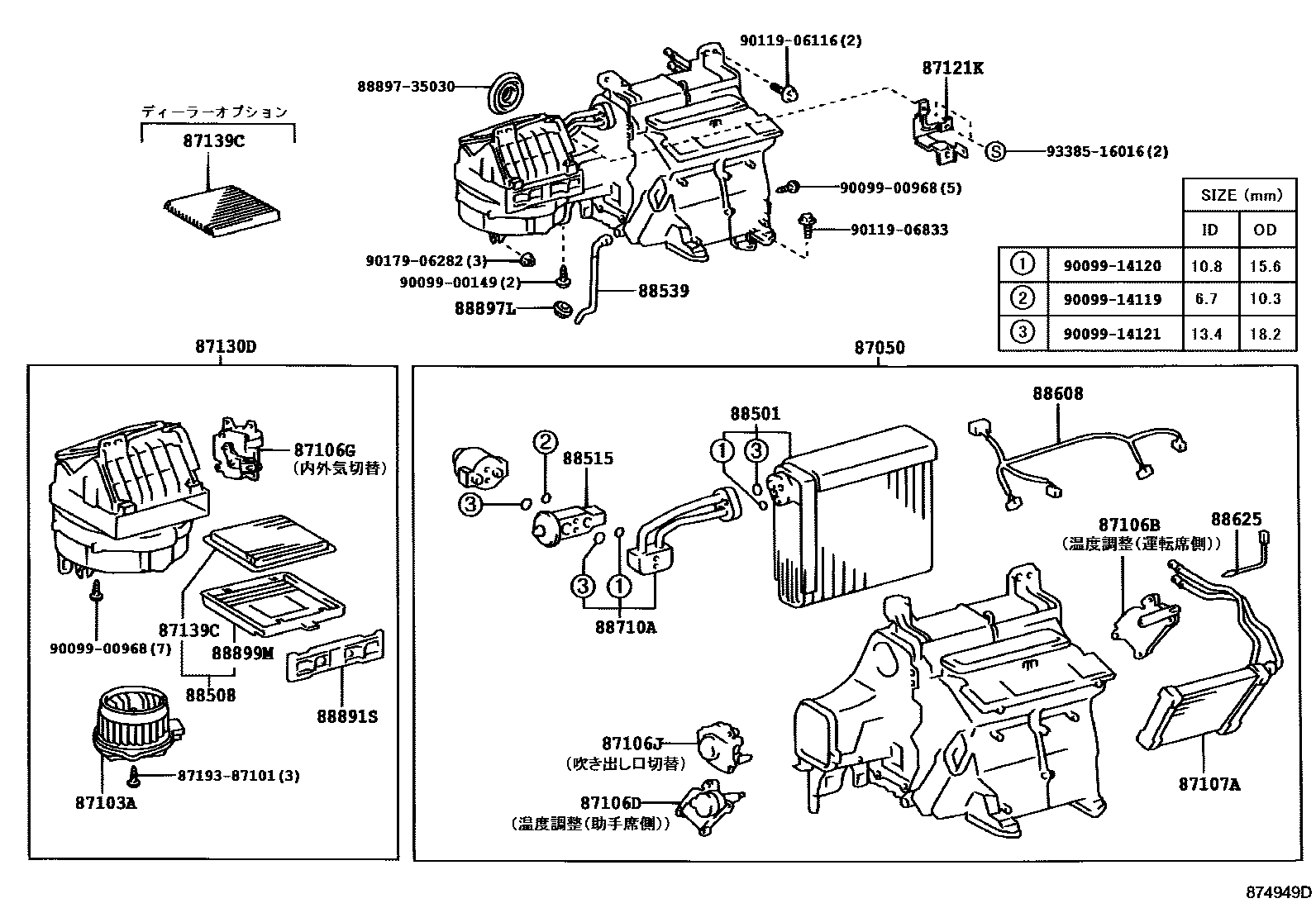

HEATING & AIR CONDITIONING - COOLER UNIT

87050RADIATOR ASSY, AIR CONDITIONER

main87050-51020iJCG1#200105

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-22130iJCG1#200105-200106

sub87103-30440

main87103-30430iJCG1#200107

87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

main87106-30340iJCG1#200105-200307

sub87106-30341

main87106-30341iJCG1#200307

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-30350iJCG1#200105-200307

sub87106-30351

main87106-30351iJCG1#200307

87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-30380iJCG1#200105

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30361iJCG1#200105

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-51010iJCG1#200105

87121KBRACKET, HEATER

main87121-53020iJCG1#200105

87130DBLOWER ASSY

main87130-51020iJCG1#200105

87139CFILTER, CLEAN AIR

main87139-30010iJCG1#200105

sub87139-48030

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A050iJCG1#200105

88508FILTER SUB-ASSY, CLEAN AIR

main88508-48020iJCG1#200105

88515VALVE, COOLER EXPANSION

main88515-22260iJCG1#200404

main88515-30690iJCG1#200105-200404

sub88515-22260

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30840iJCG15200110

main88539-30870iJCG10,11200110

main88539-51010iJCG1#200105-200110

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-51030iJCG1#200105

88625THERMISTOR, COOLER, NO.1

main88625-3A120iJCG1#200105

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A140iJCG1#200105

88891SCOVER, COOLER, NO.1

main88891-30680iJCG1#200105

88897LGROMMET (FOR DRAIN HOSE)

main88899-3A010iJCG1#200105

88899MPLATE, COVER(FOR AIR FILTER)

main88899-30870iJCG1#200105

8719387101

main87193-87101

8889735030VALVE, COOLER MAGNET

main88897-35030

9009900149

main90099-00149

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906116

main90119-06116

9011906833

main90119-06833

9017906282

main90179-06282

9338516016

main93385-16016

31 parts on this diagram · 1 diagram in section
