TELEPHONE & MAYDAY

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-51020iJCG1#200404-200512

86710COMPUTER ASSY, TELEPHONE

main86710-50150iJCG1#200404-200512

86712WIRE, TELEPHONE

main86712-51050iJCG1#200404-200512

main86712-51060iJCG1#200404-200512

86713WIRE, TELEPHONE COMPUTER

main86713-48040iJCG1#200404-200512

main86713-51110iJCG1#200404-200512

86713CWIRE, TELEPHONE COMPUTER(TO NAVIGATION ECU)

main86713-51120iJCG1#200404-200512

86719ABRACKET, TELEPHONE NO.1

main86719-51040iJCG1#200404-200512

86725BATTERY, MOBILEPHONE

main86725-50020iJCG1#200404-200512

86730MICROPHONE ASSY, TELEPHONE

main86730-48010iJCG1#200404-200512

86740TRANSCEIVER ASSY, TELEPHONE

main86740-50050iJCG1#200404-200512

86750ASWITCH ASSY, MAYDAY

main86750-51030iJCG1#200404-200512

86761ROD, TELEPHONE ANTENNA

main86761-50040iJCG1#200105-200210

sub86761-50041

main86761-50041iJCG1#200210-200512

86762BASE, TELEPHONE ANTENNA

main86762-50040iJCG1#200105-200210

sub86762-50041

main86762-50041iJCG1#200210-200309

sub86762-50042

main86762-50042iJCG1#200309-200512

87268EPROTECTOR, TELEPHONE ANTENNA

main87268-50010iJCG1#200105-200210

sub87268-50011

main87268-50011iJCG1#200210-200512

9018206003

main90182-06003

9095008003

main90950-08003

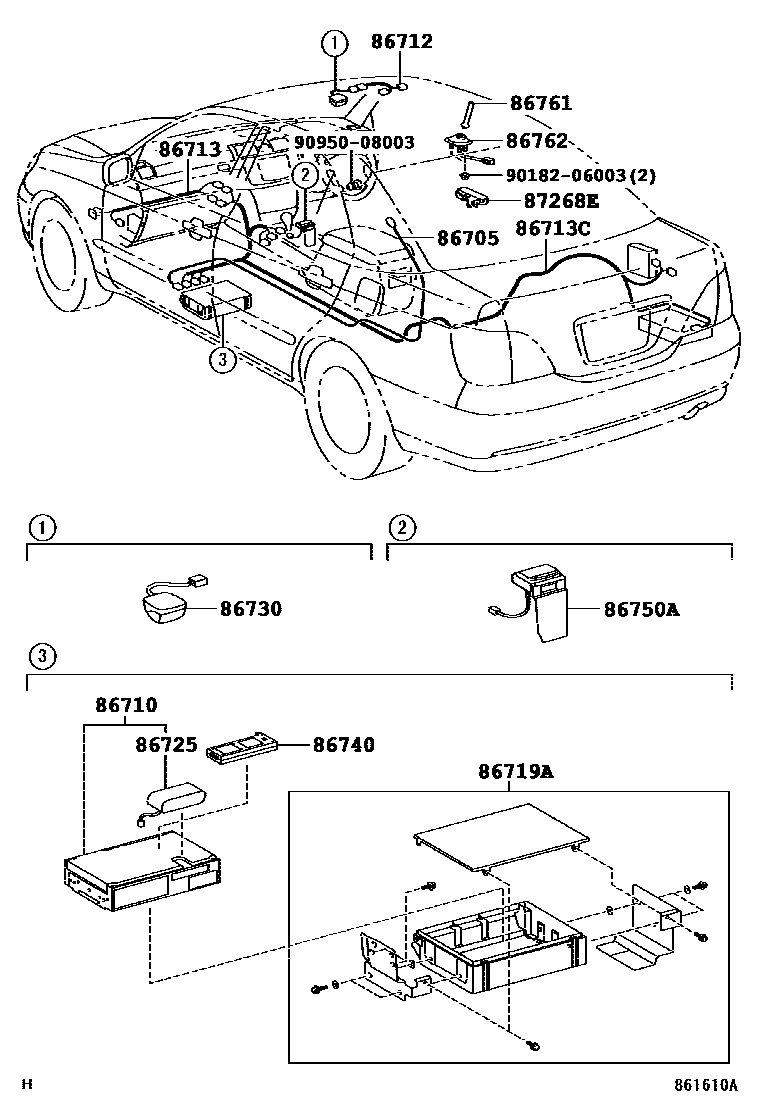

15 parts on this diagram · 1 diagram in section
