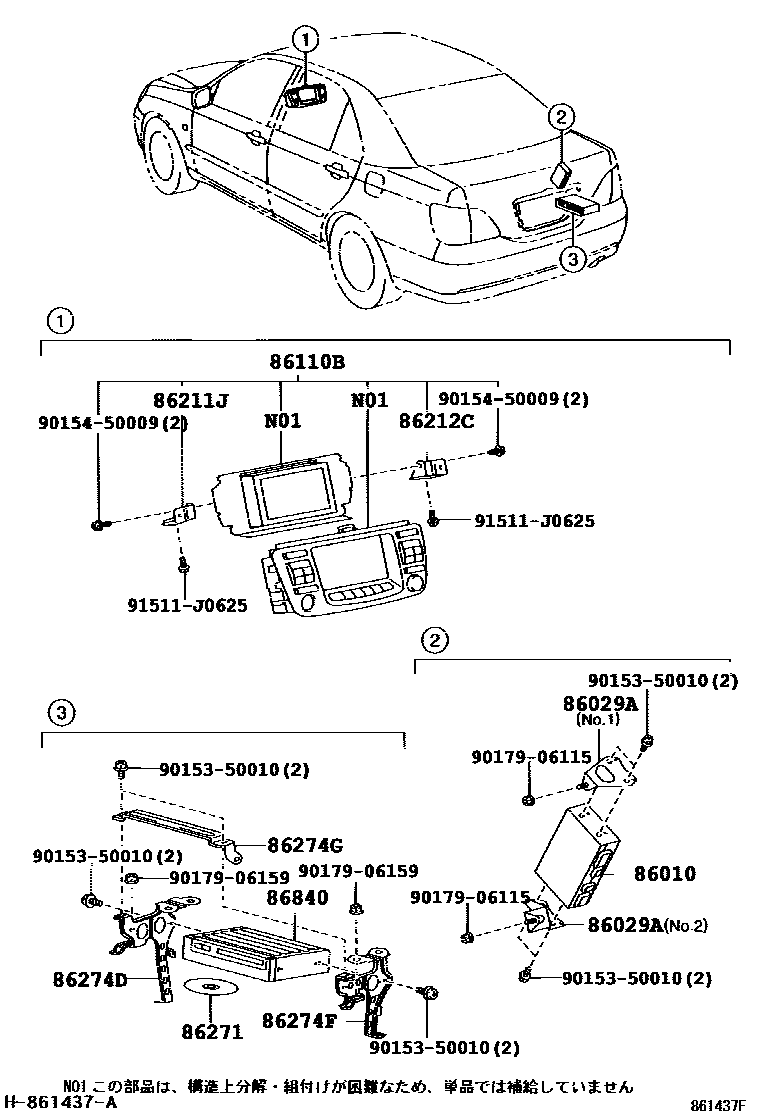

NAVIGATION & FRONT MONITOR DISPLAY

86010TUNER ASSY, TELEVISION

main86010-51040iJCG1#200105-200210

sub86016-50010

main86016-50010iJCG1#200210

86029ABRACKET SET, TELEVISION, NO.1

main86029-51010iJCG1#200105

main86029-51020iJCG1#200105

86110BMULTI-DISPLAY ASSY

main86110-51020iJCG1#200105-200404

main86110-51030iJCG1#200105-200404

main86110-51040iJCG1#200105-200404

main86110-51050iJCG1#200105-200404

main86110-51070iJCG1#200404-200512

main86110-51080iJCG11200404-200706

main86110-51090iJCG1#200404-200706

main86110-51100iJCG1#200404-200706

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-51030iJCG1#200105

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-51030iJCG1#200105

86271DISC, DISC PLAYER

main86271-44020iJCG1#200105-200309

sub08664-00436

main86271-44021iJCG1#200309-200404

sub08664-00E10

main86271-52042iJCG1#200404-200410

sub08664-00F24

main86271-52043iJCG1#200410-200507

sub08664-00G16

main86271-52044iJCG1#200507-200509

sub86271-52045

main86271-52045iJCG1#200510-200604

sub08664-00J16

main86271-52046iJCG1#200604-200609

sub08664-00K16

main86271-52047iJCG1#200609-200612

sub08664-00L16

main86271-52048iJCG1#200701

sub08664-00M16

86274DBRACKET, DISC PLAYER

main86274-51030iJCG1#200105

86274FBRACKET, DISC PLAYER, NO.2

main86274-51040iJCG1#200105

86274GBRACKET, DISC PLAYER, NO.3

main86274-51050iJCG1#200105

86840CABLE, BOND (FOR NAVIGATION COMPUTER)

main86841-44010iJCG1#200105-200404

main86841-52020iJCG1#200404-200612

9015350010

main90153-50010

9015450009

main90154-50009

9017906115

main90179-06115

9017906159

main90179-06159

91511J0625

main91511-J0625

15 parts on this diagram · 1 diagram in section
