WIRING & CLAMP

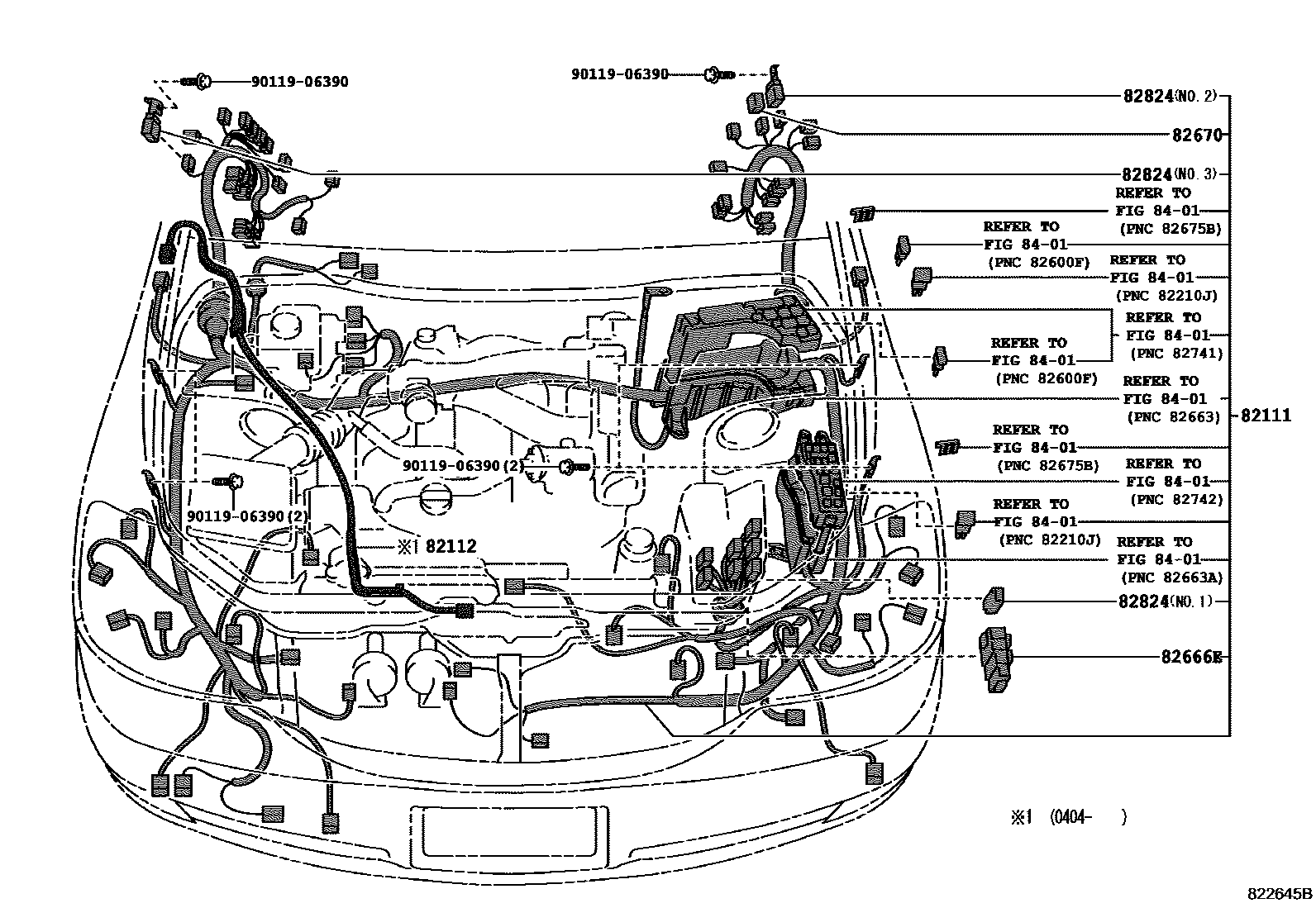

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-51120i200105-200404

main82111-51121i200404-200512

main82111-51122i200512

main82111-51130i200105-200404

main82111-51131i200404-200512

main82111-51132i200512

main82111-51140i200105-200404

main82111-51141i200404-200512

main82111-51142i200512

main82111-51150i200105-200404

main82111-51151i200404-200512

main82111-51152i200512

main82111-51160i200105-200404

main82111-51161i200404-200512

main82111-51162i200512

main82111-51170i200105-200404

main82111-51171i200404-200512

main82111-51172i200512

main82111-51180i200110-200404

main82111-51181i200404-200512

main82111-51182i200512

main82111-51240i200203-200404

main82111-51241i200404-200512

main82111-51242i200512

82112WIRE, ENGINE ROOM, NO.2

main82112-51020i200404

82666EHOLDER, CONNECTOR NO.6

main82666-30610i200105

82670BLOCK ASSY, JUNCTION, NO.1

main82670-2B010i200105

82824CONNECTOR, WIRING HARNESS

main82824-12210i200105

main82824-20130i200105

main82824-48010i200105

main82824-51020i200404-200512

8401

9011906390

main90119-06390

7 parts on this diagram · 9 diagrams in section
