E
EPC Data

SIDE MOULDING

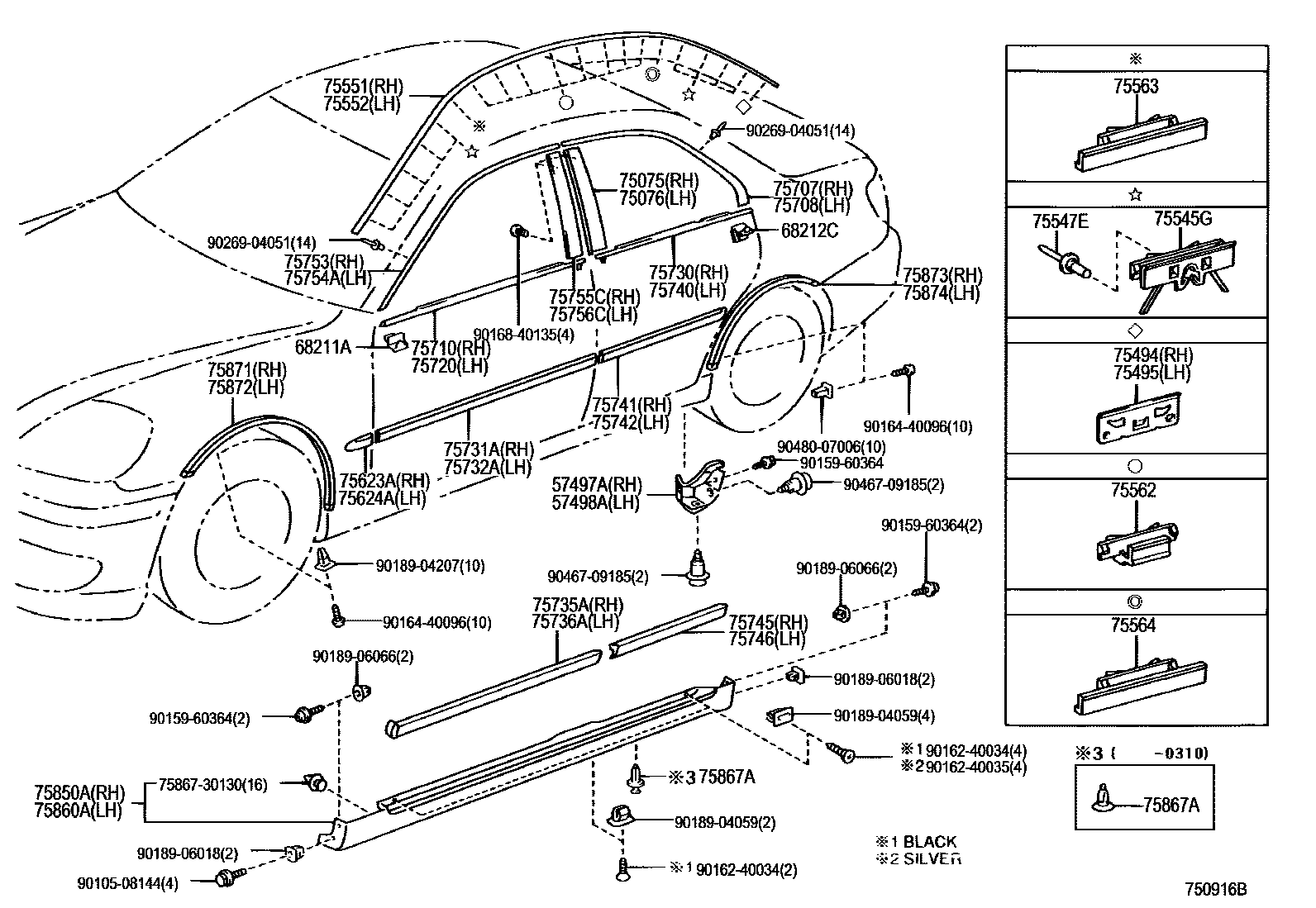

Parts diagram
57497ASHIELD, REAR FLOOR HOUSING
main57497-51030i200105
57498ASHIELD, REAR FLOOR HOUSING, NO.2
main57498-51030i200105
68211ACLIP, DOOR BELT MOULDING
main68211-30180i200105
68212CCLIP, DOOR BELT MOULDING
main68212-30040i200105
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
main75075-51010i200105-200110
sub75075-51011
main75075-51011i200110
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
main75076-51010i200105-200110
sub75076-51011
main75076-51011i200110
75494CLIP, OUTSIDE MOULDING, NO.3
main75494-51010i200105-200107
sub75494-51011
main75494-51011i200107
75495CLIP, OUTSIDE MOULDING, NO.4
main75494-51010i200105-200107
sub75494-51011
main75494-51011i200107
75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
main75545-51020i200105
75547ECLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
main75547-51020i200105-200107
main75547-51021i200107
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-51050-B0i200105-200204
DARK GRAY ME.,1E0 ,3P2 ,770 ,8P8
main75551-51050-B1i200105-200212
GRAY ME.,065 ,1C0 ,1D2 ,1F7 ,3P7 ,8N0
main75551-51050-B1i200212-200706
GRAY ME.,065 ,1C0 ,1D2 ,1F7 ,8N0
main75551-51050-B2i200205-200305
main75551-51050-B2i200205-200706
DARK GRAY ME.,202 ,210 ,3P2 ,8P8 ,8S6
main75551-51050-B2i200305-200404
main75551-51050-B2i200205-200212
DARK GRAY ME.,1E0
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-51030-B0i200105-200204
DARK GRAY ME.,1E0 ,3P2 ,770 ,8P8
main75552-51030-B1i200105-200212
GRAY ME.,065 ,1C0 ,1D2 ,1F7 ,3P7 ,8N0
main75552-51030-B1i200212-200706
GRAY ME.,065 ,1C0 ,1D2 ,1F7 ,8N0
main75552-51030-B2i200205-200305
main75552-51030-B2i200305-200404
main75552-51030-B2i200205-200706
DARK GRAY ME.,202 ,210 ,3P2 ,8P8 ,8S6
main75552-51030-B2i200205-200212
DARK GRAY ME.,1E0
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
main75561-51030i200105
75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75563-51020i200105
main75564-51020i200105
75564RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.2
main75565-51020i200105
main75566-51020i200105
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-51020-A0i200105-200706
WHITE PEARL CS.,065
sub75623-51020
main75623-51020-B0i200105-200706
SILVER ME.,1C0
sub75623-51020
main75623-51020-B1i200105-200212
DK.GRAY MC.,1E0
sub75623-51020
main75623-51020-B2i200212-200706
GRAY ME.,1D2
sub75623-51020
main75623-51020-B3i200512-200706
SILVER ME.,1F7
sub75623-51020
main75623-51020-C0i200105-200706
BLUE BLACK MC.CC.,210
sub75623-51020
main75623-51020-C0i200205-200305
sub75623-51020
main75623-51020-C0i200305-200404
sub75623-51020
main75623-51020-C2i200512-200706
BLACK,202
sub75623-51020
main75623-51020-D0i200105-200706
BORDEAUX MC.,3P2
sub75623-51020
main75623-51020-D1i200105-200212
SHELL M.M.,3P7
sub75623-51020
main75623-51020-H0i200105-200205
TURQUOISE M.M.,770
sub75623-51020
main75623-51020-J0i200105-200706
DARK BLUE MC.,8P8
sub75623-51020
main75623-51020-J1i200212-200706
BLUE ME.,8N0
sub75623-51020
main75623-51020-J2i200512-200706
DK.BLUE MC.,8S6
sub75623-51020
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-51020-A0i200105-200706
WHITE PEARL CS.,065
sub75624-51020
main75624-51020-B0i200105-200706
SILVER ME.,1C0
sub75624-51020
main75624-51020-B1i200105-200212
DK.GRAY MC.,1E0
sub75624-51020
main75624-51020-B2i200212-200706
GRAY ME.,1D2
sub75624-51020
main75624-51020-B3i200512-200706
SILVER ME.,1F7
sub75624-51020
main75624-51020-C0i200205-200305
sub75624-51020
main75624-51020-C0i200105-200706
BLUE BLACK MC.CC.,210
sub75624-51020
main75624-51020-C0i200305-200404
sub75624-51020
main75624-51020-C2i200512-200706
BLACK,202
sub75624-51020
main75624-51020-D0i200105-200706
BORDEAUX MC.,3P2
sub75624-51020
main75624-51020-D1i200105-200212
SHELL M.M.,3P7
sub75624-51020
main75624-51020-H0i200105-200205
TURQUOISE M.M.,770
sub75624-51020
main75624-51020-J0i200105-200706
DARK BLUE MC.,8P8
sub75624-51020
main75624-51020-J1i200212-200706
BLUE ME.,8N0
sub75624-51020
main75624-51020-J2i200512-200706
DK.BLUE MC.,8S6
sub75624-51020
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
main75707-51020i200105
main75707-51030i200105-200404
sub75707-51020
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
main75708-51020i200105
main75708-51030i200105-200404
sub75708-51020
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-51040i200105
main75710-51050i200105-200404
sub75710-51040
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-51040i200105
main75720-51050i200105-200404
sub75720-51040
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-51040i200105
main75730-51050i200105-200404
sub75730-51040
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-51020-A0i200105-200706
WHITE PEARL CS.,065
sub75731-51020
main75731-51020-B0i200105-200706
SILVER ME.,1C0
sub75731-51020
main75731-51020-B1i200105-200212
DK.GRAY MC.,1E0
sub75731-51020
main75731-51020-B2i200212-200706
GRAY ME.,1D2
sub75731-51020
main75731-51020-B3i200512-200706
SILVER ME.,1F7
sub75731-51020
main75731-51020-C0i200305-200404
sub75731-51020
main75731-51020-C0i200205-200305
sub75731-51020
main75731-51020-C0i200311-200706
BLUE BLACK MC.CC.,210
sub75731-51020
main75731-51020-C2i200512-200706
BLACK,202
sub75731-51020
main75731-51020-D0i200105-200706
BORDEAUX MC.,3P2
sub75731-51020
main75731-51020-D1i200105-200212
SHELL M.M.,3P7
sub75731-51020
main75731-51020-H0i200105-200205
TURQUOISE M.M.,770
sub75731-51020
main75731-51020-J0i200105-200706
DARK BLUE MC.,8P8
sub75731-51020
main75731-51020-J1i200212-200706
BLUE ME.,8N0
sub75731-51020
main75731-51020-J2i200512-200706
DK.BLUE MC.,8S6
sub75731-51020
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-51020-A0i200105-200706
WHITE PEARL CS.,065
sub75732-51020
main75732-51020-B0i200105-200706
SILVER ME.,1C0
sub75732-51020
main75732-51020-B1i200105-200212
DK.GRAY MC.,1E0
sub75732-51020
main75732-51020-B2i200212-200706
GRAY ME.,1D2
sub75732-51020
main75732-51020-B3i200512-200706
SILVER ME.,1F7
sub75732-51020
main75732-51020-C0i200205-200305
sub75732-51020
main75732-51020-C0i200305-200404
sub75732-51020
main75732-51020-C0i200311-200706
BLUE BLACK MC.CC.,210
sub75732-51020
main75732-51020-C2i200512-200706
BLACK,202
sub75732-51020
main75732-51020-D0i200105-200706
BORDEAUX MC.,3P2
sub75732-51020
main75732-51020-D1i200105-200212
SHELL M.M.,3P7
sub75732-51020
main75732-51020-H0i200105-200205
TURQUOISE M.M.,770
sub75732-51020
main75732-51020-J0i200105-200706
DARK BLUE MC.,8P8
sub75732-51020
main75732-51020-J1i200212-200706
BLUE ME.,8N0
sub75732-51020
main75732-51020-J2i200512-200706
DK.BLUE MC.,8S6
sub75732-51020
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
main75735-51020-A0i200105-200706
WHITE PEARL CS.,065
main75735-51020-B0i200105-200706
SILVER ME.,1C0
main75735-51020-B1i200105-200212
DK.GRAY MC.,1E0
main75735-51020-B2i200212-200706
GRAY ME.,1D2
main75735-51020-B3i200512-200706
SILVER ME.,1F7
main75735-51020-C0i200311-200706
BLUE BLACK MC.CC.,210
main75735-51020-C0i200205-200305
main75735-51020-C0i200305-200404
main75735-51020-C2i200512-200706
BLACK,202
main75735-51020-D0i200105-200706
BORDEAUX MC.,3P2
main75735-51020-D1i200105-200212
SHELL M.M.,3P7
main75735-51020-H0i200105-200205
TURQUOISE M.M.,770
main75735-51020-J0i200105-200706
DARK BLUE MC.,8P8
main75735-51020-J1i200212-200706
BLUE ME.,8N0
main75735-51020-J2i200512-200706
DK.BLUE MC.,8S6
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
main75736-51020-A0i200105-200706
WHITE PEARL CS.,065
main75736-51020-B0i200105-200706
SILVER ME.,1C0
main75736-51020-B1i200105-200212
DK.GRAY MC.,1E0
main75736-51020-B2i200212-200706
GRAY ME.,1D2
main75736-51020-B3i200512-200706
SILVER ME.,1F7
main75736-51020-C0i200305-200404
main75736-51020-C0i200311-200706
BLUE BLACK MC.CC.,210
main75736-51020-C0i200205-200305
main75736-51020-C2i200512-200706
BLACK,202
main75736-51020-D0i200105-200706
BORDEAUX MC.,3P2
main75736-51020-D1i200105-200212
SHELL M.M.,3P7
main75736-51020-H0i200105-200205
TURQUOISE M.M.,770
main75736-51020-J0i200105-200706
DARK BLUE MC.,8P8
main75736-51020-J1i200212-200706
BLUE ME.,8N0
main75736-51020-J2i200512-200706
DK.BLUE MC.,8S6
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-51040i200105
main75740-51050i200105-200404
sub75740-51040
75741MOULDING, REAR DOOR, OUTSIDE RH
main75741-51020-A0i200105-200706
WHITE PEARL CS.,065
sub75741-51020
main75741-51020-B0i200105-200706
SILVER ME.,1C0
sub75741-51020
main75741-51020-B1i200105-200212
DK.GRAY MC.,1E0
sub75741-51020
main75741-51020-B2i200212-200706
GRAY ME.,1D2
sub75741-51020
main75741-51020-B3i200512-200706
SILVER ME.,1F7
sub75741-51020
main75741-51020-C0i200205-200305
sub75741-51020
main75741-51020-C0i200305-200404
sub75741-51020
main75741-51020-C0i200311-200706
BLUE BLACK MC.CC.,210
sub75741-51020
main75741-51020-C2i200512-200706
BLACK,202
sub75741-51020
main75741-51020-D0i200105-200706
BORDEAUX MC.,3P2
sub75741-51020
main75741-51020-D1i200105-200212
SHELL M.M.,3P7
sub75741-51020
main75741-51020-H0i200105-200205
TURQUOISE M.M.,770
sub75741-51020
main75741-51020-J0i200105-200706
DARK BLUE MC.,8P8
sub75741-51020
main75741-51020-J1i200212-200706
BLUE ME.,8N0
sub75741-51020
main75741-51020-J2i200512-200706
DK.BLUE MC.,8S6
sub75741-51020
75742MOULDING, REAR DOOR, OUTSIDE LH
main75742-51020-A0i200105-200706
WHITE PEARL CS.,065
sub75742-51020
main75742-51020-B0i200105-200706
SILVER ME.,1C0
sub75742-51020
main75742-51020-B1i200105-200212
DK.GRAY MC.,1E0
sub75742-51020
main75742-51020-B2i200212-200706
GRAY ME.,1D2
sub75742-51020
main75742-51020-B3i200512-200706
SILVER ME.,1F7
sub75742-51020
main75742-51020-C0i200311-200706
BLUE BLACK MC.CC.,210
sub75742-51020
main75742-51020-C0i200205-200305
sub75742-51020
main75742-51020-C0i200305-200404
sub75742-51020
main75742-51020-C2i200512-200706
BLACK,202
sub75742-51020
main75742-51020-D0i200105-200706
BORDEAUX MC.,3P2
sub75742-51020
main75742-51020-D1i200105-200212
SHELL M.M.,3P7
sub75742-51020
main75742-51020-H0i200105-200205
TURQUOISE M.M.,770
sub75742-51020
main75742-51020-J0i200105-200706
DARK BLUE MC.,8P8
sub75742-51020
main75742-51020-J1i200212-200706
BLUE ME.,8N0
sub75742-51020
main75742-51020-J2i200512-200706
DK.BLUE MC.,8S6
sub75742-51020
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
main75745-51020-A0i200105-200706
WHITE PEARL CS.,065
main75745-51020-B0i200105-200706
SILVER ME.,1C0
main75745-51020-B1i200105-200212
DK.GRAY MC.,1E0
main75745-51020-B2i200212-200706
GRAY ME.,1D2
main75745-51020-B3i200512-200706
SILVER ME.,1F7
main75745-51020-C0i200311-200706
BLUE BLACK MC.CC.,210
main75745-51020-C0i200205-200305
main75745-51020-C0i200305-200404
main75745-51020-C2i200512-200706
BLACK,202
main75745-51020-D0i200105-200706
BORDEAUX MC.,3P2
main75745-51020-D1i200105-200212
SHELL M.M.,3P7
main75745-51020-H0i200105-200205
TURQUOISE M.M.,770
main75745-51020-J0i200105-200706
DARK BLUE MC.,8P8
main75745-51020-J1i200212-200706
BLUE ME.,8N0
main75745-51020-J2i200512-200706
DK.BLUE MC.,8S6
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
main75746-51020-A0i200105-200706
WHITE PEARL CS.,065
main75746-51020-B0i200105-200706
SILVER ME.,1C0
main75746-51020-B1i200105-200212
DK.GRAY MC.,1E0
main75746-51020-B2i200212-200706
GRAY ME.,1D2
main75746-51020-B3i200512-200706
SILVER ME.,1F7
main75746-51020-C0i200305-200404
main75746-51020-C0i200205-200305
main75746-51020-C0i200311-200706
BLUE BLACK MC.CC.,210
main75746-51020-C2i200512-200706
BLACK,202
main75746-51020-D0i200105-200706
BORDEAUX MC.,3P2
main75746-51020-D1i200105-200212
SHELL M.M.,3P7
main75746-51020-H0i200105-200205
TURQUOISE M.M.,770
main75746-51020-J0i200105-200706
DARK BLUE MC.,8P8
main75746-51020-J1i200212-200706
BLUE ME.,8N0
main75746-51020-J2i200512-200706
DK.BLUE MC.,8S6
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
main75753-51040i200105
main75753-51050i200105-200404
sub75753-51040
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
main75754-51040i200105
main75754-51050i200105-200404
sub75754-51040
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-51010i200105-200110
sub75755-51011
main75755-51011i200110
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-51010i200105-200110
sub75756-51011
main75756-51011i200110
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
main75850-51030-A0i200105-200706
WHITE PEARL CS.,065
main75850-51030-B0i200105-200706
SILVER ME.,1C0
main75850-51030-B1i200105-200212
DK.GRAY MC.,1E0
main75850-51030-B2i200212-200706
GRAY ME.,1D2
main75850-51030-B3i200512-200706
SILVER ME.,1F7
main75850-51030-C0i200105-200706
BLUE BLACK MC.CC.,210
main75850-51030-C0i200205-200305
main75850-51030-C0i200305-200404
main75850-51030-C2i200512-200706
BLACK,202
main75850-51030-D0i200105-200706
BORDEAUX MC.,3P2
main75850-51030-D1i200105-200212
SHELL M.M.,3P7
main75850-51030-H0i200105-200205
TURQUOISE M.M.,770
main75850-51030-J0i200105-200706
DARK BLUE MC.,8P8
main75850-51030-J1i200212-200706
BLUE ME.,8N0
main75850-51030-J2i200512-200706
DK.BLUE MC.,8S6
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
main75860-51030-A0i200105-200706
WHITE PEARL CS.,065
sub75860-51900
main75860-51030-B0i200105-200706
SILVER ME.,1C0
sub75860-51900
main75860-51030-B1i200105-200212
DK.GRAY MC.,1E0
sub75860-51900
main75860-51030-B2i200212-200706
GRAY ME.,1D2
sub75860-51900
main75860-51030-B3i200512-200706
SILVER ME.,1F7
sub75860-51900
main75860-51030-C0i200105-200706
BLUE BLACK MC.CC.,210
sub75860-51900
main75860-51030-C0i200205-200305
sub75860-51900
main75860-51030-C0i200305-200404
sub75860-51900
main75860-51030-C2i200512-200706
BLACK,202
sub75860-51900
main75860-51030-D0i200105-200706
BORDEAUX MC.,3P2
sub75860-51900
main75860-51030-D1i200105-200212
SHELL M.M.,3P7
sub75860-51900
main75860-51030-H0i200105-200205
TURQUOISE M.M.,770
sub75860-51900
main75860-51030-J0i200105-200706
DARK BLUE MC.,8P8
sub75860-51900
main75860-51030-J1i200212-200706
BLUE ME.,8N0
sub75860-51900
main75860-51030-J2i200512-200706
DK.BLUE MC.,8S6
sub75860-51900
75867ACLIP, ROCKER PANEL MOULDING
main75867-30110i200105-200310
main75867-30120i200310
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
main75871-51030i200105
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
main75872-51030i200105
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
main75873-51030i200105
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
main75874-51030i200105
7586730130MOULDING, FRONT PANEL
main75867-30130
9010508144
main90105-08144
9015960364
main90159-60364
9016240034
main90162-40034
9016240035
main90162-40035
9016440096
main90164-40096
9016840135
main90168-40135
9018904059
main90189-04059
9018904207
main90189-04207
9018906018
main90189-06018
9018906066
main90189-06066
9026904051
main90269-04051
9046709185
main90467-09185
9048007006
main90480-07006

56 parts on this diagram · 1 diagram in section

SIDE MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
