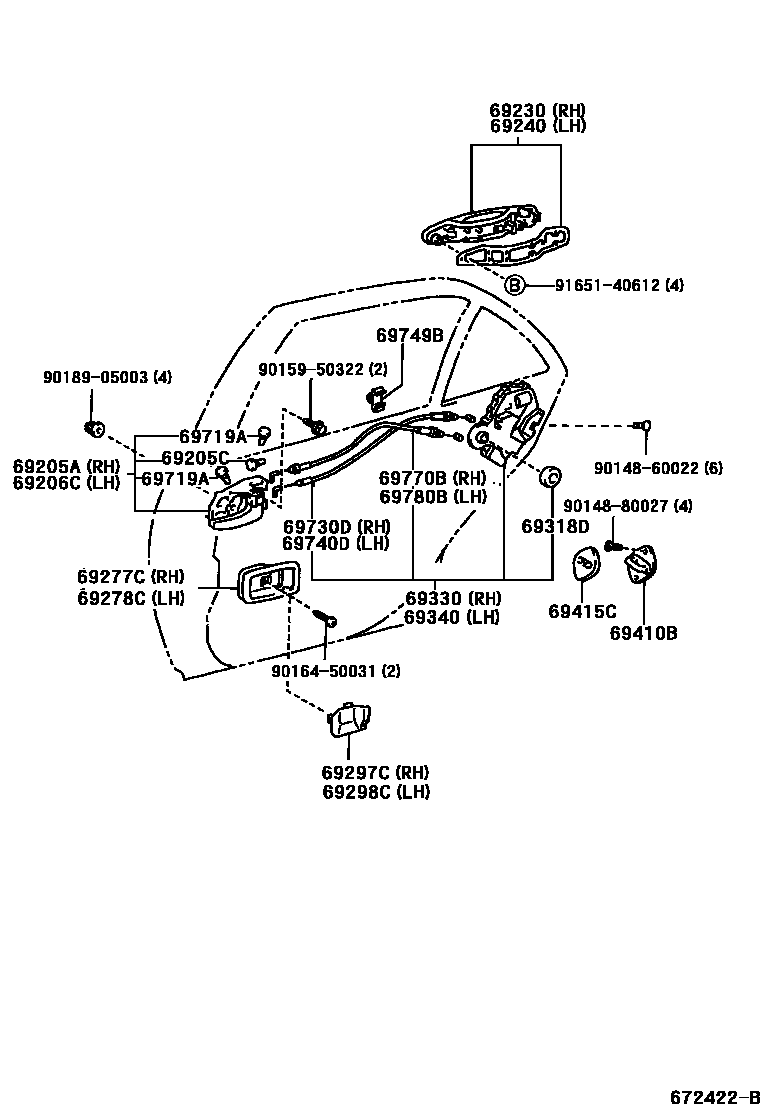

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69297CBEZEL, DOOR INSIDE HANDLE, NO.2 RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69298CBEZEL, DOOR INSIDE HANDLE, NO.2 LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69719ACUSHION, DOOR LOCK CONTROL
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860022
main90148-60022
9014880027
main90148-80027
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9165140612
main91651-40612
26 parts on this diagram · 1 diagram in section
