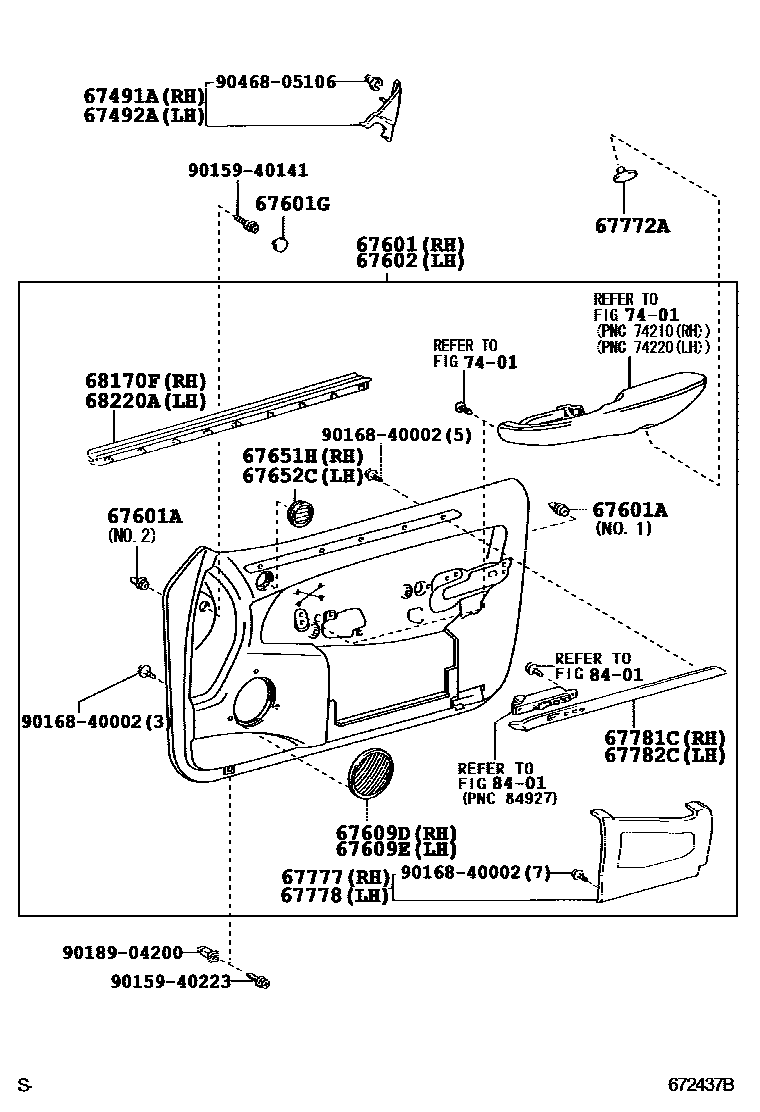

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-51020iJCG1#200105

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-51020iJCG1#200105

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-51200-A0iJCG10,15200105-200301

sub67610-51201

main67610-51200-C0iJCG10,15200105-200301

sub67610-51201

main67610-51200-C1iJCG10,15200205-200305

sub67610-51201

main67610-51201-A0iJCG10,15200301-200706

sub67610-51201

main67610-51201-C0iJCG10,15200301-200404

sub67610-51201

main67610-51201-C1iJCG1#200305-200404

sub67610-51201

main67610-51201-C3iJCG10,15200404-200706

sub67610-51201

main67610-51220-A0iJCG10,11200105-200301

sub67610-51221

main67610-51220-C0iJCG15200105-200301

sub67610-51221

main67610-51220-C1iJCG10,15200205-200305

sub67610-51221

main67610-51221-A0iJCG1#200301-200706

sub67610-51221

main67610-51221-C0iJCG1#200301-200404

sub67610-51221

main67610-51221-C1iJCG1#200305-200404

sub67610-51221

main67610-51221-C3iJCG1#200404-200706

sub67610-51221

main67610-51230-A1iJCG10,15200105-200301

sub67610-51231

main67610-51230-B0iJCG10,15200105-200301

sub67610-51231

main67610-51230-C1iJCG10,15200105-200301

sub67610-51231

main67610-51231-A0iJCG10,15200301-200706

main67610-51231-B0iJCG10,15200301-200706

main67610-51231-C0iJCG10,15200301-200404

main67610-51231-C1iJCG10,15200404-200706

main67610-51240-A1iJCG15200105-200301

sub67610-51241

main67610-51240-B0iJCG10,11200105-200301

sub67610-51241

main67610-51240-C1iJCG15200105-200301

sub67610-51241

main67610-51241-A0iJCG1#200301-200706

main67610-51241-B0iJCG1#200301-200706

main67610-51241-C0iJCG1#200301-200404

main67610-51241-C1iJCG1#200404-200706

main67610-51310-C0iJCG10,15200404-200512

main67610-51320-C0iJCG1#200404-200512

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-09203iJCG1#200105

main90467-09206iJCG1#200105

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-A1iJCG1#200105-200706

IVORY,TRIM0#

sub90950-01800

main90950-01800-C0iJCG1#200105-200706

BLACK,TRIM2#

sub90950-01800

main90950-01800-P2iJCG1#200105-200706

LT.GRAY,TRIM1#

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-51110-A0iJCG1#200105-200301

sub67620-51111

main67620-51110-C0iJCG1#200105-200301

sub67620-51111

main67620-51110-C1iJCG10,15200205-200305

sub67620-51111

main67620-51111-A0iJCG1#200301-200706

sub67620-51111

main67620-51111-C0iJCG1#200301-200404

sub67620-51111

main67620-51111-C3iJCG1#200404-200706

sub67620-51111

main67620-51130-A1iJCG1#200105-200301

sub67620-51131

main67620-51130-B0iJCG1#200105-200301

sub67620-51131

main67620-51130-C1iJCG1#200105-200301

sub67620-51131

main67620-51131-A0iJCG1#200301-200706

main67620-51131-B0iJCG1#200301-200706

main67620-51131-C0iJCG1#200301-200404

main67620-51131-C1iJCG1#200404-200706

main67620-51180-C0iJCG1#200404-200512

67609DGRILLE SUB-ASSY, FRONT DOOR SPEAKER, RH

main67609-51030-A0iJCG1#200105-200706

IVORY,TRIM0#

main67609-51030-B0iJCG1#200105-200706

LT. GRAY,TRIM1#

main67609-51030-C0iJCG1#200105-200706

BLACK,TRIM2#

67609EGRILLE SUB-ASSY, FRONT DOOR SPEAKER, LH

main67709-51030-A0iJCG1#200105-200706

IVORY,TRIM0#

main67709-51030-B0iJCG1#200105-200706

LT. GRAY,TRIM1#

main67709-51030-C0iJCG1#200105-200706

BLACK,TRIM2#

67651HGRILLE, SPEAKER DOOR, RH

main67609-51040-A0iJCG1#200105-200706

IVORY,TRIM0#

main67609-51040-B0iJCG1#200105-200706

LT. GRAY,TRIM1#

main67609-51040-C0iJCG1#200105-200706

BLACK,TRIM2#

67652CGRILLE, SPEAKER DOOR, LH

main67709-51040-A0iJCG1#200105-200706

IVORY,TRIM0#

main67709-51040-B0iJCG1#200105-200706

LT. GRAY,TRIM1#

main67709-51040-C0iJCG1#200105-200706

BLACK,TRIM2#

67772ACAP, FRONT DOOR TRIM RETAINER

main67772-51010-A0iJCG1#200105-200706

IVORY,TRIM0#

main67772-51010-B0iJCG1#200105-200706

LT.GRAY,TRIM1#

main67772-51010-C0iJCG1#200105-200706

BLACK,TRIM2#

67777POCKET, FRONT DOOR TRIM, RH

main67770-51010-A0iJCG1#200105-200301

IVORY,TRIM0#

sub67770-51011

main67770-51010-B0iJCG1#200105-200301

LT.GRAY,TRIM1#

sub67770-51011

main67770-51010-C0iJCG1#200105-200301

BLACK,TRIM2#

sub67770-51011

main67770-51011-A0iJCG1#200301-200706

IVORY,TRIM0#

main67770-51011-B0iJCG1#200301-200706

LT.GRAY,TRIM1#

main67770-51011-C0iJCG1#200301-200706

BLACK,TRIM2#

67778POCKET, FRONT DOOR TRIM, LH

main67780-51010-A0iJCG1#200105-200301

IVORY,TRIM0#

sub67780-51011

main67780-51010-B0iJCG1#200105-200301

LT.GRAY,TRIM1#

sub67780-51011

main67780-51010-C0iJCG1#200105-200301

BLACK,TRIM2#

sub67780-51011

main67780-51011-A0iJCG1#200301-200706

IVORY,TRIM0#

main67780-51011-B0iJCG1#200301-200706

LT.GRAY,TRIM1#

main67780-51011-C0iJCG1#200301-200706

BLACK,TRIM2#

67781CORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH

main67781-51080-B0iJCG10,15200205-200305

main67781-51080-B0iJCG10,15200105-200706

GRAY,TRIM1#,21

main67781-51080-D0iJCG10,15200105-200404

RED,TRIM2#

main67781-51080-E0iJCG1#200305-200404

main67781-51080-E0iJCG10,15200105-200706

BROWN,TRIM0#

main67781-51090-B0iJCG15200105-200709

main67781-51090-B0iJCG10,15200205-200305

main67781-51090-D0iJCG15200105-200404

main67781-51090-E0iJCG15200105-200709

main67781-51090-E0iJCG1#200305-200404

67782CORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH

main67782-51050-B0iJCG10,15200205-200305

main67782-51050-B0iJCG1#200105-200706

GRAY,TRIM1#

main67782-51050-D0iJCG1#200105-200706

RED,TRIM2#

main67782-51050-E0iJCG1#200305-200404

main67782-51050-E0iJCG1#200105-200706

BROWN,TRIM0#

68170FWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER RH

main68170-51040iJCG1#200105-200706

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-51040iJCG1#200105-200706

7401

8401

9015940141

main90159-40141

9015940223

main90159-40223

9016840002

main90168-40002

9018904200

main90189-04200

9046805106

main90468-05106

24 parts on this diagram · 3 diagrams in section
