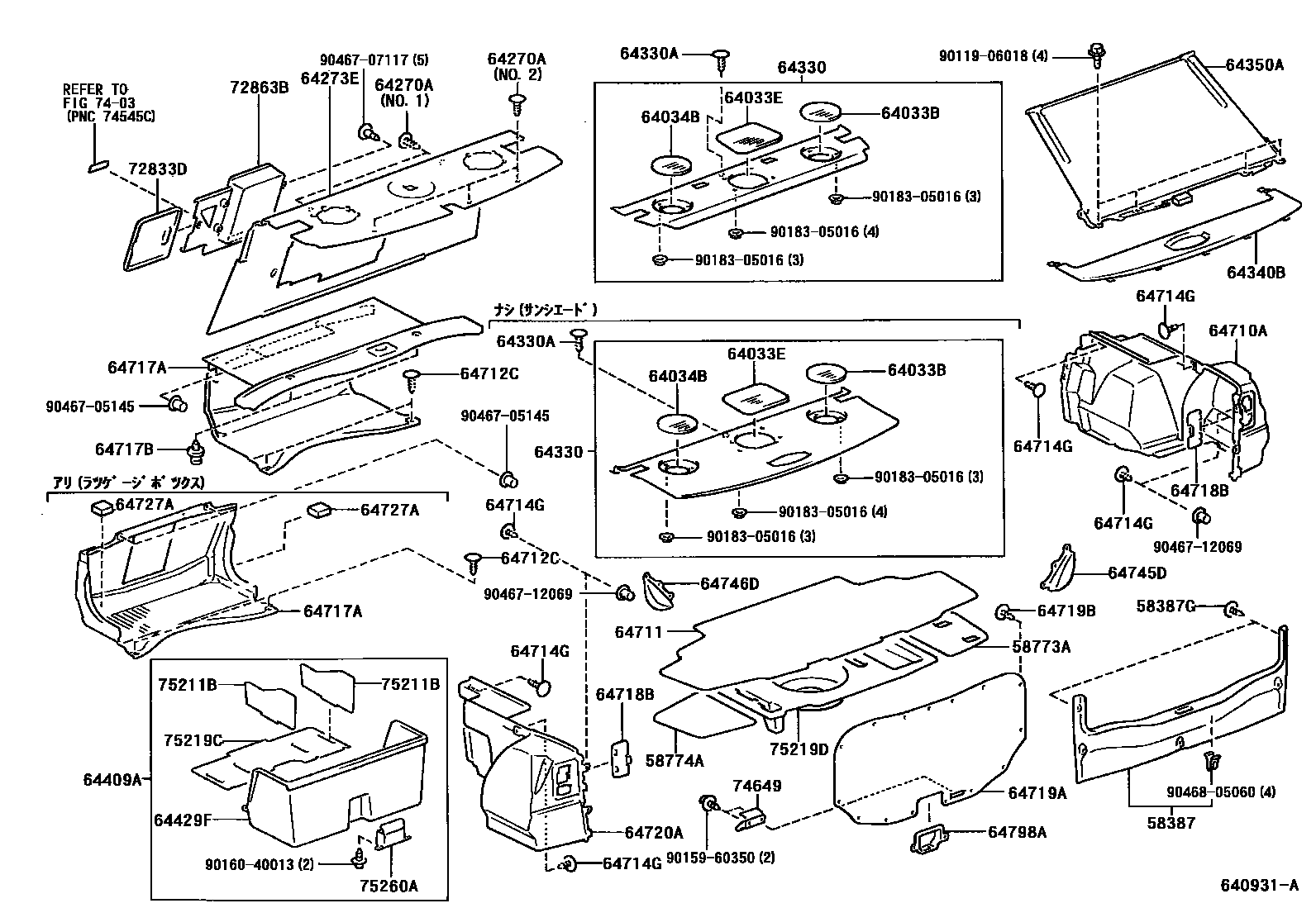

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58038-51010-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

sub90467-08186

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58703-51030iJCG10,15200105-200512

main58703-51040iJCG1#200105

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58704-51030iJCG1#200105

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-51020-A0iJCG1#200105-200706

IVORY,TRIM0#

main64033-51020-B0iJCG1#200105-200706

LT. GRAY,TRIM1#

main64033-51020-C0iJCG1#200105-200706

BLACK,TRIM2#

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64035-51010-A0iJCG1#200105-200706

IVORY,TRIM0#

main64035-51010-B0iJCG1#200105-200706

LT. GRAY,TRIM1#

main64035-51010-C0iJCG1#200105-200706

BLACK,TRIM2#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-51020-A0iJCG1#200105-200706

IVORY,TRIM0#

main64033-51020-B0iJCG1#200105-200706

LT. GRAY,TRIM1#

main64033-51020-C0iJCG1#200105-200706

BLACK,TRIM2#

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-08186-C0iJCG11200105-200404

BLACK,TRIM0#,1#,2#

sub90467-08186

main90467-08186-C0iJCG1#200105

sub90467-08186

main90467-08188iJCG1#200105

64273EPAD, ROOM PARTITION

main64273-51010iJCG1#200105

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-51030-A0iJCG10,15200105-200706

IVORY,TRIM0#

main64330-51030-B0iJCG10,15200105-200404

LT.GRAY,TRIM1#

main64330-51030-C0iJCG10,15200105-200706

BLACK,TRIM2#

main64330-51040-A0iJCG10,15200105-200401

main64330-51040-A0iJCG11200105-200401

IVORY,TRIM0#

main64330-51040-B0iJCG10,15200105-200401

main64330-51040-C0iJCG11200105-200401

main64330-51040-C0iJCG11200105-200401

BLACK,TRIM2#

main64330-51050-A0iJCG10,15200105-200706

main64330-51050-B0iJCG10,15200105-200706

main64330-51050-C0iJCG10,15200105-200706

main64330-51060-A0iJCG1#200105-200706

main64330-51060-B0iJCG1#200105-200706

main64330-51060-C0iJCG1#200105-200706

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05020-A0iJCG1#200105-200706

IVORY,TRIM0#,1#,2#

sub90467-05020

sub90467-05027

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-51010-A0iJCG1#200105-200706

IVORY,TRIM0#

main64340-51010-B0iJCG1#200105-200706

LT.GRAY,TRIM1#

main64340-51010-C0iJCG1#200105-200706

BLACK,TRIM2#

64350ASHADE ASSY, REAR WINDOW

main64350-51010iJCG1#200105

64409ABOX ASSY, LUGGAGE COMPARTMENT TRIM

main64409-22020iJCG1#200105

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64429-22010iJCG1#200105

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-51030-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-51030-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

sub90467-08186

64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)

main90467-08186-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

sub90467-08186

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-51030-C0iJCG1#200105-200706

main64075-51040-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-09145-C0iJCG1#200105-200106

BLACK,TRIM0#,1#,2#

sub90467-09145

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-30080-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-51040-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

sub90467-08186

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-51030-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64733-51010iJCG1#200105

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-51010-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-51010-C0iJCG1#200105-200706

BLACK,TRIM0#,1#,2#

64798ACOVER, LUGGAGE COMPARTMENT DOOR LOCK

main64798-51010iJCG1#200105

72833DDOOR, REAR SEAT CENTER ARMREST

main72833-22050-A0iJCG1#200105-200706

IVORY,TRIM0#

sub72833-22050

main72833-22050-B1iJCG1#200105-200706

LT.GRAY,TRIM1#

sub72833-22050

main72833-22050-C0iJCG1#200105-200706

BLACK,TRIM2#

sub72833-22050

72863BBOX, REAR SEAT CENTER ARMREST

main72863-22010iJCG1#200105

7403

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010iJCG1#200105

75211BPANEL, TOOL BOX

main75211-22010iJCG1#200105

75219CCOVER, TOOL BOX

main75219-22010iJCG1#200105

75219DBOARD, TOOL BOX

main75219-51010iJCG1#200105

75260ALOCK ASSY, TOOL BOX

main75260-22010iJCG1#200105

9011906018

main90119-06018

9015960350

main90159-60350

9016040013

main90160-40013

9018305016

main90183-05016

9046705145

main90467-05145

9046707117

main90467-07117

9046712069

main90467-12069

9046805060

main90468-05060

45 parts on this diagram · 1 diagram in section
