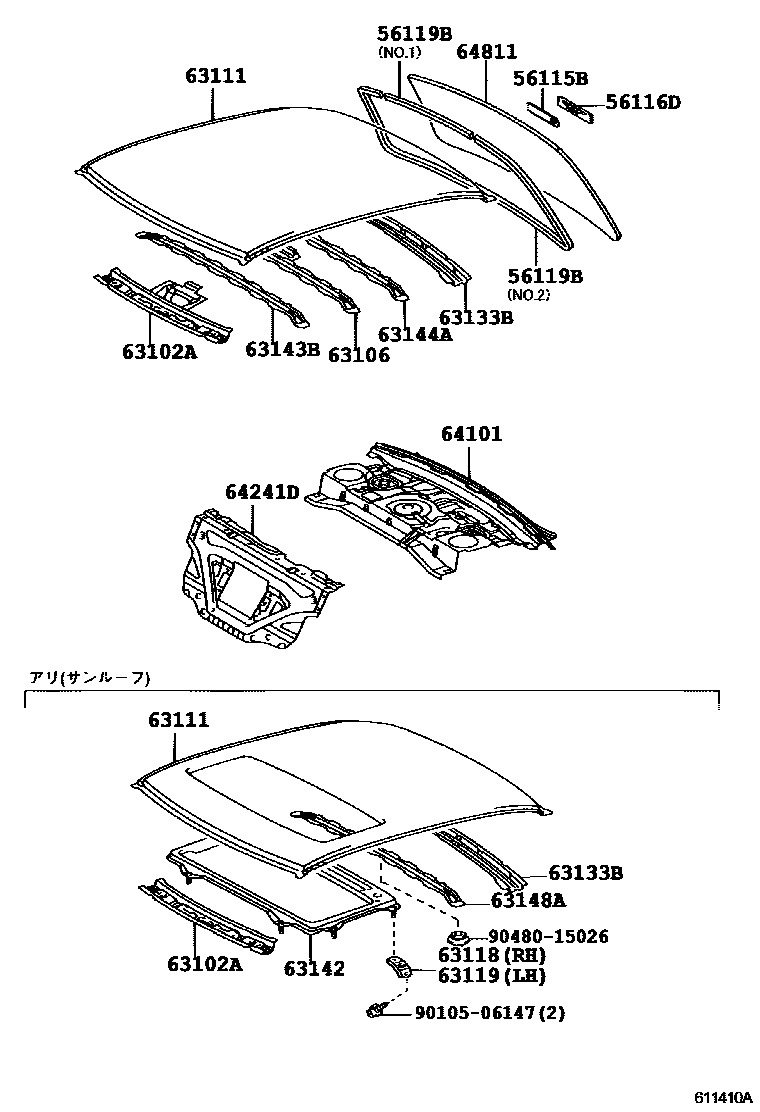

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(���-�)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100iJCG1#200105

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iJCG1#200105

56119BDAM, BACK WINDOW GLASS ADHESIVE

main56117-44030iJCG1#200105-200706

main64813-52010iJCG1#200105-200706

sub56117-50140

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-51030iJCG1#200105-200706

main63102-51040iJCG1#200105-200706

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-51030iJCG1#200105

63111PANEL, ROOF

main63111-51030iJCG1#200105

main63111-51040iJCG1#200105

main63111-51050iJCG1#200105-200507

main63111-51060iJCG1#200105-200507

63118SUPPORT, ROOF PANEL, RH

main63118-51010iJCG1#200105

63119SUPPORT, ROOF PANEL, LH

main63118-51010iJCG1#200105

63133BFRAME, BACK WINDOW

main63133-51030iJCG1#200105-200706

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-22070iJCG1#200105

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-51030iJCG1#200105

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-51030iJCG1#200105

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-51030iJCG1#200105

64101PANEL SUB-ASSY, UPPER BACK

main64101-51040iJCG10200105-200107

sub64101-51041

main64101-51041iJCG11200404-200706

main64101-51041iJCG10,15200107-200706

main64101-51050iJCG1#200105-200107

sub64101-51051

main64101-51051iJCG1#200107-200706

64241DPANEL, ROOM PARTITION

main64241-51030iJCG1#200105-200706

64811GLASS, BACK WINDOW

main64811-51060iJCG1#200105-200512

main64811-51060iJCG10,15200512

main64811-51070iJCG1#200105

9010506147

main90105-06147

9048015026

main90480-15026

18 parts on this diagram · 2 diagrams in section
