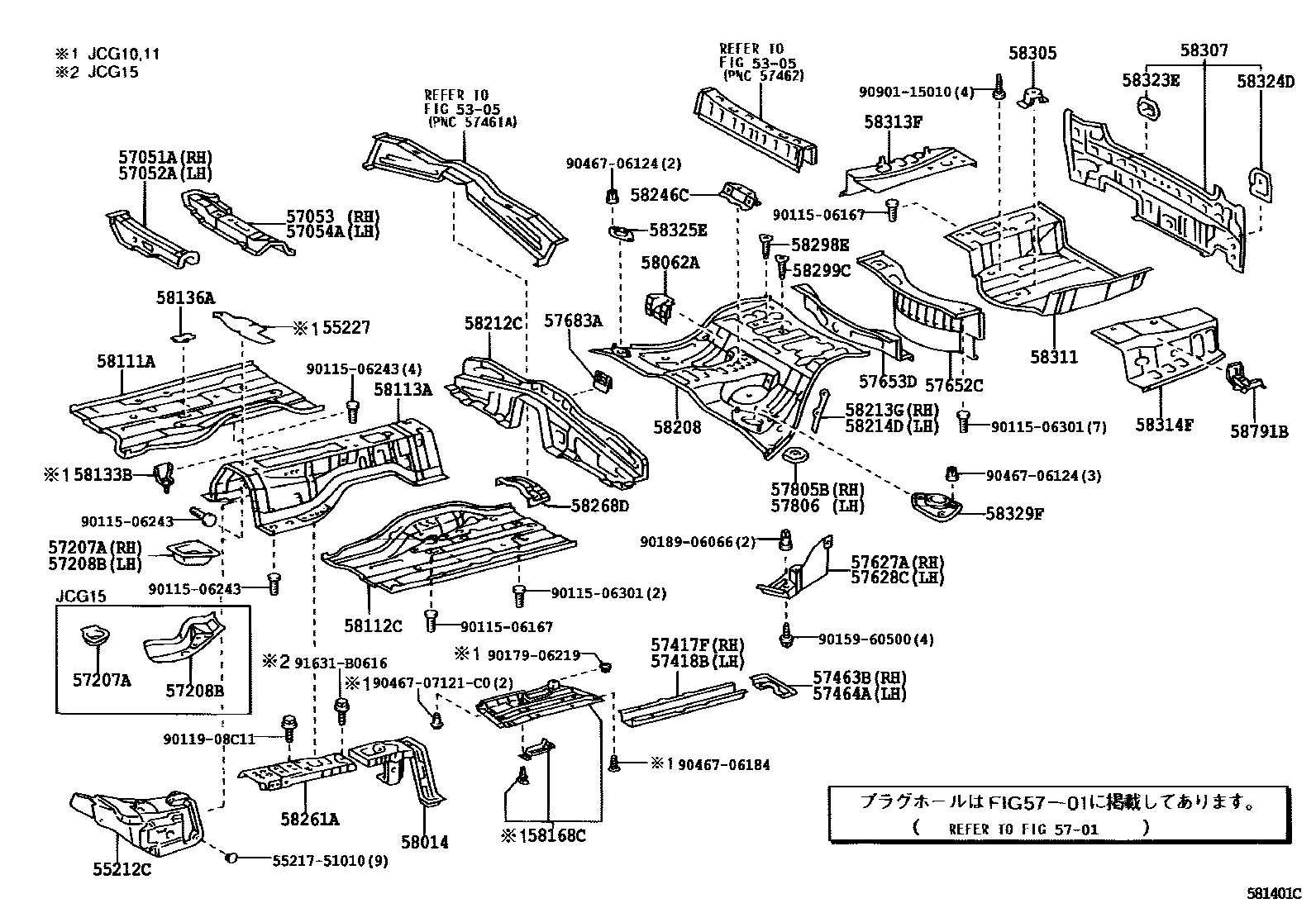

FLOOR PAN & LOWER BACK PANEL
5305
55212CSILENCER, FRONT PANEL, LOWER
55227SHEET, DASH PANEL INSULATOR, NO.6
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57627ACOVER, REAR FLOOR SIDE MEMBER, RH
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
57683ABRACKET, FUEL TANK MOUNTING, NO.1
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136ACOVER, FRONT FLOOR SERVICE HOLE
58168CCOVER, FRONT FLOOR, CENTER LH
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH
58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58268DREINFORCEMENT, PARKING BRAKE CABLE, NO.3
58298EBRACKET, HOT AIR INTAKE, NO.1
58299CBRACKET, HOT AIR INTAKE, NO.2
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58791BCARRIER, JACK
5521751010STRIP, DASH PANEL SILENCER FINISH
main55217-51010
9011506167
main90115-06167
9011506243
main90115-06243
9011506301
main90115-06301
9011908C11
main90119-08C11
9015960500
main90159-60500
9017906219
main90179-06219
9018906066
main90189-06066
9046706124
main90467-06124
9046706184
main90467-06184
9046707121C0
main90467-07121C0
9090115010
main90901-15010
91631B0616
main91631-B0616
61 parts on this diagram · 1 diagram in section
