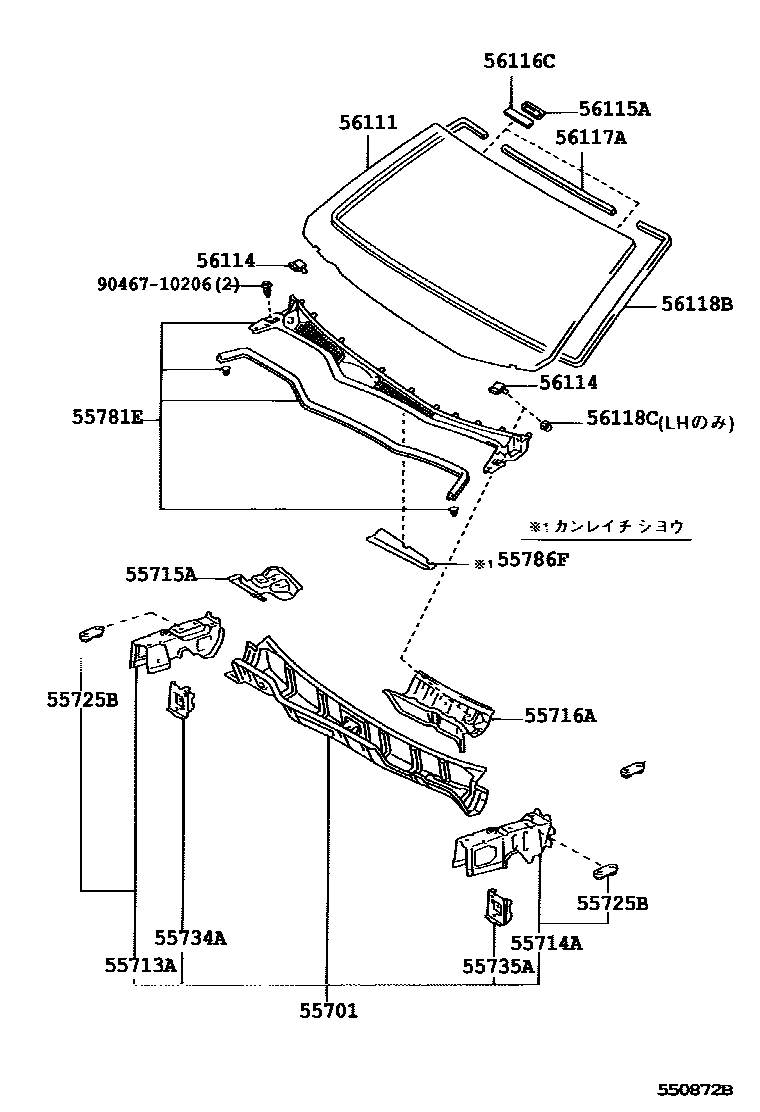

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-51070iJCG1#200105-200404

sub55700-51072

main55700-51072iJCG1#200404-200706

55713APANEL, COWL TOP SIDE, RH

main55713-51901iJCG1#200105-200404

sub55713-51903

main55713-51903iJCG1#200404

55714APANEL, COWL TOP SIDE, LH

main55714-51901iJCG1#200105

55715ABRACE, COWL TOP TO APRON, RH

main55715-51020iJCG1#200105

55716ABRACE, COWL TOP TO APRON, LH

main55716-51020iJCG1#200105

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020iJCG1#200106

55734APLATE, WATER GUARD, RH

main55734-51020iJCG1#200105

55735APLATE, WATER GUARD, LH

main55735-51020iJCG1#200105

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-51050iJCG1#200105-200404

sub55708-51051

main55708-51051iJCG1#200404

55786FNET, COWL TOP VENTILATOR LOUVER

main55786-51020iJCG1#200105

56111GLASS, WINDSHIELD

main56111-51020iJCG1#200105-200706

main56111-51030iJCG1#200105-200706

56114RETAINER, WINDSHIELD GLASS

main56114-50020iJCG1#200105

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iJCG1#200105

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iJCG1#200105

56117ADAM, WINDOW GLASS ADHESIVE

main64813-52010iJCG1#200105-200706

sub56117-50140

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-44030iJCG1#200303

main56117-51020iJCG1#200105-200303

sub56117-44030

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iJCG1#200105

9046710206

main90467-10206

18 parts on this diagram · 1 diagram in section
