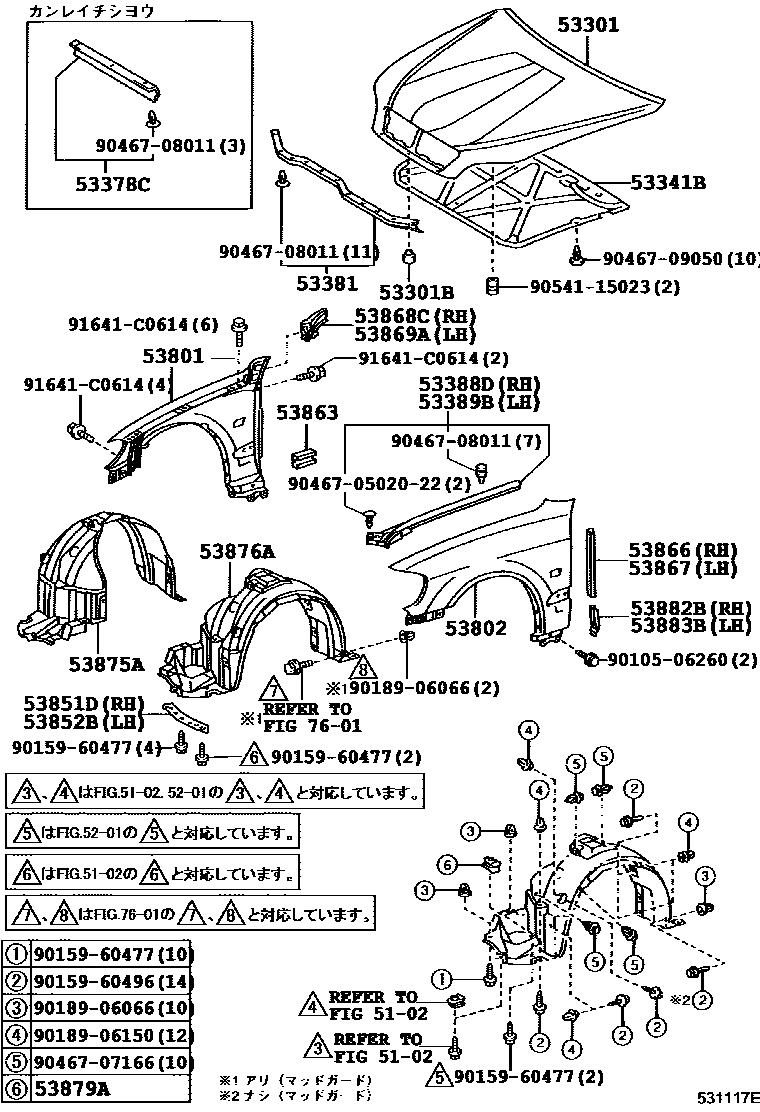

HOOD & FRONT FENDER

5102

53301HOOD SUB-ASSY

main53301-51030iJCG1#200105-200404

sub53301-51031

main53301-51031iJCG1#200404-200706

53301BCUSHION, HOOD BUMPER

main53384-51010iJCG1#200105

53341BINSULATOR, HOOD

main53341-51020iJCG1#200105-200404

sub53341-51021

main53341-51021iJCG1#200404

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-51010iJCG1#200105

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-51030iJCG1#200105

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-51031iJCG1#200105-200508

sub53388-51032

main53388-51032iJCG1#200509

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-51031iJCG1#200105-200508

sub53389-51032

main53389-51032iJCG1#200509

53801FENDER SUB-ASSY, FRONT RH

main53801-51050iJCG1#200105-200706

53802FENDER SUB-ASSY, FRONT LH

main53802-51050iJCG1#200105-200706

53851DPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-30020iJCG1#200105

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-30020iJCG1#200105

53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH

main53863-51010iJCG1#200105

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-51010iJCG1#200105

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-51010iJCG1#200105

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-51010iJCG1#200105

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-51010iJCG1#200105

53875ALINER, FRONT FENDER, RH

main53875-51050iJCG1#200105

53876ALINER, FRONT FENDER, LH

main53876-51050iJCG1#200105

53879ARETAINER, FRONT FENDER LINER

main53879-17020iJCG1#200105

53882BSEAL, FRONT FENDER, RH

main53882-51010iJCG1#200105

53883BSEAL, FRONT FENDER, LH

main53883-51010iJCG1#200105

7601

9010506260

main90105-06260

9015960477

main90159-60477

9015960496

main90159-60496

9018906066

main90189-06066

9018906150

main90189-06150

904670502022

main90467-0502022

9046707166

main90467-07166

9046708011

main90467-08011

9046709050

main90467-09050

9054115023

main90541-15023

91641C0614

main91641-C0614

34 parts on this diagram · 1 diagram in section
