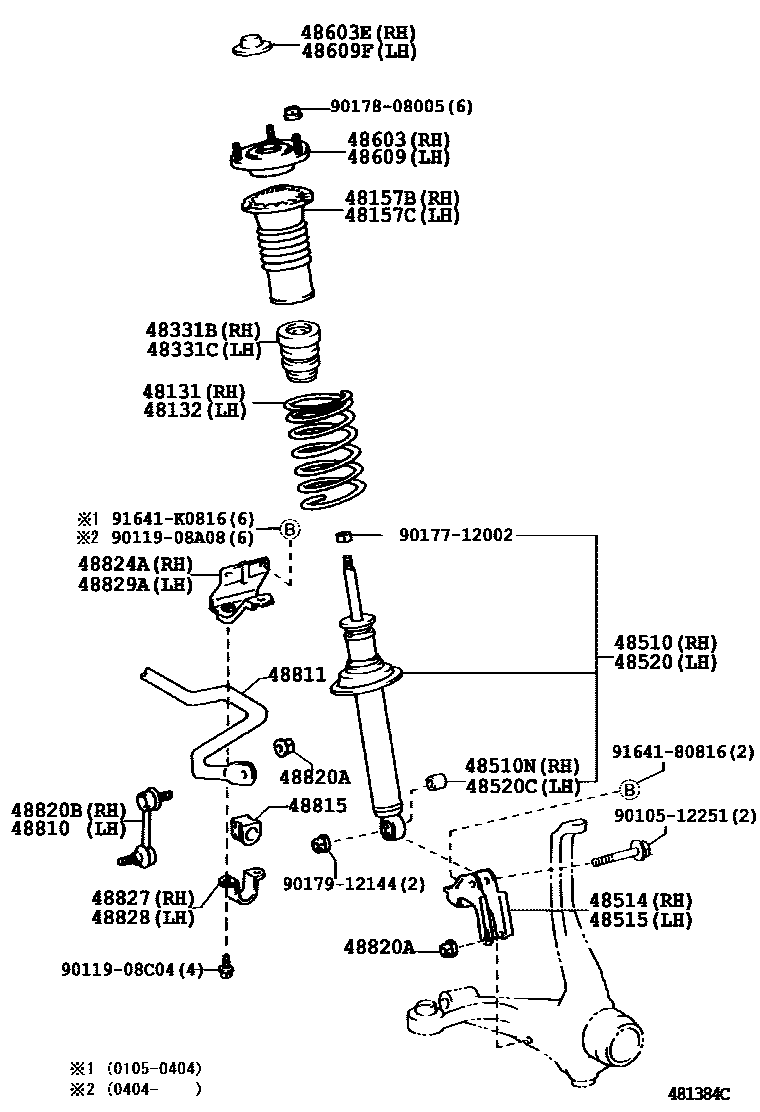

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-51100iJCG10,11200105-200205

main48131-51110iJCG15200110

main48131-51120iJCG10,11200205

48132SPRING, FRONT COIL, LH

main48131-51100iJCG10,11200105-200205

main48131-51110iJCG15200110

main48131-51120iJCG10,11200205

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-22040iJCG10,11200105

main48157-22050iJCG15200110

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-22040iJCG10,11200105

main48157-22050iJCG15200110

48331BBUMPER, FRONT SPRING, RH

main48331-30130iJCG1#200105

48331CBUMPER, FRONT SPRING, LH

main48331-30130iJCG1#200105

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-59445iJCG10,11200105-200205

sub48510-59535

main48510-59525iJCG15200110

sub48510-59515

main48510-59655iJCG10,11200205

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90389-12016iJCG10,11200105

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-22010iJCG10,11200105

main48514-22020iJCG15200110

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-22010iJCG10,11200105

main48515-22020iJCG15200110

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-59445iJCG10,11200105-200205

sub48510-59535

main48510-59655iJCG10,11200205

main48520-59045iJCG15200110

sub48520-59035

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90389-12016iJCG10,11200105

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-22130iJCG15200110

main48680-30160iJCG10,11200105

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

main90950-01659iJCG1#200105

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-22160iJCG15200110

main48680-30160iJCG10,11200105

48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)

main90950-01659iJCG1#200105

48810LINK ASSY, FRONT STABILIZER, LH

main48810-22041iJCG15200110

main48820-22041iJCG10,11200105

48811BAR, STABILIZER, FRONT

main48811-30580iJCG15200110

main48811-53010iJCG10,11200105

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-22250iJCG15200110

main48815-53010iJCG10,11200105

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iJCG10,11200105

main90179-12047iJCG10,11200105

main90179-12047iJCG15200110

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-22041iJCG10,11200105

main48820-22051iJCG15200110

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30020iJCG10,11200105-200111

sub48809-30021

main48809-30021iJCG10,11200111

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-22060iJCG15200110

main48824-22090iJCG10,11200105

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-22060iJCG15200110

main48824-22090iJCG10,11200105

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30030iJCG10,11200105-200111

sub48809-30031

main48809-30031iJCG10,11200111

9010512251

main90105-12251

9011908A08

main90119-08A08

9011908C04

main90119-08C04

9017712002

main90177-12002

9017808005

main90178-08005

9017912144

main90179-12144

9164180816

main91641-80816

91641K0816

main91641-K0816

33 parts on this diagram · 2 diagrams in section
