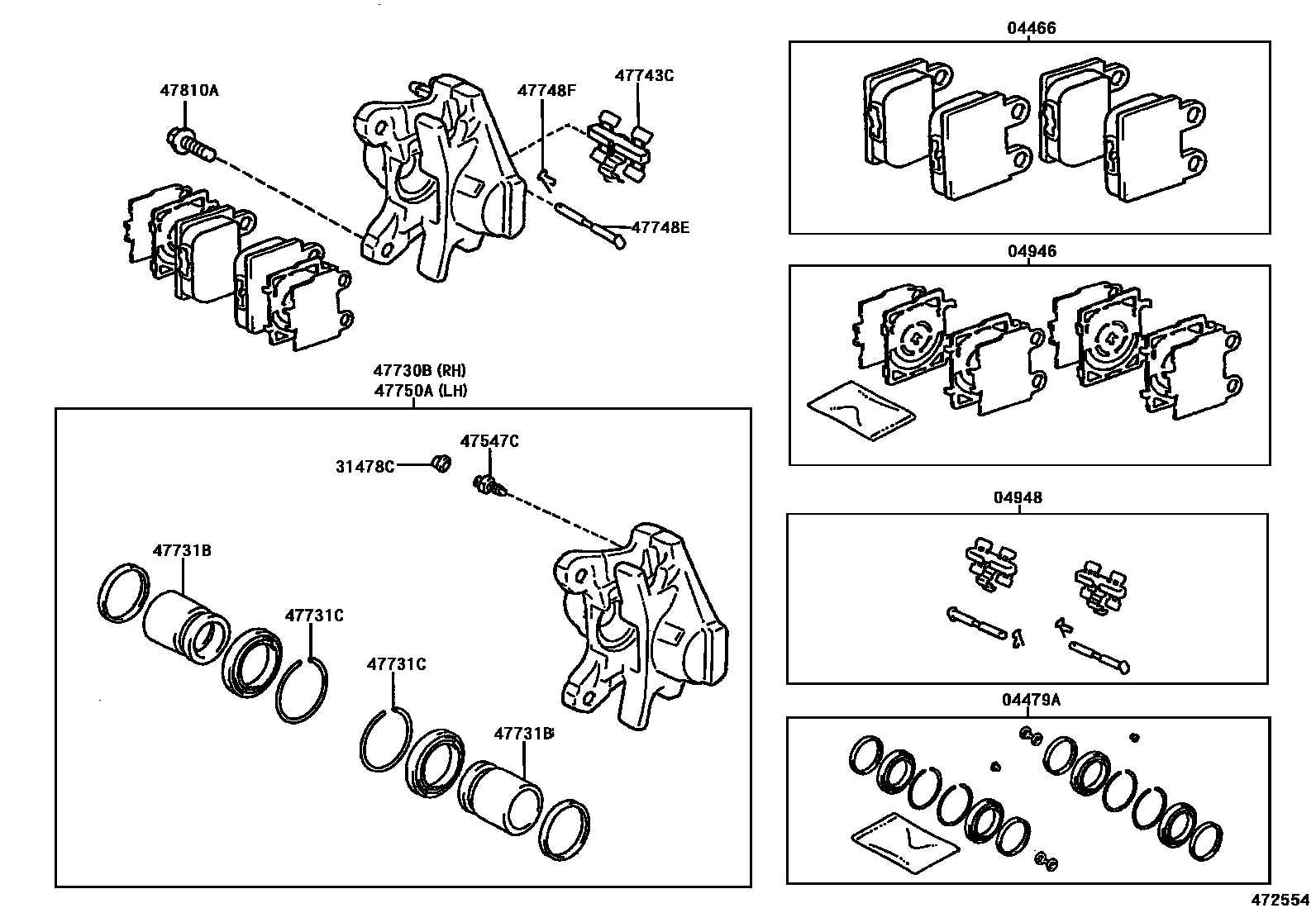

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-51020iJCG1#200105

sub04466-22180

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30221iJCG1#200105

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30071iJCG1#200105

04948FITTING KIT, DISC BRAKE, REAR

main04948-30071iJCG1#200105

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iJCG1#200105

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iJCG1#200105

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-51010iJCG1#200105

47731BPISTON, REAR DISC BRAKE

main47731-30100iJCG1#200105

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iJCG1#200105

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-30030iJCG1#200105

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-30011iJCG1#200105

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12028iJCG1#200105

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-51010iJCG1#200105

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iJCG1#200105-200706

14 parts on this diagram · 1 diagram in section
