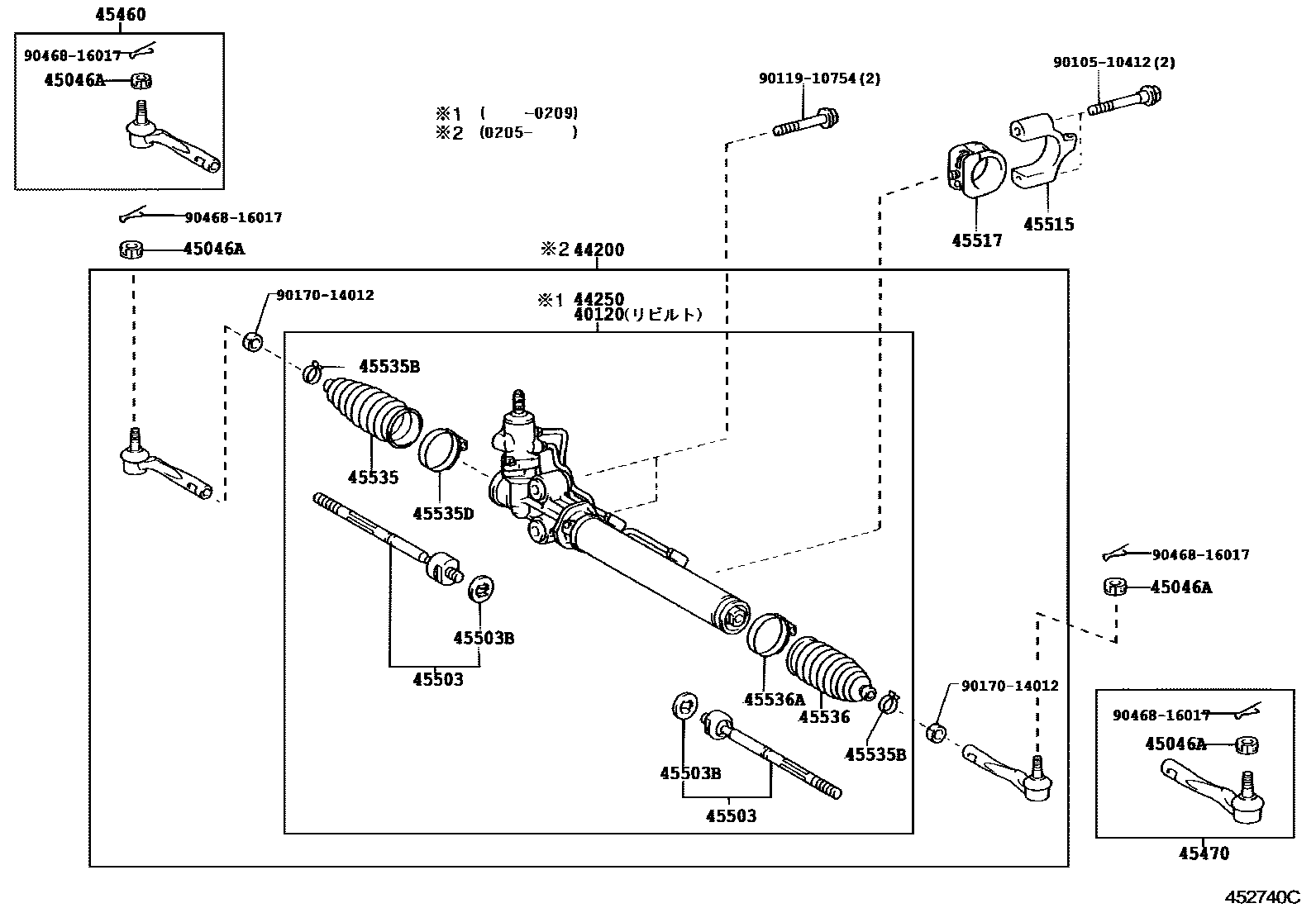

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-51050iJCG10,11200105-200205

main40120-51080iJCG15200110

main40120-51090iJCG10,11200205

44200LINK ASSY, POWER STEERING

main44200-51091iJCG15200110

main44200-51100iJCG10,11200205

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-51050iJCG10,11200105-200205

main44250-51080iJCG15200110-200209

sub44200-51091

main44250-51090iJCG10,11200205-200209

sub44200-51100

sub44200-51110

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iJCG1#200105

45460ROD ASSY, TIE, RH

main45460-39395iJCG15200110

main45460-39575iJCG10,11200105

45470ROD ASSY, TIE, LH

main45470-39145iJCG15200110

main45470-39205iJCG10,11200105

45503END SUB-ASSY, STEERING RACK

main45503-29535iJCG15200110

main45503-29785iJCG10,11200105

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007iJCG1#200105

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22120iJCG10,11200105

main45515-22130iJCG15200110

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22080iJCG15200110

main45517-51010iJCG10,11200105

45535BOOT, STEERING RACK, NO.1

main45535-30010iJCG1#200105

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19012iJCG1#200105-200204

sub90467-19019

main90467-19019iJCG1#200204

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-49004iJCG1#200105

45536BOOT, STEERING RACK, NO.2

main45535-30010iJCG1#200105

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-49004iJCG1#200105

9010510412

main90105-10412

9011910754

main90119-10754

9017014012

main90170-14012

9046816017

main90468-16017

19 parts on this diagram · 3 diagrams in section
