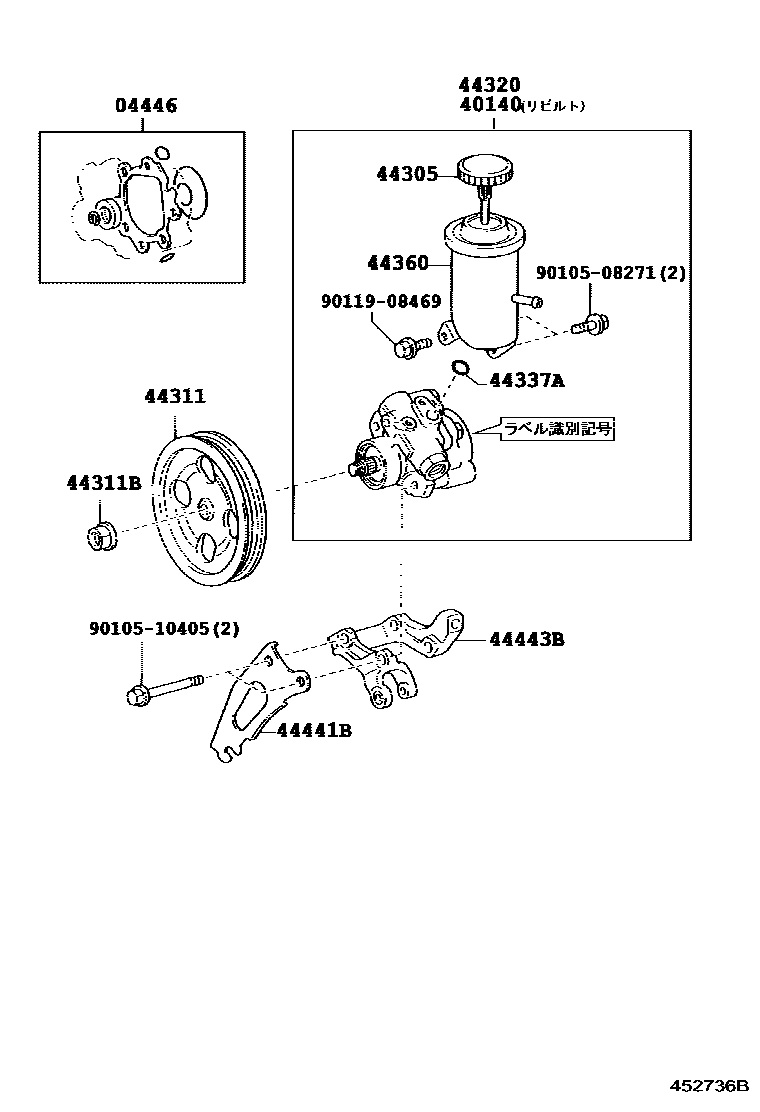

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-30120iJCG10,11200105-200501

main04446-60210iJCG1#200501

40140PUMP ASSY,VANE REBUILT

main40140-51020iJCG1#200105-200205

sub44320-51020

main40140-51030iJCG10,11200205

sub44320-51030

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-50010iJCG1#200105

sub44305-50020

44311PULLEY, VANE PUMP

main44311-22091iJCG1#200105

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iJCG1#200105

44320PUMP ASSY, VANE

main44320-51020iJCG1#200105-200205

main44320-51030iJCG10,11200205

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iJCG1#200105

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-30280iJCG1#200105

44441BBRACKET, PUMP, FRONT

main44441-30080iJCG1#200105

44443BBRACKET, VANE PUMP

main44443-22130iJCG1#200105

9010508271

main90105-08271

9010510405

main90105-10405

9011908469

main90119-08469

13 parts on this diagram · 1 diagram in section
