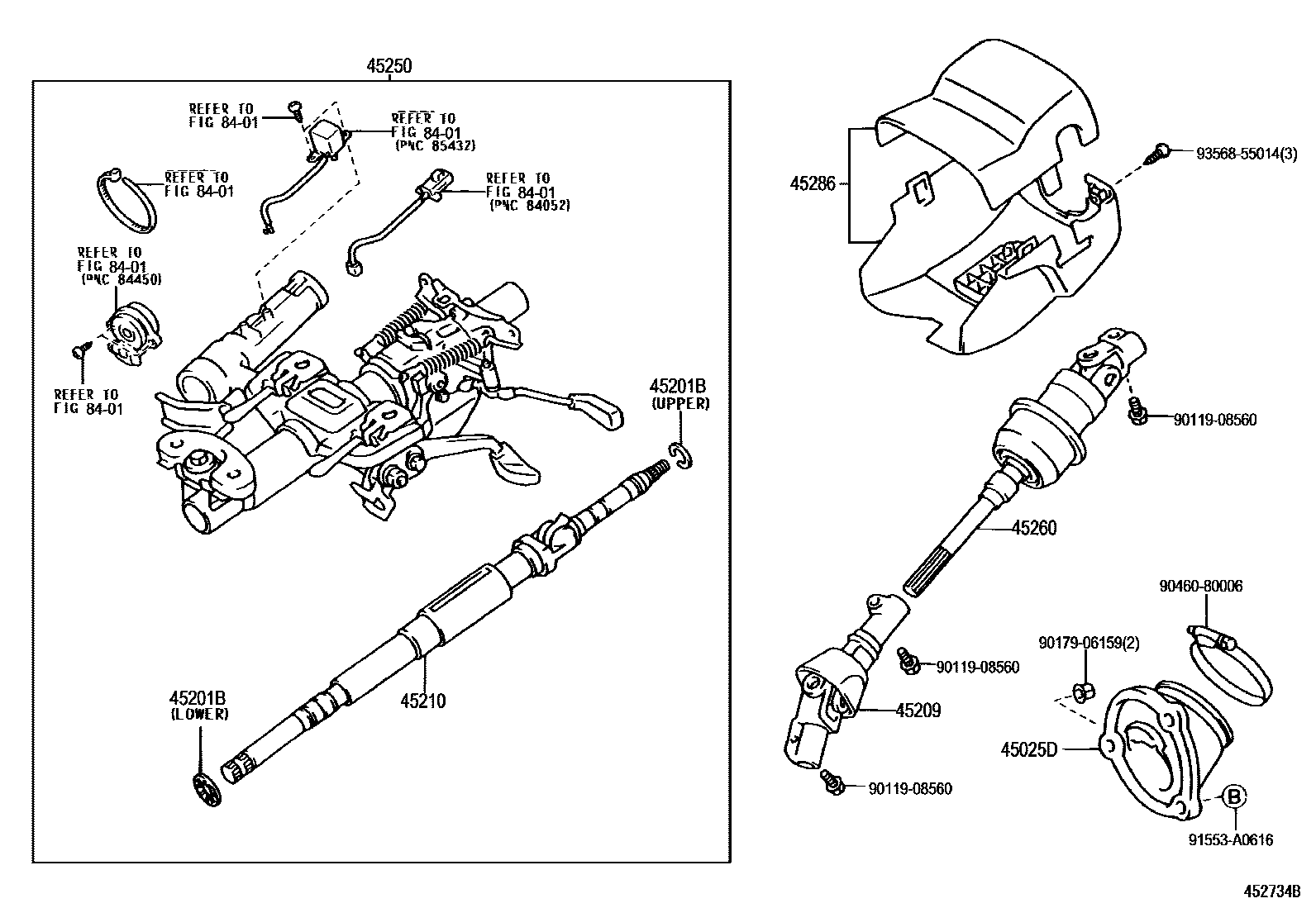

STEERING COLUMN & SHAFT

0001 1 0002 1��(���� ������ �������)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30330iJCG15200110

main45025-51010iJCG10,11200105

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iJCG10,15200105

main90905-20003iJCG10,15200105

45209YOKE SUB-ASSY, STEERING SLIDING

main45206-30070iJCG15200110

main45206-51010iJCG10,11200105

45210SHAFT ASSY, STEERING MAIN

main45210-51010iJCG10,15200105-200201

sub45210-51011

main45210-51021iJCG10,15200201

45250COLUMN ASSY, STEERING

main45250-51010iJCG10,15200105

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-22350iJCG15200110

main45260-22360iJCG10,11200105

45286COVER, STEERING COLUMN

main45286-51902-A0iJCG15200105-200404

sub45286-51904

main45286-51902-B0iJCG10,11200105-200404

sub45286-51904

main45286-51902-C0iJCG10,11200105-200404

sub45286-51904

main45286-51903-A0iJCG10,15200105-200404

IVORY,TRIM0#

sub45286-51905

main45286-51903-B0iJCG10,15200105-200404

LT.GRAY,TRIM1#

sub45286-51905

main45286-51903-C0iJCG10,15200105-200404

BLACK,TRIM2#

sub45286-51905

main45286-51904-A0iJCG1#200404

main45286-51904-B0iJCG1#200404

main45286-51904-C0iJCG1#200404

main45286-51905-A0iJCG10,15200404

IVORY,TRIM0#

main45286-51905-B0iJCG10,15200404

LT.GRAY,TRIM1#

main45286-51905-C0iJCG10,15200404

BLACK,TRIM2#

8401

9011908560

main90119-08560

9017906159

main90179-06159

9046080006

main90460-80006

91553A0616

main91553-A0616

9356855014

main93568-55014

13 parts on this diagram · 2 diagrams in section
