REAR AXLE SHAFT & HUB
42330ABOLT(FOR REAR DRIVE SHAFT)
42344COVER, REAR AXLE INBOARD JOINT END
42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE
43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

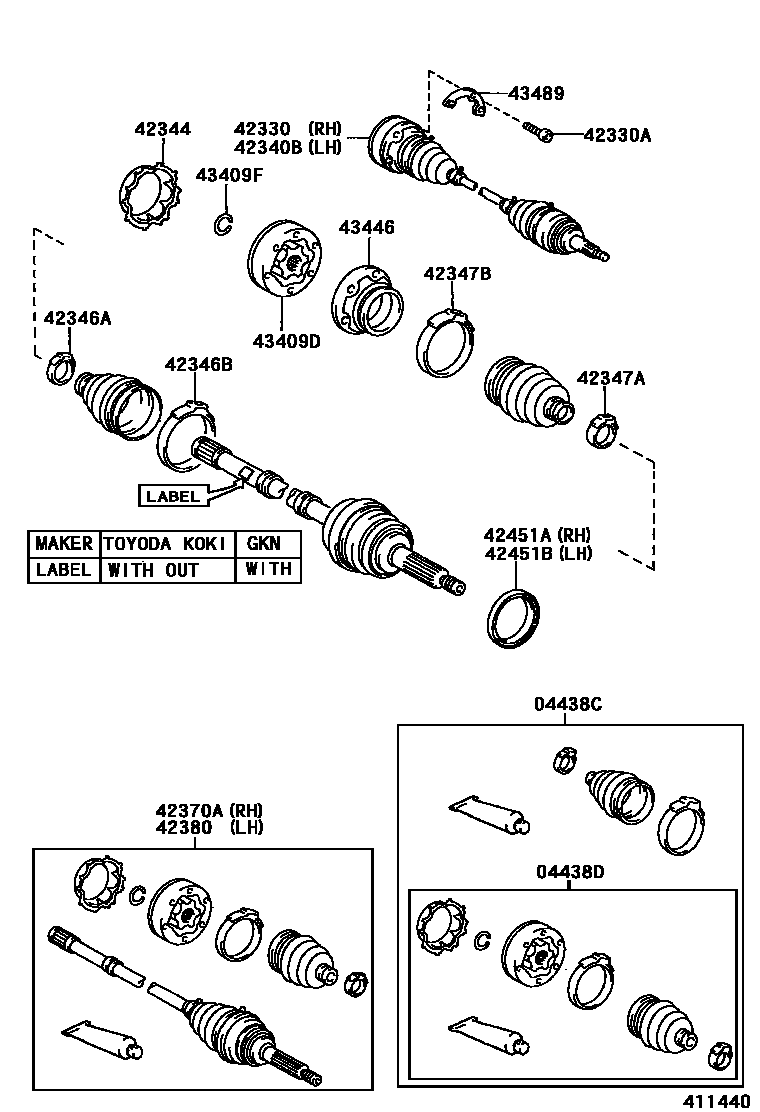

18 parts on this diagram · 2 diagrams in section
