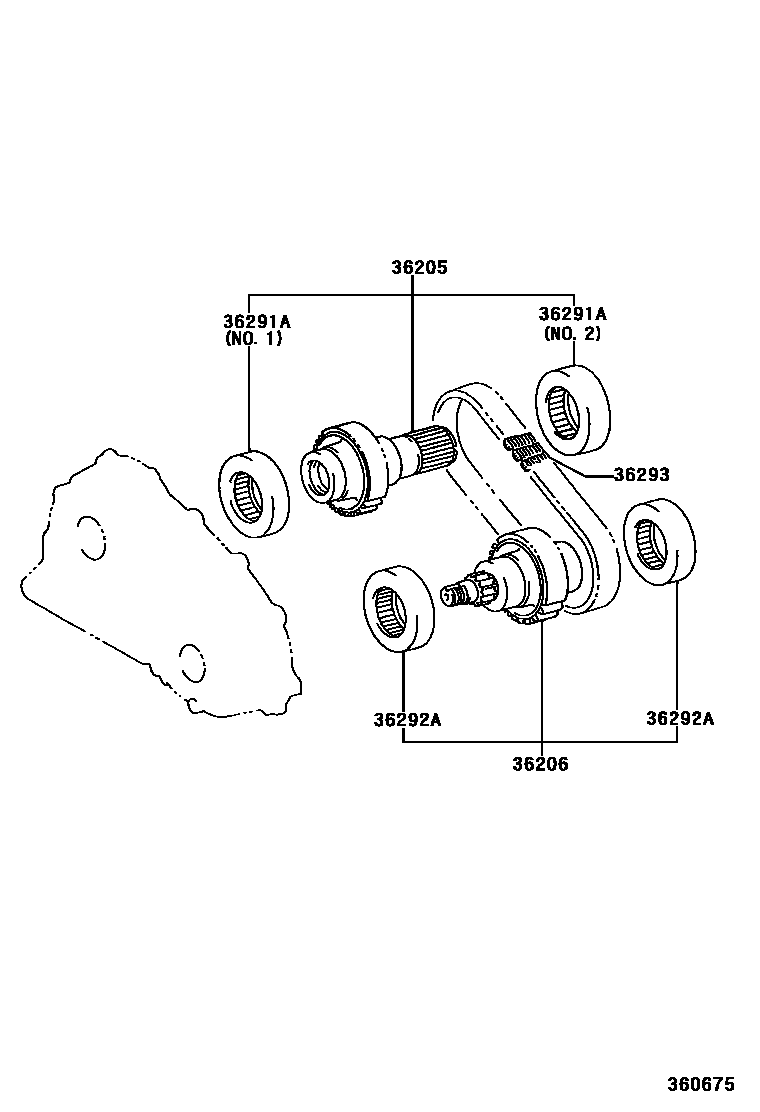

TRANSFER GEAR

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-30030iJCG15200110

36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH

main36206-30030iJCG15200110

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90363-55002iJCG15200110

main90363-55004iJCG15200110

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-55004iJCG15200110

36293CHAIN, TRANSFER FRONT DRIVE

main36293-30020iJCG15200110

5 parts on this diagram · 1 diagram in section
