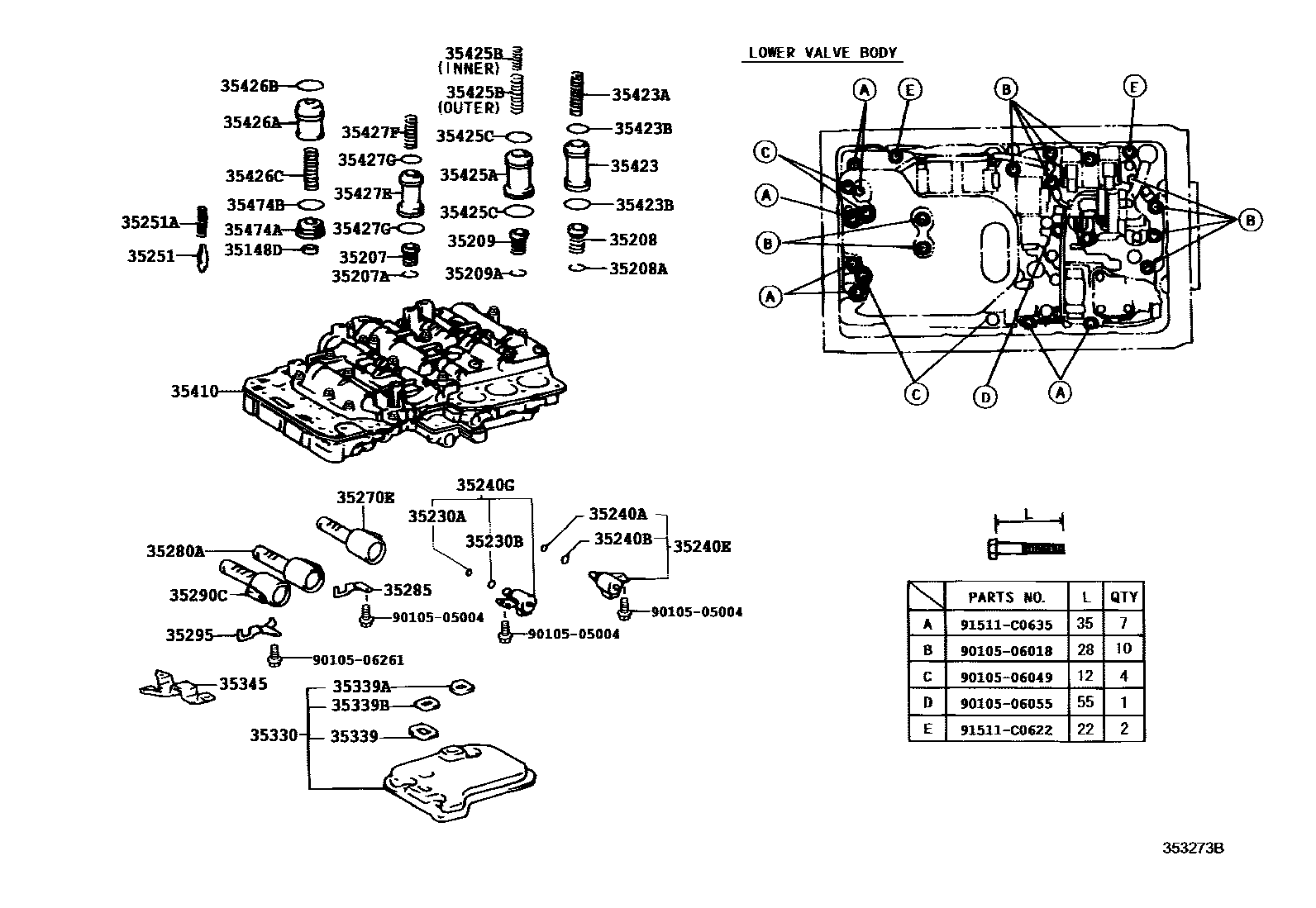

VALVE BODY & OIL STRAINER (ATM)
35148DGASKET (FOR C-O ACCUMULATOR PISTON)
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35230ARING, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2)
35230BRING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2)
35240ARING, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240BRING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35270SOLENOID ASSY, SHIFT CONTROL
35270EVALVE, SOLENOID(SLN)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35290CVALVE, SOLENOID(SLT)
35295PLATE, SOLENOID LOCK, NO.2
35339GASKET, OIL STRAINER
35339AGASKET, OIL STRAINER, NO.1
35339BGASKET, OIL STRAINER, NO.2
35345PLATE, OIL GUIDE
35410BODY ASSY, TRANSMISSION VALVE
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35426APISTON, C-0 ACCUMULATOR
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35427EPISTON, B-0 ACCUMULATOR
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35474ACOVER, ACCUMULATOR
35474BRING, O (FOR ACCUMULATOR COVER)
9010505004
main90105-05004
9010506018
main90105-06018
9010506049
main90105-06049
9010506055
main90105-06055
9010506261
main90105-06261
91511C0622
main91511-C0622
91511C0635
main91511-C0635
49 parts on this diagram · 6 diagrams in section
