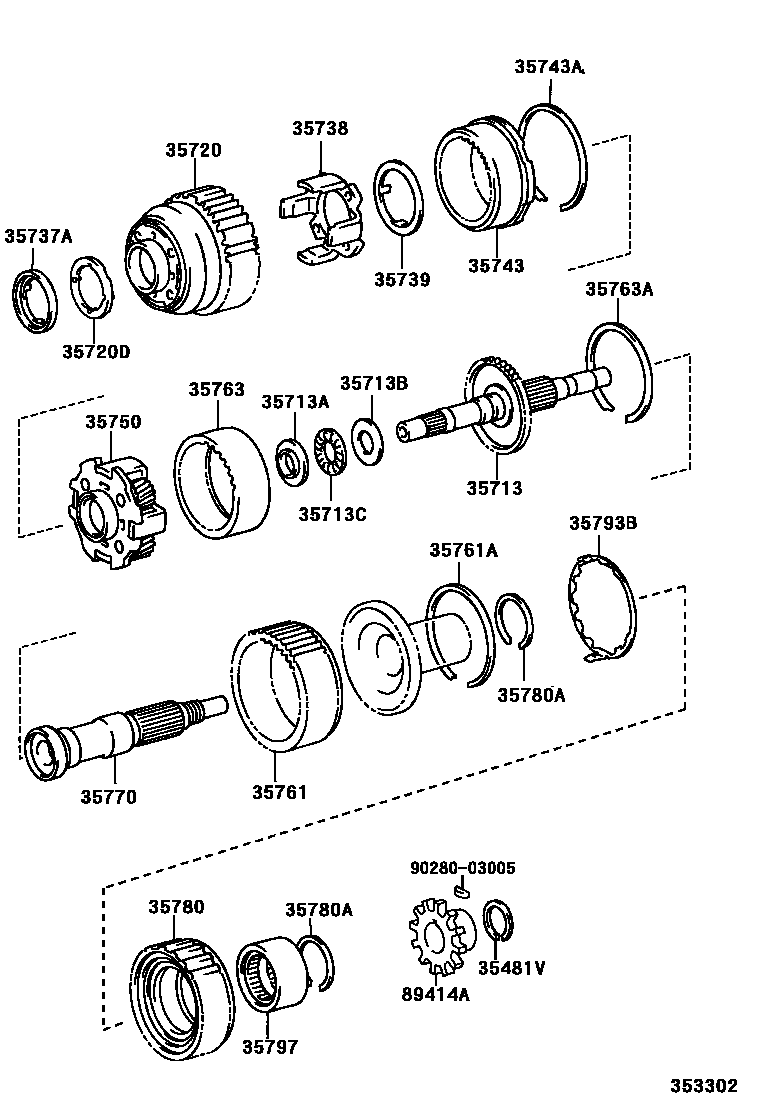

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
35713SHAFT, INTERMEDIATE
35713ARACE, THRUST BEARING, NO.1 (FOR INTERMEDIATE SHAFT)
35713BRACE, THRUST BEARING, NO.2 (FOR INTERMEDIATE SHAFT)
35713CBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35750GEAR ASSY, CENTER PLANETARY
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35770SHAFT ASSY, OUTPUT
35780CLUTCH ASSY, 1 WAY NO.2
35780ARING, SNAP (FOR 1 WAY CLUTCH)
35793BRETAINER, 1 WAY CLUTCH
9028003005
main90280-03005
24 parts on this diagram · 2 diagrams in section
