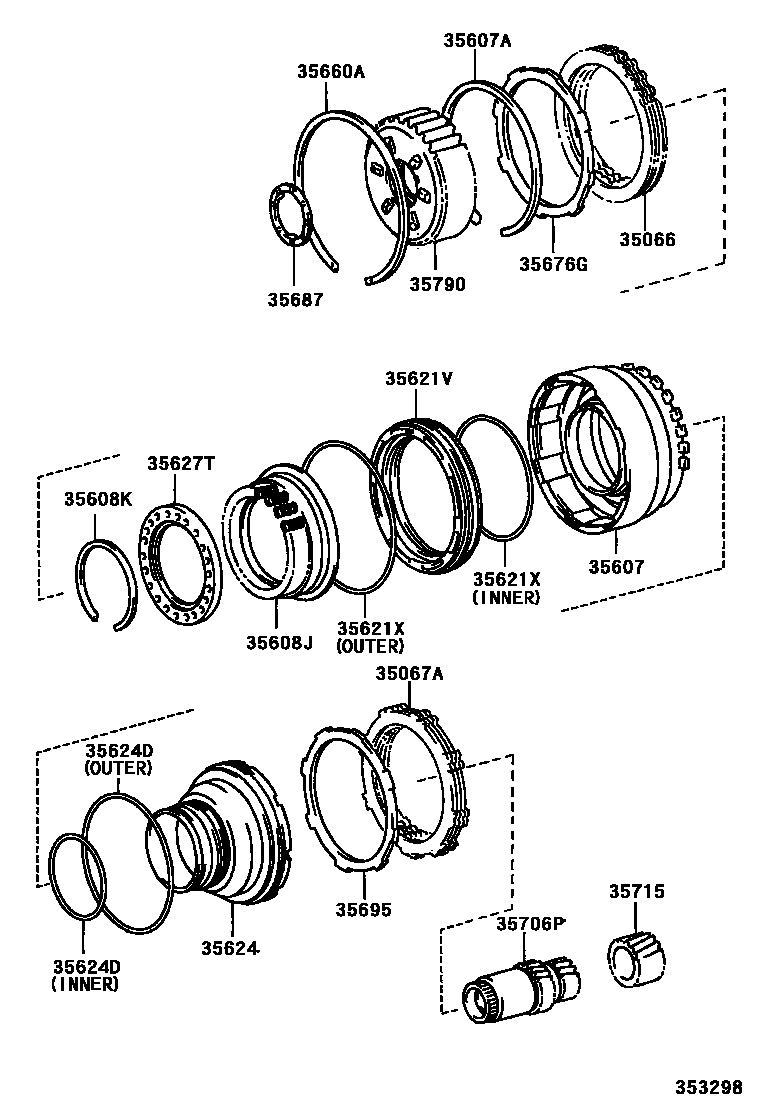

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A650E 0002 1A340H

35066DISC SET, 2ND BRAKE

main35066-22010iJCG10200105

main35066-30030iJCG11200105

35067ADISC SET, 3RD BRAKE, NO.2

main35067-22010iJCG10200105

main35067-30021iJCG11200105

35607DRUM SUB-ASSY, BRAKE, NO.1 & NO.2

main35607-30010iJCG10,11200105

35607ARING, SNAP, NO.1 (FOR BRAKE DRUM)

main90520-99020iJCG10,11200105

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010iJCG15200110

35608JSPRING SUB-ASSY, BRAKE PISTON RETURN

main35608-30030iJCG10,11200105

35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)

main90520-80001iJCG10,11200105

35621VPISTON, BRAKE, NO.1

main35621-30020iJCG11200105

main35621-30030iJCG10200105

35621XRING, O (FOR BRAKE PISTON NO.1)

main90301-99089iJCG10,11200105

main90301-99092iJCG10,11200105

35624PISTON, 2ND BRAKE

main35601-50010iJCG10,11200105

main35624-30010iJCG15200110

35624DRING, O (FOR BRAKE PISTON NO.4)

main90301-80001iJCG10,11200105

main90301-99087iJCG10,11200105

35627TSEAT, BRAKE RETURN SPRING

main35627-30020iJCG10,11200105

35660ARING, SNAP, NO.2 (FOR BRAKE DRUM)

main90520-99023iJCG10,11200105

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020iJCG15200110

35676GFLANGE, BRAKE, NO.1

main35676-30180iJCG10200105

main35676-30190iJCG10,11200105

main35676-30200iJCG10,11200105

main35676-30210iJCG10,11200105

main35676-30220iJCG10,11200105

main35676-30230iJCG10,11200105

main35676-30240iJCG11200105

35687WASHER, CLUTCH DRUM THRUST, NO.3

main35687-30010iJCG10,11200105

35695PLATE, BRAKE, NO.5

main35695-30010iJCG10,11200105

main35695-30020iJCG10,11200105

main35695-30030iJCG10,11200105

main35695-30040iJCG10,11200105

main35695-30050iJCG10,11200105

main35695-30060iJCG10,11200105

35706PGEAR SUB-ASSY, FRONT PLANETARY SUN

main35706-30061iJCG15200110

main35706-30090iJCG10,11200105

35715GEAR, RR PLANETARY SUN

main35715-30030iJCG10,11200105

35790CLUTCH ASSY, 1 WAY

main35790-30050iJCG15200110

main35790-30080iJCG10,11200105

20 parts on this diagram · 2 diagrams in section
