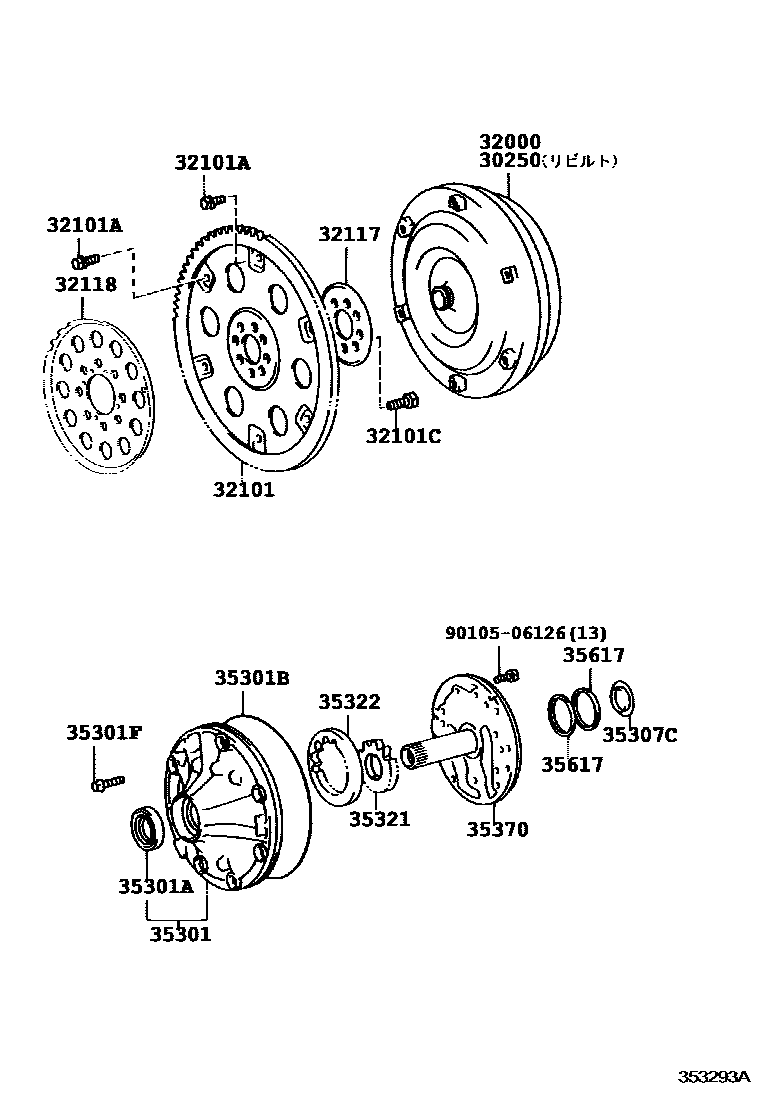

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-22250iJCG10,15200105-200706

main30250-30370iJCG11200105-200706

32000CONVERTER ASSY, TORQUE

main32000-22250iJCG10,15200105-200706

main32000-30370iJCG11200105-200706

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-22050iJCG1#200105

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-09005iJCG1#200311

main90105-09006iJCG1#200311

main90119-09009iJCG1#200105-200311

main90119-09010iJCG1#200105-200311

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10294iJCG1#200105

32117SPACER, DRIVE PLATE, REAR

main32117-22020iJCG1#200105

32118ROTOR, CRANKSHAFT ANGLE SENSOR

main32118-22010iJCG1#200105

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-50020iJCG1#200105

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iJCG1#200105-200210

sub90311-38020

main90311-38087iJCG1#200210

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iJCG1#200105

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iJCG1#200105

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30340iJCG1#200105

35321GEAR, FRONT OIL PUMP DRIVE

main35321-30030iJCG1#200105

main35321-30040iJCG1#200105

main35321-30050iJCG1#200105

main35321-30060iJCG1#200105

main35321-30070iJCG1#200105

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-30020iJCG1#200105

main35322-30030iJCG1#200105

main35322-30040iJCG1#200105

main35322-30050iJCG1#200105

main35322-30060iJCG1#200105

35370SHAFT ASSY, STATOR

main35370-30060iJCG1#200105

35617RING, CLUTCH DRUM OIL SEAL

main35617-50010iJCG10,15200105-200706

9010506126

main90105-06126

17 parts on this diagram · 1 diagram in section
