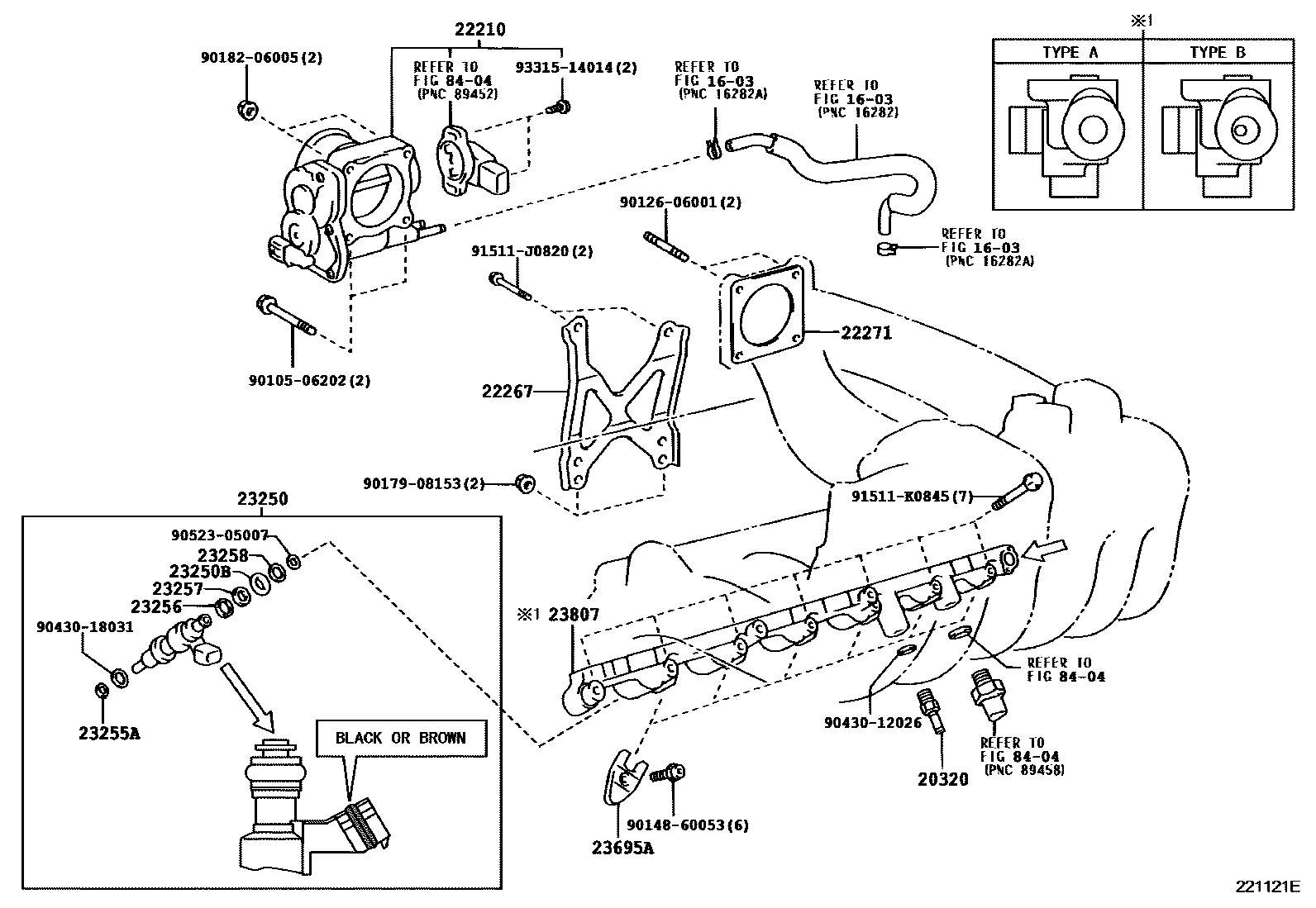

FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1 0005 1

1603

20320VALVE ASSY, FUEL RELIEF

main20320-28010i1JZFSE..JCG10200105-200108

sub20320-28011

main20320-46010i1JZFSE,2JZFSE..JCG1#200108

main20320-74011i2JZFSE..JCG11200105-200108

22210BODY ASSY, THROTTLE

main22030-46240i2JZFSE..JCG11200105

main22030-46250i1JZFSE..JCG10,15200105

22267BRACKET, THROTTLE BODY

main22267-46070i1JZFSE,2JZFSE..JCG1#200105

22271GASKET, THROTTLE BODY

main22271-46100i1JZFSE,2JZFSE..JCG1#200105

23250INJECTOR ASSY, FUEL

main23209-49046i2JZFSE..JCG11200105-200108

main23209-49055i1JZFSE..JCG10200105-200108

sub23209-49056

main23209-49056i1JZFSE..JCG10,15200108-200505

sub23209-49057

main23209-49057i1JZFSE..JCG10,15200505-200506

sub23209-49058

main23209-49058-A0i1JZFSE..JCG10,15200506-200706

MARK BLACK

main23209-49058-B0i1JZFSE..JCG10,15200506-200706

MARK BROWN

main23209-49065i2JZFSE..JCG11200108-200505

sub23209-49066

main23209-49066i2JZFSE..JCG11200505-200506

sub23209-49067

main23209-49067-A0i2JZFSE..JCG11200506-200706

MARK BLACK

main23209-49067-B0i2JZFSE..JCG11200506-200706

MARK BROWN

23250BRING, O(FOR FUEL INJECTOR)

main90301-06013i1JZFSE,2JZFSE..JCG1#200105-200506

sub90301-06018

main90301-06018i1JZFSE,2JZFSE..JCG1#200506

23255ASEAL, FUEL INJECTOR

main23255-46011i1JZFSE,2JZFSE..JCG1#200105

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i1JZFSE,2JZFSE..JCG1#200105

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i1JZFSE,2JZFSE..JCG1#200105

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28010i1JZFSE..JCG10200105-200505

sub23258-28011

main23258-28011i1JZFSE,2JZFSE..JCG1#200505

main23258-74010i2JZFSE..JCG11200105-200108

23695ACLAMP, NOZZLE HOLDER

main23695-46010i2JZFSE..JCG11200105-200108

main23695-46020i1JZFSE..JCG10200105-200108

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-46050i2JZFSE..JCG11200105-200108

sub23807-46051

main23807-46060i1JZFSE..JCG10200105-200108

main23807-46061i1JZFSE,2JZFSE..JCG1#200108

8404

9010506202

main90105-06202

9012606001

main90126-06001

9014860053

main90148-60053

9017908153

main90179-08153

9018206005

main90182-06005

9043012026

main90430-12026

9043018031

main90430-18031

9052305007

main90523-05007

91511J0820

main91511-J0820

91511K0845

main91511-K0845

9331514014

main93315-14014

25 parts on this diagram · 4 diagrams in section
