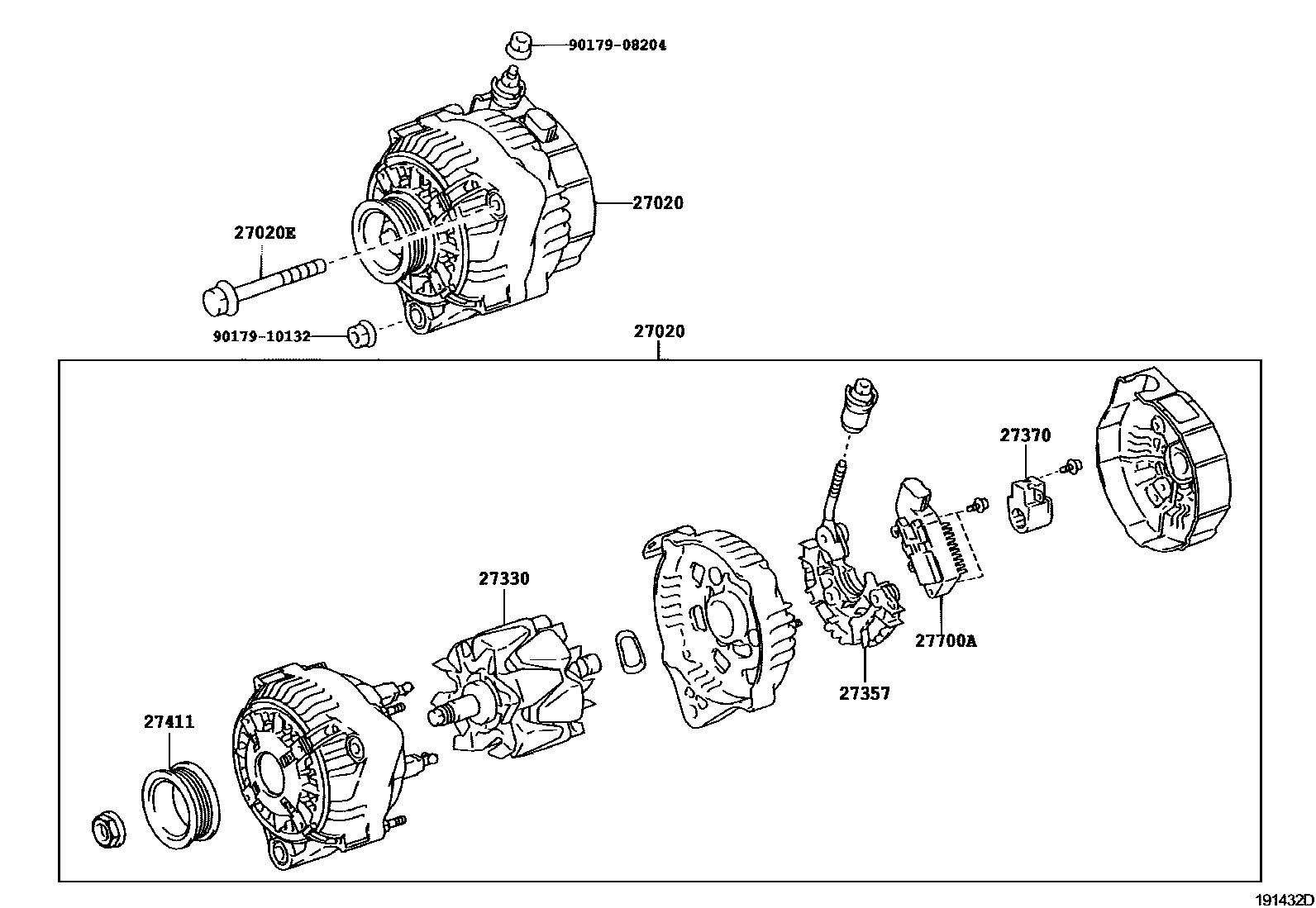

ALTERNATOR

0001 112V 100A 0002 112V 130A

27020ALTERNATOR ASSY

main27060-46300i2JZFSE..JCG11200105

main27060-46320i1JZFSE..JCG10,15200105

27020EBOLT(FOR ALTERNATOR)

main91512-61050i1JZFSE,2JZFSE..JCG1#200105

27330ROTOR ASSY, ALTERNATOR

main27330-20130i1JZFSE..JCG10,15200105-200602

sub27330-33090

main27330-33090i1JZFSE..JCG10,15200602

main27330-62180i2JZFSE..JCG11200108

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-46310i2JZFSE..JCG11200108

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i1JZFSE..JCG10,15200105-200602

main27370-27060i1JZFSE..JCG10,15200602

main27370-75060i2JZFSE..JCG11200108

27411PULLEY, ALTERNATOR

main27411-46080i1JZFSE..JCG10,15200105

27700AREGULATOR ASSY, GENERATOR

main27700-46060i2JZFSE..JCG11200105

9017908204

main90179-08204

9017910132

main90179-10132

9 parts on this diagram · 2 diagrams in section
