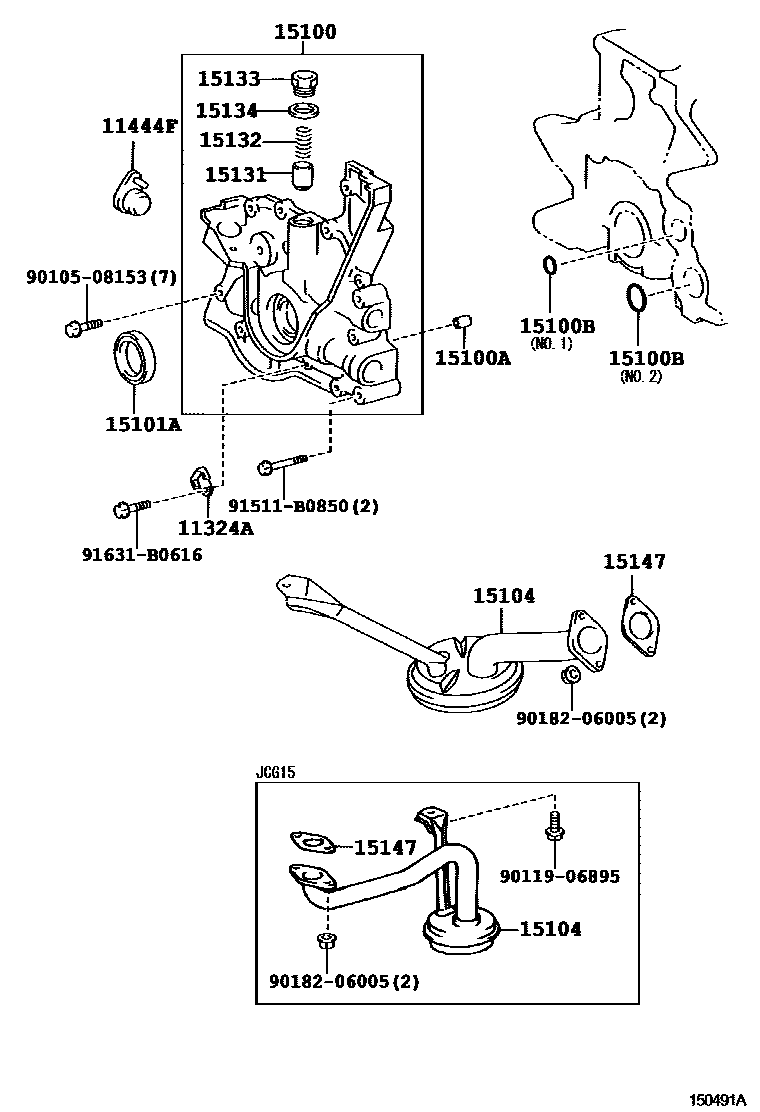

ENGINE OIL PUMP

11324APLATE, TIMING BELT

main11324-46030i1JZFSE,2JZFSE..JCG1#200105

11444FPLUG, HOLE(FOR OIL PUMP)

main11444-46010i1JZFSE,2JZFSE..JCG1#200105

15100PUMP ASSY, OIL

main15100-46100i1JZFSE..JCG15200110

main15100-46111i1JZFSE,2JZFSE..JCG10,11200105

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i1JZFSE,2JZFSE..JCG1#200105

15100BRING, O(FOR OIL PUMP)

main96721-24022i1JZFSE,2JZFSE..JCG1#200105

main96721-24031i1JZFSE,2JZFSE..JCG1#200105

15101ASEAL(FOR CRANKSHAFT)

main90311-46001i1JZFSE,2JZFSE..JCG1#200105

15104STRAINER SUB-ASSY, OIL

main15104-46051i1JZFSE..JCG15200110

main15104-46070i1JZFSE,2JZFSE..JCG10,11200105

15131VALVE, OIL PUMP RELIEF

main15131-17010i1JZFSE,2JZFSE..JCG10,11200105

main15131-46060i1JZFSE..JCG15200110

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i1JZFSE,2JZFSE..JCG1#200105

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1JZFSE,2JZFSE..JCG1#200105

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1JZFSE,2JZFSE..JCG1#200105

15147GASKET, OIL STRAINER

main15147-46010i1JZFSE,2JZFSE..JCG10,11200105

main15147-46030i1JZFSE..JCG15200110

9010508153

main90105-08153

9011906895

main90119-06895

9018206005

main90182-06005

91511B0850

main91511-B0850

91631B0616

main91631-B0616

17 parts on this diagram · 1 diagram in section
