CYLINDER HEAD

0001 1 0002 1

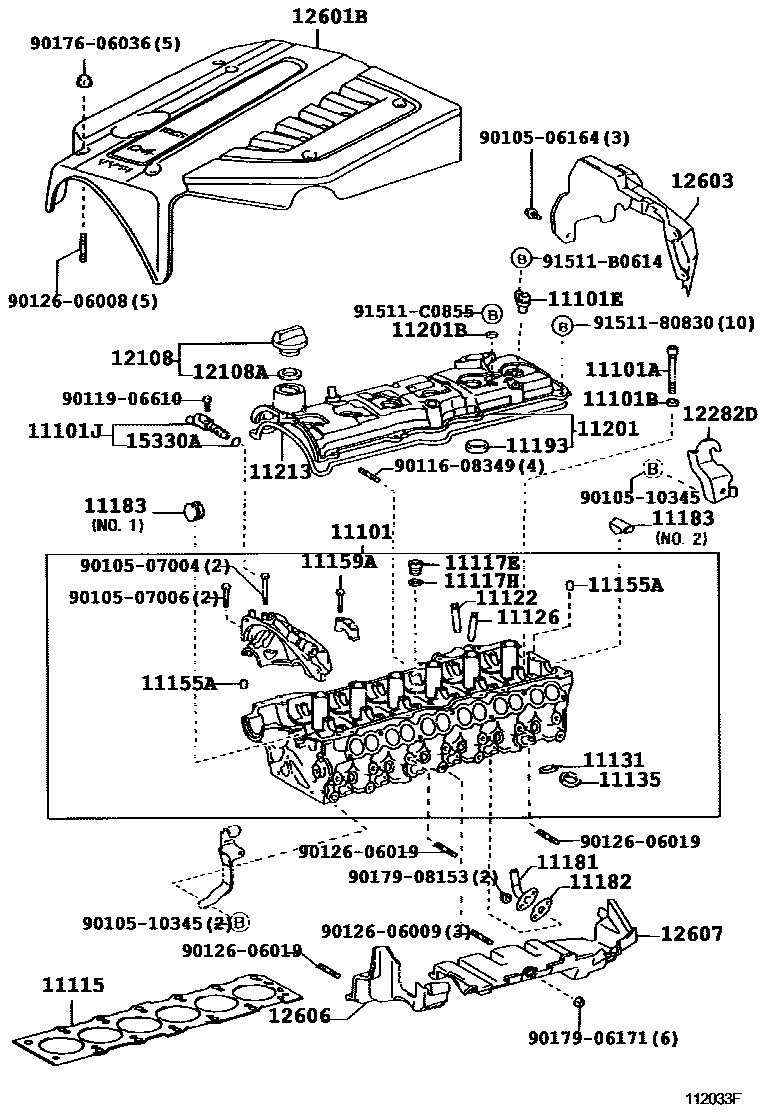

11101HEAD SUB-ASSY, CYLINDER

main11101-49425i2JZFSE..JCG11200105-200108

sub11101-49426

sub23807-46051

main11101-49426i2JZFSE..JCG11200108

main11101-49445i1JZFSE..JCG10200105-200108

sub11101-49446

main11101-49446i1JZFSE..JCG10,15200108

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02102i1JZFSE,2JZFSE..JCG1#200105

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-11018i1JZFSE,2JZFSE..JCG1#200105-200110

sub90201-11034

main90201-11034i1JZFSE,2JZFSE..JCG1#200110

11101ESENSOR, CAM POSITION

main90919-05026i1JZFSE,2JZFSE..JCG1#200105

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-46020i1JZFSE,2JZFSE..JCG1#200105-200112

sub15330-46021

main15330-46021i1JZFSE,2JZFSE..JCG1#200112

11115GASKET, CYLINDER HEAD

main11115-46060i1JZFSE,2JZFSE..JCG1#200105

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-24010i1JZFSE,2JZFSE..JCG1#200105

11117HGASKET(FOR WATER HOLE)

main90430-24010i1JZFSE,2JZFSE..JCG1#200105

11122BUSH, INTAKE VALVE GUIDE

main11122-46020i1JZFSE,2JZFSE..JCG1#200105

main11123-46020i1JZFSE,2JZFSE..JCG1#200105

11126BUSH, EXHAUST VALVE GUIDE

main11122-16010i1JZFSE,2JZFSE..JCG1#200105

sub11122-16020

main11123-16010i1JZFSE,2JZFSE..JCG1#200105

11131SEAT, INTAKE VALVE

main11131-46040i1JZFSE,2JZFSE..JCG1#200105

main11132-46040i1JZFSE,2JZFSE..JCG1#200105

11135SEAT, EXHAUST VALVE

main11135-46040i1JZFSE,2JZFSE..JCG1#200105

main11136-46040i1JZFSE,2JZFSE..JCG1#200105

11155APIN, RING W/HEAD

main90253-11021i1JZFSE,2JZFSE..JCG1#200108

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90119-07009i1JZFSE,2JZFSE..JCG1#200105

11181PLATE, CYLINDER HEAD, REAR

main11181-46040i1JZFSE,2JZFSE..JCG1#200105

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-46020i1JZFSE,2JZFSE..JCG1#200105

11183PLUG, SEMICIRCULAR

main11183-46010i1JZFSE,2JZFSE..JCG1#200105

main11183-50020i1JZFSE,2JZFSE..JCG1#200105

11193GASKET, SPARK PLUG TUBE

main11193-46010i1JZFSE,2JZFSE..JCG1#200105

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-46072i2JZFSE..JCG11200105

main11201-46080i1JZFSE..JCG10,15200105

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-07008i1JZFSE,2JZFSE..JCG1#200105

11213GASKET, CYLINDER HEAD COVER

main11213-46040i1JZFSE,2JZFSE..JCG1#200105

12108CAP SUB-ASSY, OIL FILLER

main12180-20030i2JZFSE..JCG11200105

main12180-21010i1JZFSE..JCG10,15200105

12108AGASKET(FOR OIL FILLER CAP)

main12195-20020i2JZFSE..JCG11200105

main90430-37140i1JZFSE..JCG10,15200105

12282DHANGER, ENGINE, NO.2

main12282-46050i1JZFSE,2JZFSE..JCG1#200105-200108

sub12282-46060

main12282-46060i1JZFSE,2JZFSE..JCG1#200108

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-46050i1JZFSE..JCG10,15200105

main12601-46060i2JZFSE..JCG11200105

12603COVER SUB-ASSY, ENGINE, REAR

main12603-46021i1JZFSE,2JZFSE..JCG1#200105

12606COVER SUB-ASSY, ENGINE, LH NO.1

main12606-46012i1JZFSE,2JZFSE..JCG1#200105

12607COVER SUB-ASSY, ENGINE, LH NO.2

main12607-46013i1JZFSE,2JZFSE..JCG1#200105

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137i1JZFSE,2JZFSE..JCG1#200105-200706

9010506164

main90105-06164

9010507004

main90105-07004

9010507006

main90105-07006

9010510345

main90105-10345

9011608349

main90116-08349

9011906610

main90119-06610

9012606008

main90126-06008

9012606009

main90126-06009

9012606019

main90126-06019

9017606036

main90176-06036

9017906171

main90179-06171

9017908153

main90179-08153

9151180830

main91511-80830

91511B0614

main91511-B0614

91511C0855

main91511-C0855

44 parts on this diagram · 2 diagrams in section
