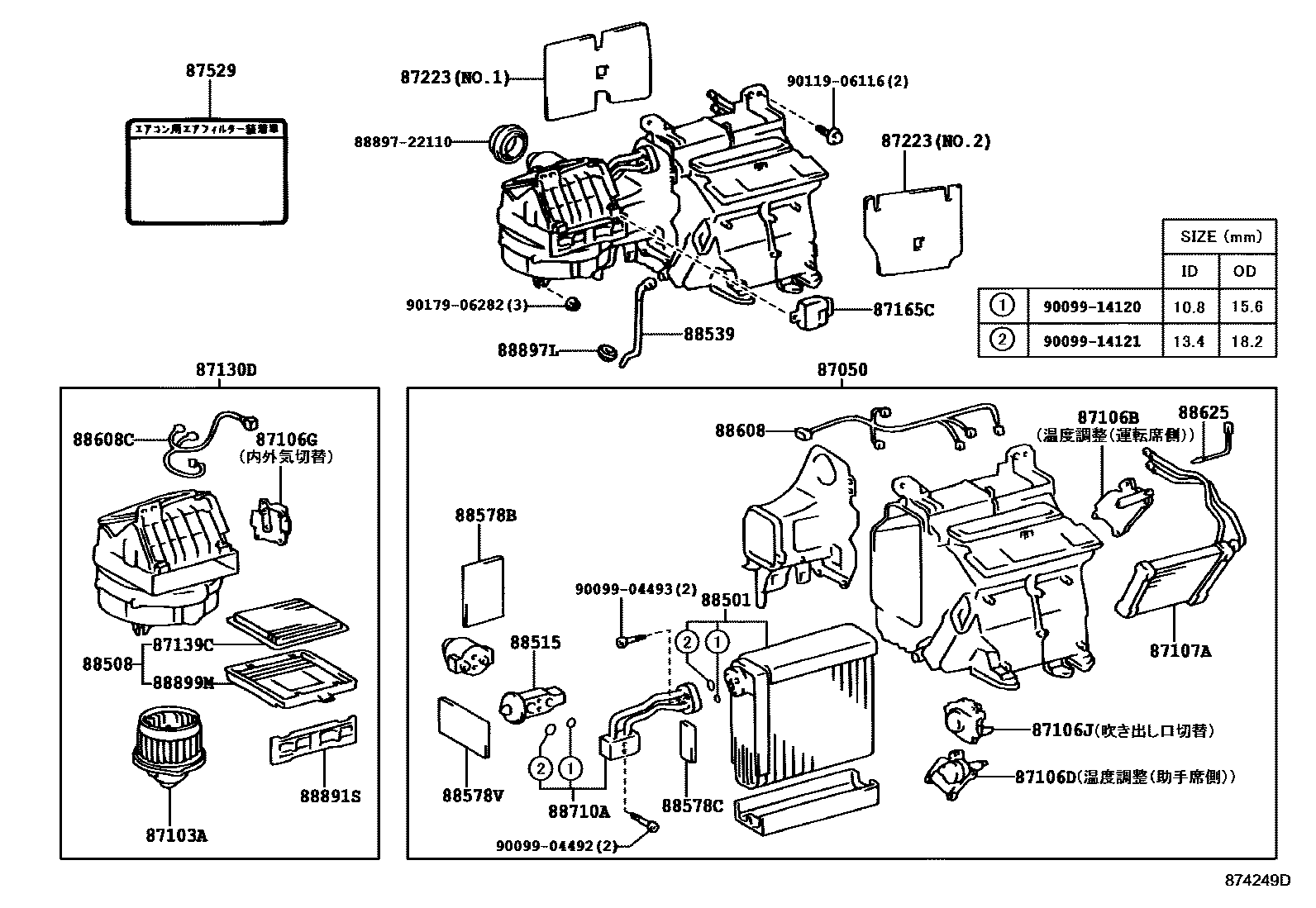

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)
sub87106-30341
87106DSERVO SUB-ASSY, DAMPER, NO.1
sub87106-30351
87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
87165CCONTROL, BLOWER MOTOR
87529PLATE, AIR FILTER CAUTION
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
sub88501-3A050
88508FILTER SUB-ASSY, CLEAN AIR
88515VALVE, COOLER EXPANSION
sub88515-22260
88539HOSE, COOLER UNIT DRAIN, NO.1
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88625THERMISTOR, COOLER, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88891SCOVER, COOLER, NO.1
88897LGROMMET (FOR DRAIN HOSE)
88899MPLATE, COVER(FOR AIR FILTER)
8889722110VALVE, COOLER MAGNET
main88897-22110
9009904492
main90099-04492
9009904493
main90099-04493
9009914120
main90099-14120
9009914121
main90099-14121
9011906116
main90119-06116
9017906282
main90179-06282
33 parts on this diagram · 1 diagram in section
