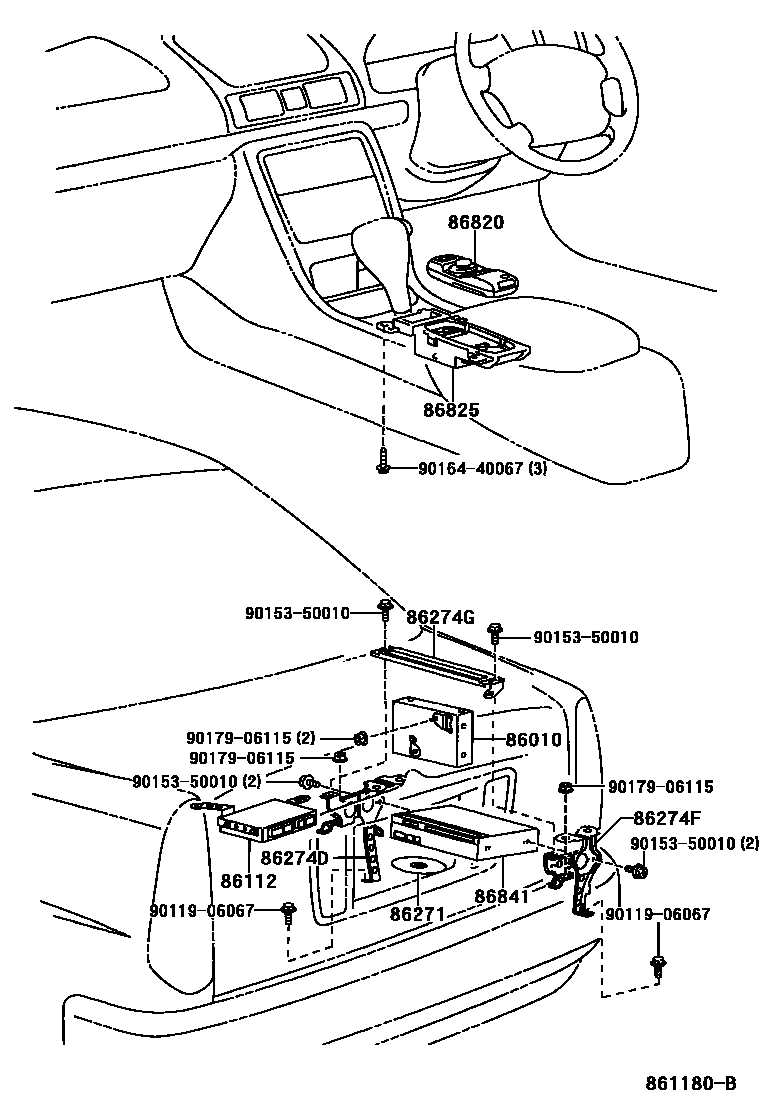

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86010TUNER ASSY, TELEVISION

main86010-51020iJCG17200008

86112COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY)

main86112-51010iJCG17200008

86271DISC, DISC PLAYER

main86271-33020iJCG17200008

sub08664-00246

86274DBRACKET, DISC PLAYER

main86274-51030iJCG17200008

86274FBRACKET, DISC PLAYER, NO.2

main86274-51040iJCG17200008

86274GBRACKET, DISC PLAYER, NO.3

main86274-51050iJCG17200008

86820CONTROLLER ASSY, NAVIGATION

main86820-51010iJCG17200008

sub86820-41020

86825HOLDER, NAVIGATION CONTROLLER

main86825-51010iJCG17200008

86841COMPUTER, NAVIGATION

main86841-51020iJCG17200008

sub86841-51040

9011906067

main90119-06067

9015350010

main90153-50010

9016440067

main90164-40067

9017906115

main90179-06115

13 parts on this diagram · 2 diagrams in section
