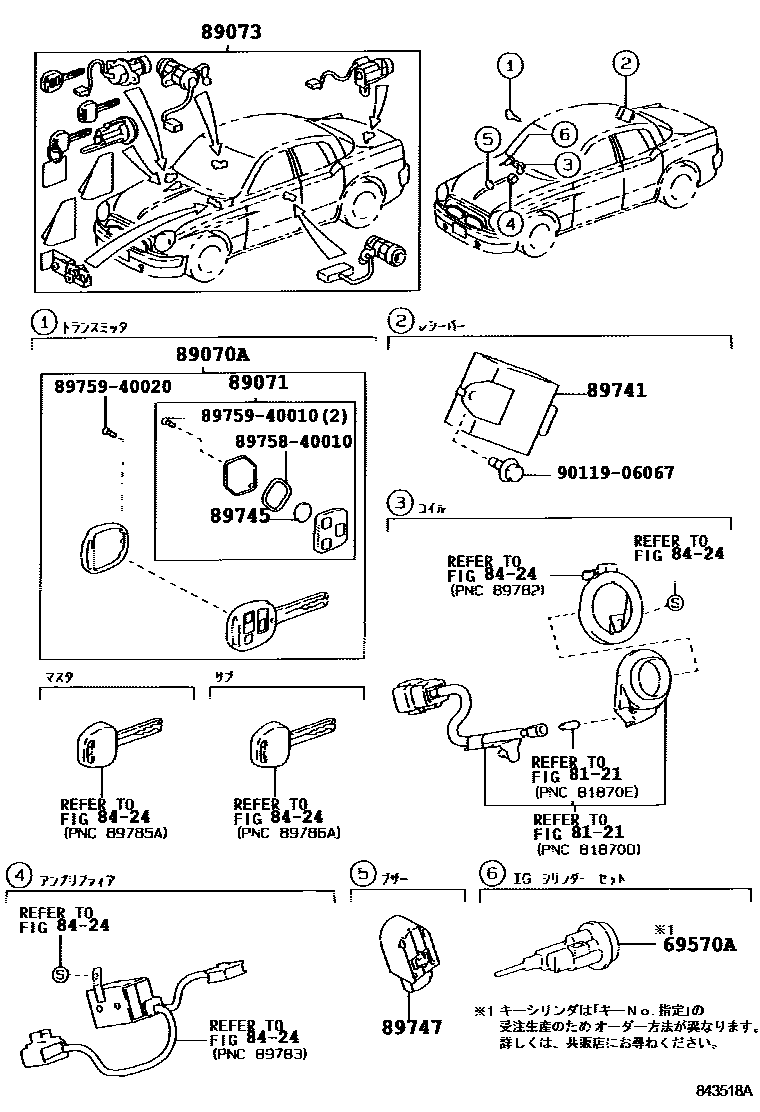

WIRELESS DOOR LOCK

69570ACYLINDER ASSY, IGNITION SWITCH LOCK

main69570-30200iJCG17200008

8121

8424

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-51090iJCG17200008

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-50080iJCG17200008-200009

sub89071-50081

main89071-50081iJCG17200009

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-51050iJCG17200008

89741RECEIVER, DOOR CONTROL

main89741-51010iJCG17200008

89745BATTERY, TRANSMITTER

main89745-40010iJCG17200008

89747BUZZER, WIRELESS DOOR LOCK

main89747-51010iJCG17200008

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020

9011906067

main90119-06067

13 parts on this diagram · 1 diagram in section
