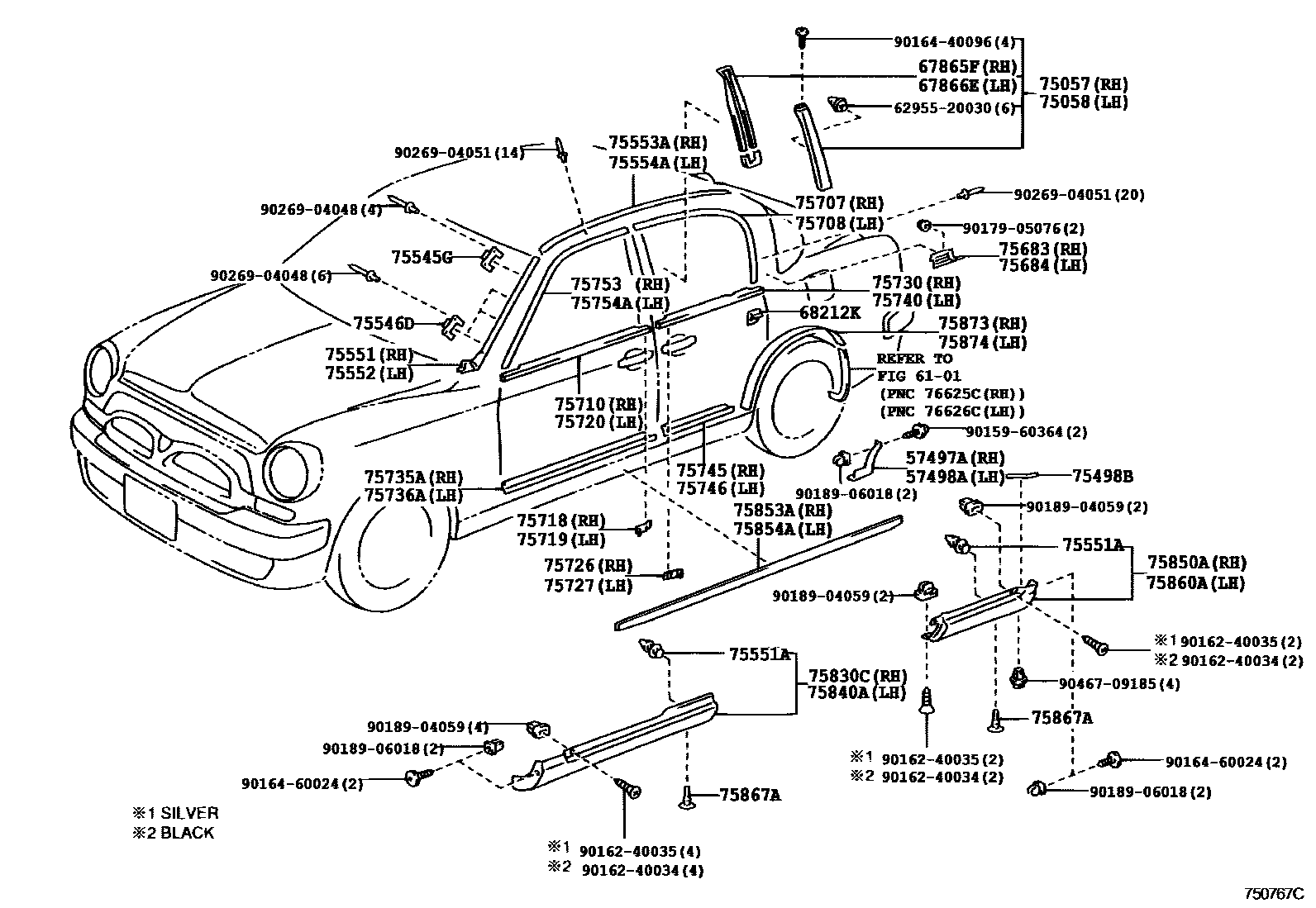

SIDE MOULDING
57497ASHIELD, REAR FLOOR HOUSING
57498ASHIELD, REAR FLOOR HOUSING, NO.2
6101
67865FWEATHERSTRIP, CENTER PILLAR UPPER END, RH
67866EWEATHERSTRIP, CENTER PILLAR UPPER END, LH
68212KCLIP, DOOR GLASS WEATHERSTRIP, OUTER
75057GARNISH SUB-ASSY, CENTER PILLAR, OUTER RH
75058GARNISH SUB-ASSY, CENTER PILLAR, OUTER LH
75498BSEAL, OUTSIDE MOULDING, NO.2
75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75546DCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75551ACLIP, ROOF DRIP MOULDING, NO.1
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75683MOULDING, QUARTER BELT, REAR RH
75684MOULDING, QUARTER BELT, REAR LH
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75718COVER, FRONT DOOR BELT MOULDING END, REAR RH
75719COVER, FRONT DOOR BELT MOULDING END, REAR LH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75726COVER, REAR DOOR BELT MOULDING END, FRONT RH
75727COVER, REAR DOOR BELT MOULDING END, FRONT LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75740MOULDING ASSY, REAR DOOR BELT, LH
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75830CMOULDING ASSY, ROCKER PANEL, FRONT RH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75840AMOULDING ASSY, ROCKER PANEL, FRONT LH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75853AMOULDING, ROCKER PANEL, CENTER RH
75854AMOULDING, ROCKER PANEL, CENTER LH
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
BLACK,202
BLUE MC.,8J9
LT.GRAYISH BLUE M.M.,8M3
75867ACLIP, ROCKER PANEL MOULDING
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
6295520030SEAL, ROOF SIDE VENT
main62955-20030
9015960364
main90159-60364
9016240034
main90162-40034
9016240035
main90162-40035
9016440096
main90164-40096
9016460024
main90164-60024
9017905076
main90179-05076
9018904059
main90189-04059
9018906018
main90189-06018
9026904048
main90269-04048
9026904051
main90269-04051
9046709185
main90467-09185
55 parts on this diagram · 1 diagram in section
