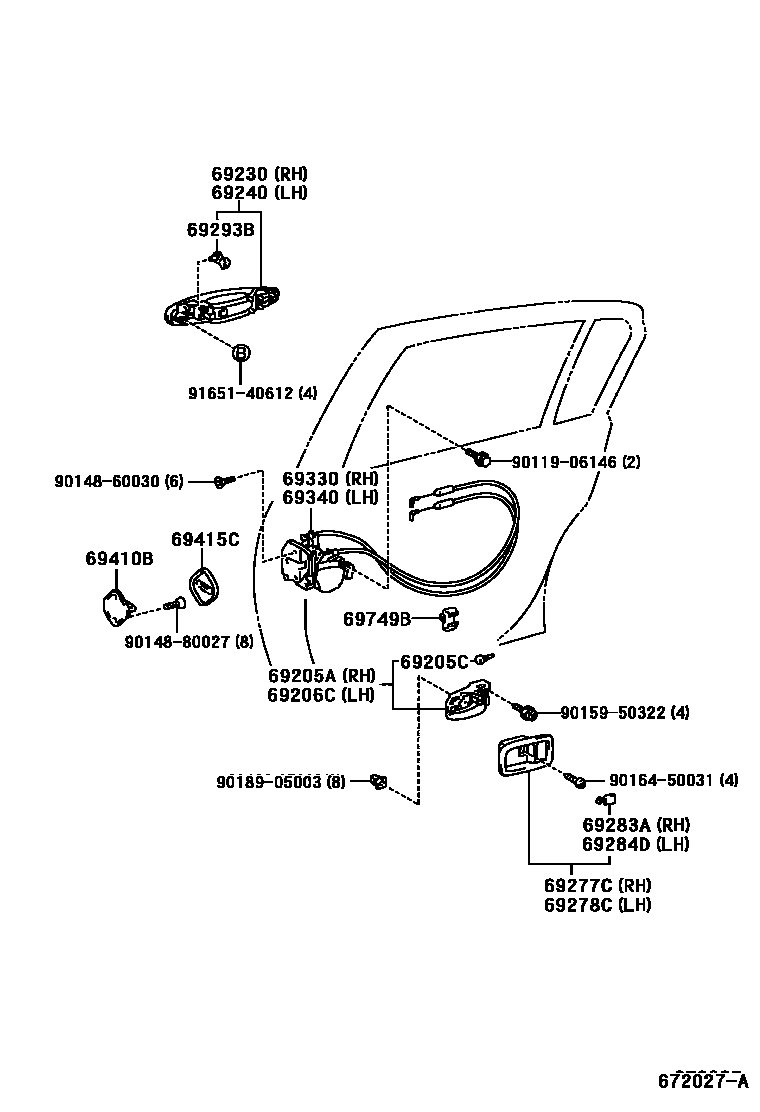

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-51010-A0iJCG17200008

IVORY,TRIM0#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iJCG17200008

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-51010-A0iJCG17200008

IVORY,TRIM0#

sub69206-47010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-51020iJCG17200008

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-51020iJCG17200008

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-51010-A0iJCG17200008

IVORY,TRIM0#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-51010-A0iJCG17200008

IVORY,TRIM0#

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iJCG17200008

IVORY,TRIM0#

sub69283-30040

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A1iJCG17200008

IVORY,TRIM0#

sub69284-30040

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12050iJCG17200008

main69293-12060iJCG17200008

69330LOCK ASSY, REAR DOOR, RH

main69050-51020iJCG17200008

69340LOCK ASSY, REAR DOOR, LH

main69060-51020iJCG17200008

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-51010iJCG17200008

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-30020iJCG17200008

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30050iJCG17200008

9011906146

main90119-06146

9014860030

main90148-60030

9014880027

main90148-80027

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9165140612

main91651-40612

22 parts on this diagram · 1 diagram in section
