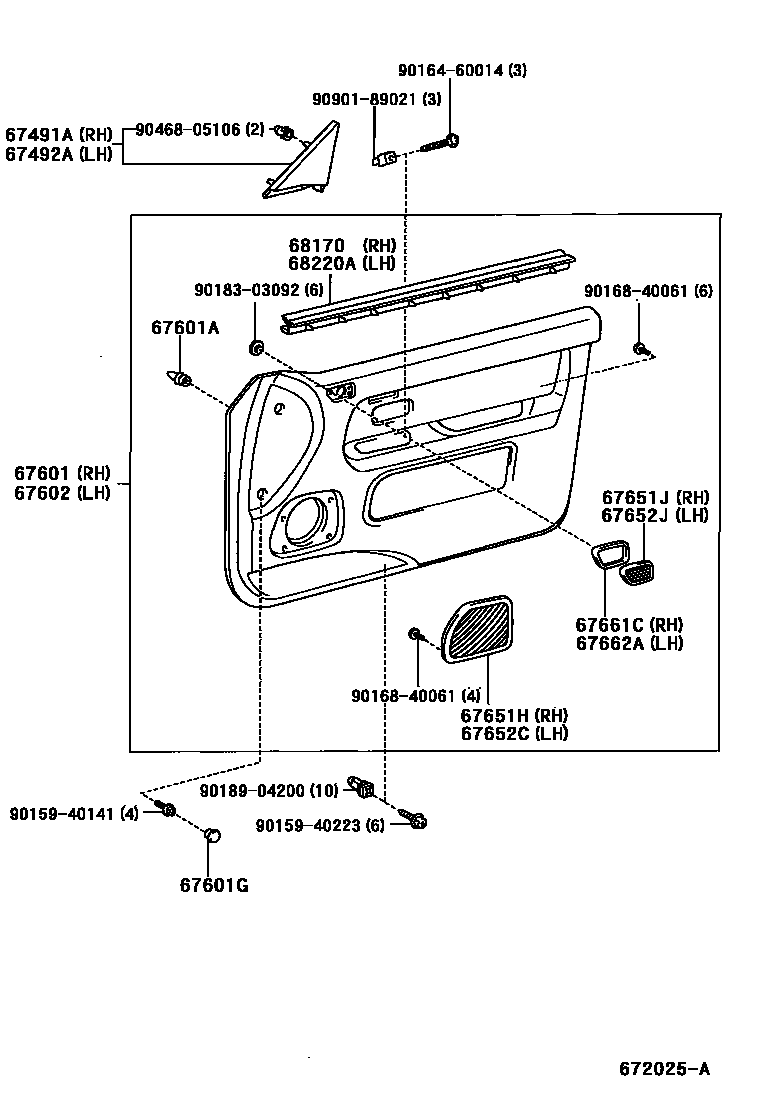

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-51010iJCG17200008

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-51010iJCG17200008

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-51190-A0iJCG17200008

IVORY,TRIM0#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-09203iJCG17200008

main90467-09206iJCG17200008

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-A1iJCG17200008

IVORY,TRIM0#

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-51100-A0iJCG17200008

IVORY,TRIM0#

67651HGRILLE, SPEAKER DOOR, RH

main67609-51010-A0iJCG17200008

IVORY,TRIM0#

67651JGRILLE SUB-ASSY, DOOR SPEAKER, RH

main67609-51020-A0iJCG17200008

IVORY,TRIM0#

67652CGRILLE, SPEAKER DOOR, LH

main67709-51010-A0iJCG17200008

IVORY,TRIM0#

67652JGRILLE SUB-ASSY, DOOR SPEAKER, LH

main67709-51020-A0iJCG17200008

IVORY,TRIM0#

67661CBASE, DOOR SPEAKER GRILLE, RH

main67661-51010-A0iJCG17200008

IVORY,TRIM0#

sub67661-51010

67662ABASE, DOOR SPEAKER GRILLE, LH

main67662-51010-A0iJCG17200008

IVORY,TRIM0#

sub67662-51010

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-51030iJCG17200008

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-51030iJCG17200008

9015940141

main90159-40141

9015940223

main90159-40223

9016460014

main90164-60014

9016840061

main90168-40061

9018303092

main90183-03092

9018904200

main90189-04200

9046805106

main90468-05106

9090189021

main90901-89021

22 parts on this diagram · 2 diagrams in section
