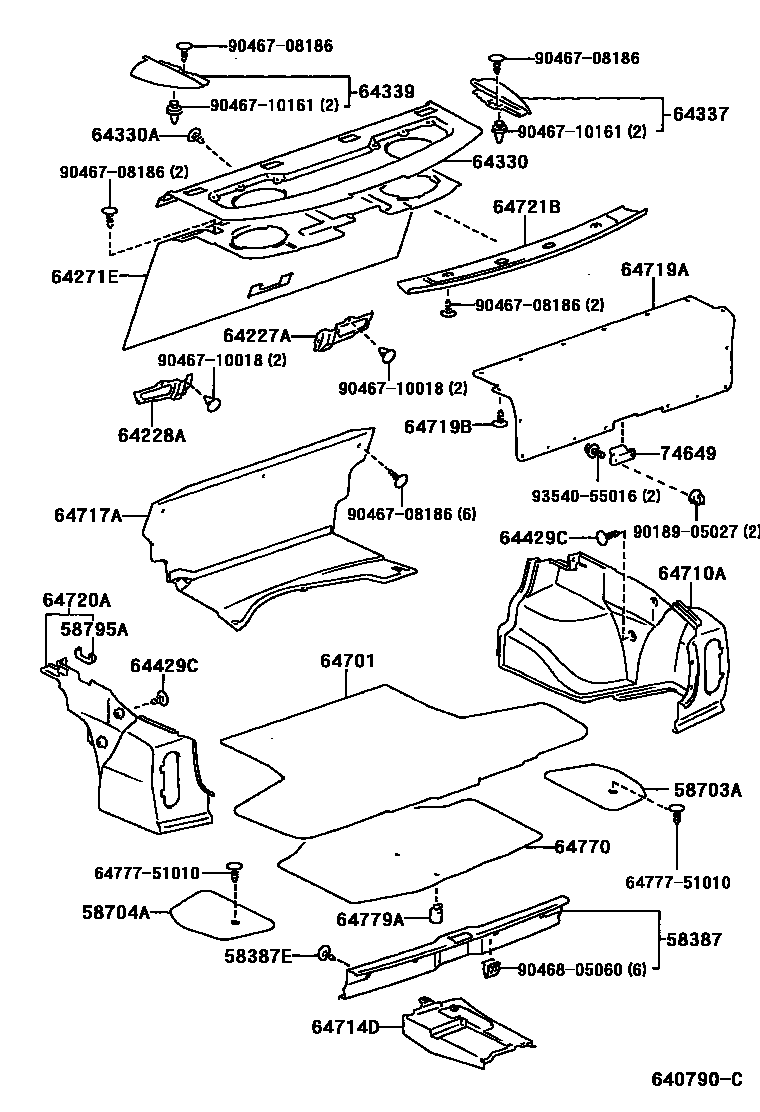

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58795ATRIM, JACK HOUSE OPENING
64227AEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228AEXTENSION, CENTER FLOOR TO BRACE, NO.2
64271EPANEL, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM0#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64337GARNISH, PACKAGE TRAY TRIM, RH
IVORY,TRIM0#
64339GARNISH, PACKAGE TRAY TRIM, LH
IVORY,TRIM0#
64429CCLIP(FOR LUGGAGE COMPARTMENT SIDE TRAY)
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM0#
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM0#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#
64770COVER ASSY, SPARE WHEEL
64779ASTOPPER, SPARE WHEEL COVER
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
6477751010CLAMP, SPARE WHEEL COVER
main64777-51010
9018905027
main90189-05027
9046708186
main90467-08186
9046710018
main90467-10018
9046710161
main90467-10161
9046805060
main90468-05060
9354055016
main93540-55016
31 parts on this diagram · 1 diagram in section
