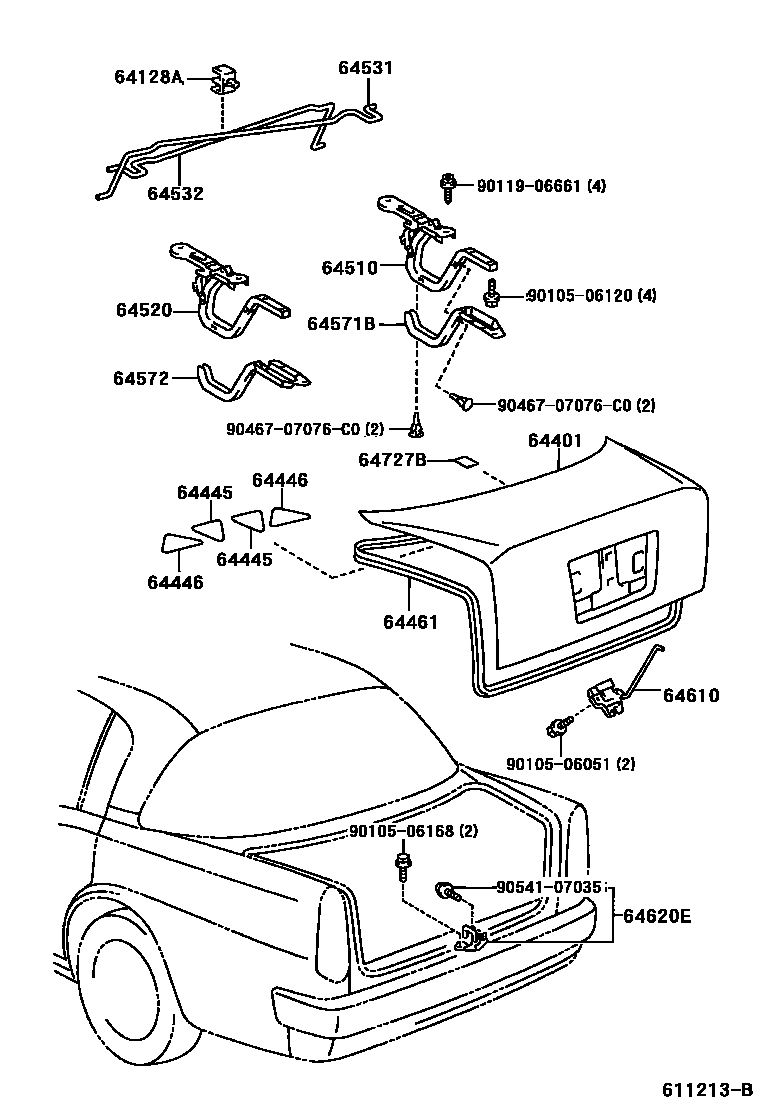

LUGGAGE COMPARTMENT DOOR & LOCK

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-51010iJCG17200008

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-51020iJCG17200008-200012

sub64401-51021

main64401-51021iJCG17200012

64445PAD, LUGGAGE COMPARTMENT DOOR SILENCER, NO.1

main64445-40010iJCG17200008

64446PAD, LUGGAGE COMPARTMENT DOOR SILENCER, NO.2

main64446-40010iJCG17200008

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-51020iJCG17200008

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-51040iJCG17200008

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-51010iJCG17200008

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-51020iJCG17200008

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-51020iJCG17200008

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-51020-C0iJCG17200008

BLACK,TRIM0#

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-51020-C0iJCG17200008

BLACK,TRIM0#

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-51020iJCG17200008

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30110iJCG17200008

64727BPAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-51010iJCG17200008

9010506051

main90105-06051

9010506120

main90105-06120

9010506168

main90105-06168

9011906661

main90119-06661

9046707076C0

main90467-07076C0

9054107035

main90541-07035

20 parts on this diagram · 1 diagram in section
