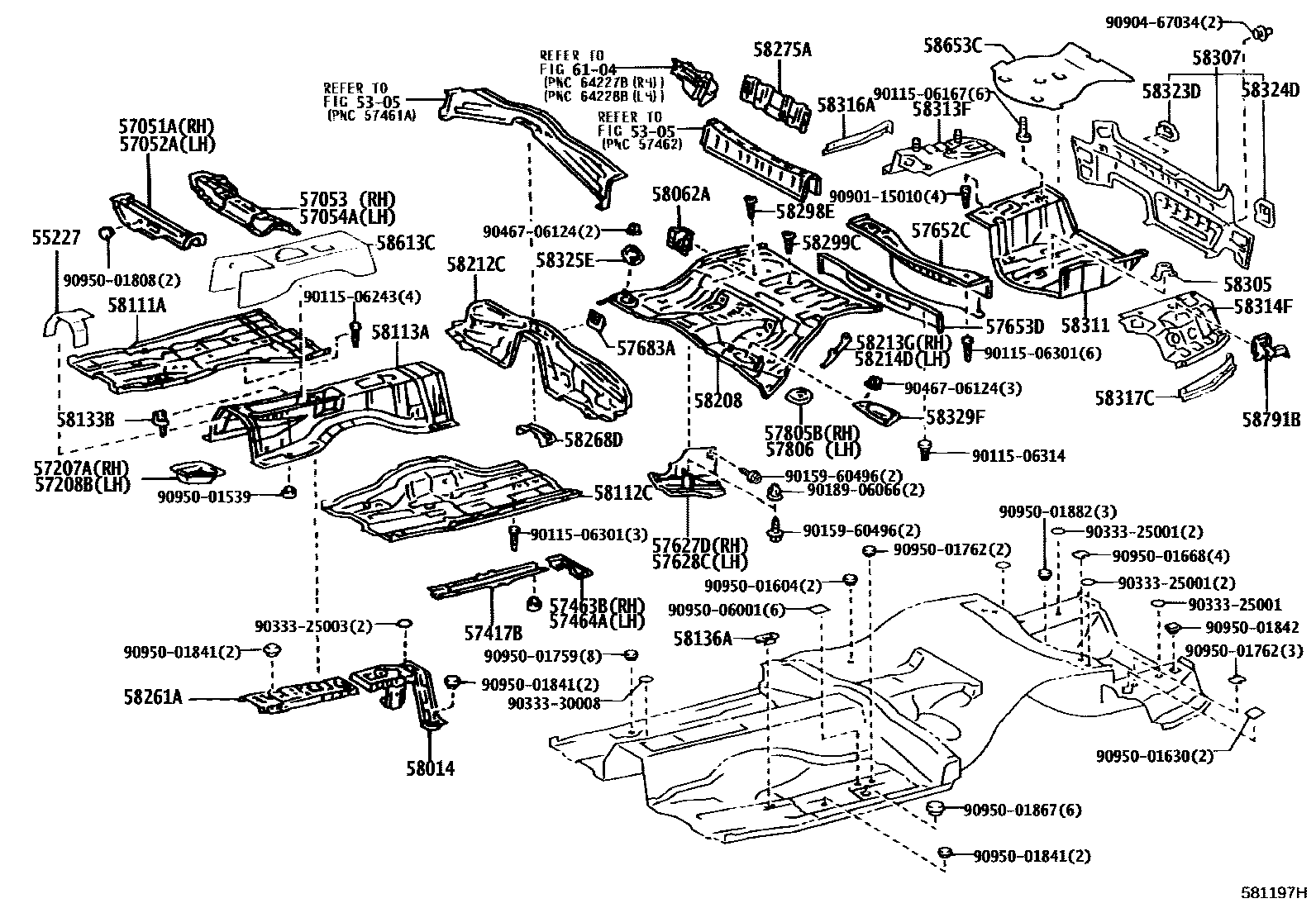

FLOOR PAN & LOWER BACK PANEL

5305

55227SHEET, DASH PANEL INSULATOR, NO.6

main55227-51010iJCG17¥1,740200008

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-51010iJCG17¥6,700200008

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-51010iJCG17¥6,700200008

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-51010iJCG17¥6,800200008

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-51010iJCG17¥6,800200008

57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH

main57207-51010iJCG17¥2,640200008

57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH

main57208-51010iJCG17¥2,640200008

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-51010iJCG17¥4,270200008

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57463-51010iJCG17¥2,070200008

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57464-51010iJCG17¥2,070200008

57627DCOVER, REAR FLOOR SIDE MEMBER

main57627-51010iJCG17¥2,630200008

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-51010iJCG17¥2,630200008

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-51010iJCG17¥10,600200008

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-51010iJCG17¥4,950200008

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-51010iJCG17¥1,780200008

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-51010iJCG17¥3,940200008

sub57805-51011¥2,470

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-51010iJCG17¥3,940200008

sub57806-51011¥2,470

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-51010iJCG17¥8,800200008

58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR

main58062-30010iJCG17¥1,610200008

58111APAN, FRONT FLOOR, RH

main58111-51010iJCG17¥23,000200008

58112CPAN, FRONT FLOOR, LH

main58112-51010iJCG17¥23,000200008

58113APANEL, FRONT FLOOR, CENTER

main58113-51011iJCG17¥27,700200008

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-51010iJCG17¥450200008

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-51010iJCG17¥160200008

58208PAN, CENTER FLOOR

main58211-51901iJCG17¥27,700200008

sub58211-51902¥27,900

sub57805-53011¥3,920

58212CPAN, CENTER FLOOR, FRONT

main58212-51010iJCG17¥13,700200008

58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH

main58213-51011iJCG17¥580200008

58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH

main58214-51011iJCG17¥580200008

58261ACOVER, TRANSMISSION

main58261-51010iJCG17¥6,600200008

58268DREINFORCEMENT, PARKING BRAKE CABLE, NO.3

main58268-51011iJCG17¥1,340200008

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-51010iJCG17¥3,420200008

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-30030iJCG17¥480200008

58299CBRACKET, HOT AIR INTAKE, NO.2

main58299-30010iJCG17¥900200008

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-53010iJCG17¥740200008

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-51020iJCG17¥19,800200008

58311PAN, REAR FLOOR

main58311-51010iJCG17¥18,600200008-200012

sub58311-51011¥18,400

main58311-51011iJCG17¥18,400200012

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-51010iJCG17¥4,630200008

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-51010iJCG17¥4,600200008

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58317-51010iJCG17¥1,210200008-200104

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58316-51010iJCG17¥1,210200008-200104

58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT

main58323-51010iJCG17¥1,340200008

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-51010iJCG17¥2,300200008

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30010iJCG17¥840200008

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-30020iJCG17¥1,590200008

58613CSHEET, FRONT FLOOR SILENCER, CENTER

main58613-51010iJCG17¥9,300200008

58653CSHEET, REAR FLOOR SILENCER, NO.2

main58653-51010iJCG17¥9,400200008

58791BCARRIER, JACK

main58791-30030iJCG17¥1,320200008

6104

9011506167

main90115-06167¥70

9011506243

main90115-06243¥80

9011506301

main90115-06301¥60

9011506314

main90115-06314¥110

9015960496

main90159-60496¥60

9018906066

main90189-06066¥80

9033325001

main90333-25001¥140

9033325003

main90333-25003¥70

9033330008

main90333-30008¥70

9046706124

main90467-06124¥200

9090115010

main90901-15010¥370

9090467034

main90904-67034¥200

9095001539

main90950-01539¥110

9095001604

main90950-01604¥110

9095001630

main90950-01630¥240

9095001668

main90950-01668¥120

9095001759

main90950-01759¥120

9095001762

main90950-01762¥110

9095001808

main90950-01808¥110

9095001841

main90950-01841¥110

9095001842

main90950-01842¥240

9095001867

main90950-01867¥230

9095001882

main90950-01882¥140

9095006001

main90950-06001¥170

73 parts on this diagram · 1 diagram in section
