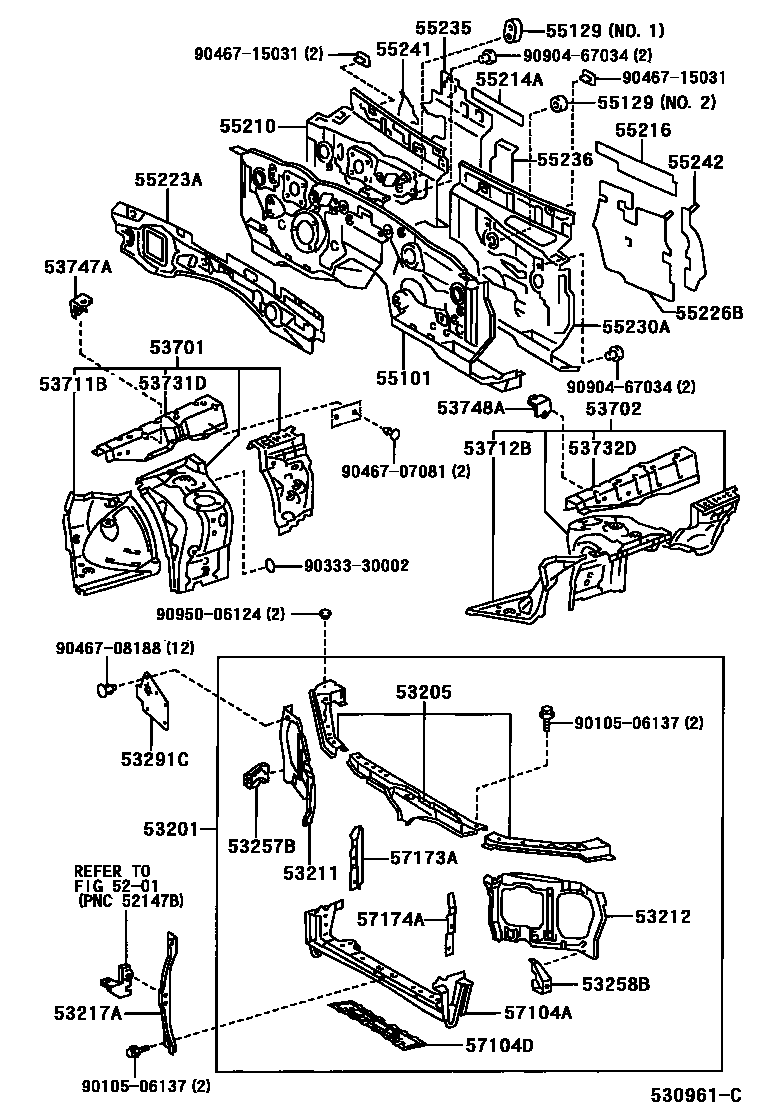

FRONT FENDER APRON & DASH PANEL
5201
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53217ABRACE, HOOD LOCK SUPPORT
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53291CSEAL, RADIATOR SUPPORT TO FRAME
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55214APAD, DASH PANEL INSULATOR, NO.2
55216PAD, DASH PANEL INSULATOR, NO.4
55223AINSULATOR, DASH PANEL, OUTER
55226BSHEET, DASH PANEL INSULATOR, NO.5
55230AINSULATOR ASSY, DASH PANEL, NO.4
55235SHEET, DASH PANEL INSULATOR, NO.3
55236SHEET, DASH PANEL INSULATOR, NO.4
55241SILENCER, FRONT PANEL SIDE, NO.1 RH
55242SILENCER, FRONT PANEL SIDE, NO.1 LH
57104AMEMBER SUB-ASSY, FRONT CROSS
57104DMEMBER SUB-ASSY, FRONT CROSS
57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
9010506137
main90105-06137
9033330002
main90333-30002
9046707081
main90467-07081
9046708188
main90467-08188
9046715031
main90467-15031
9090467034
main90904-67034
9095006124
main90950-06124
40 parts on this diagram · 1 diagram in section
