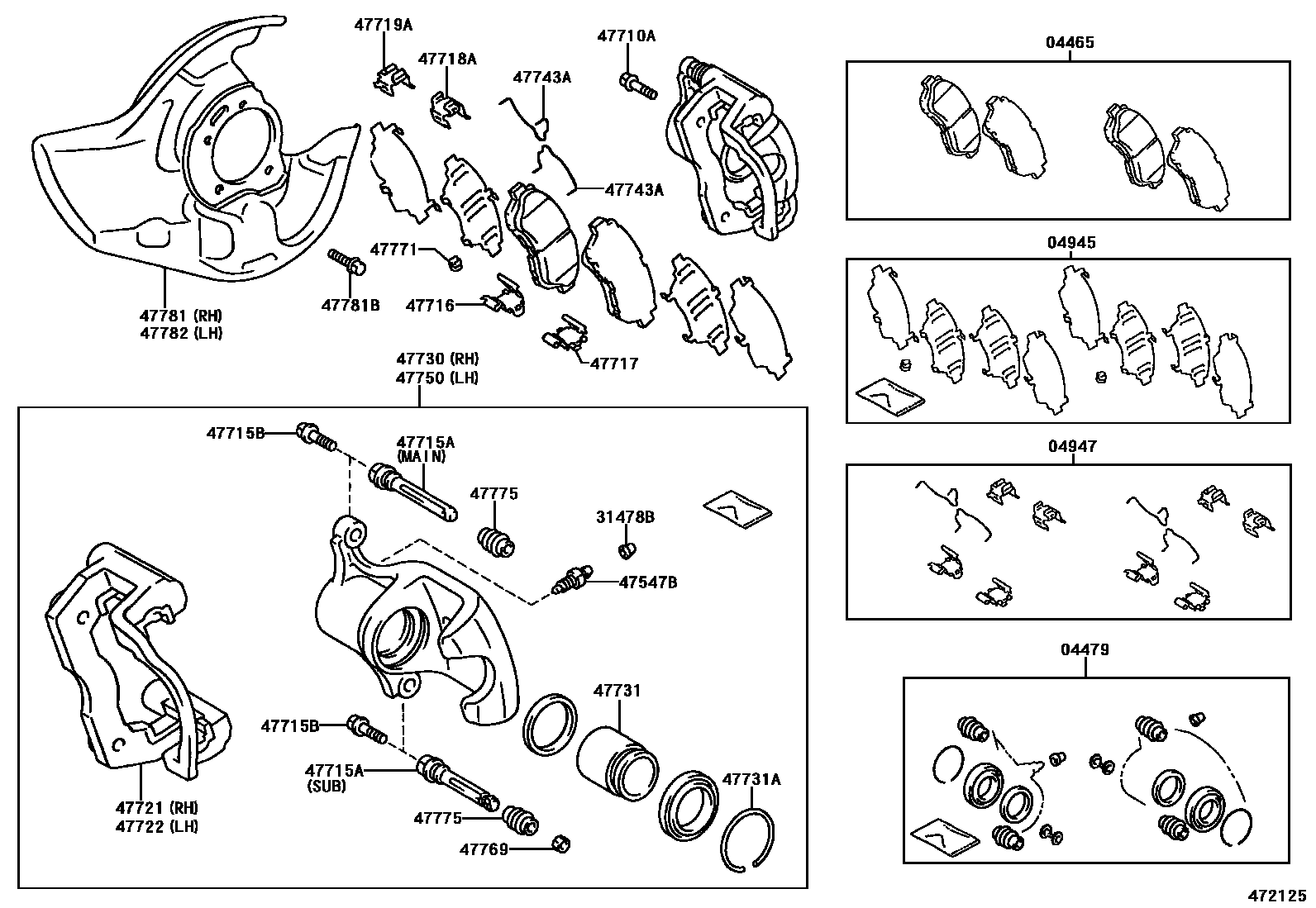

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-30080iJCG17200008

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30150iJCG17200008-200101

sub04479-30151

main04479-30151iJCG17200101

sub04478-53020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33020iJCG17200008

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30100iJCG17200008

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iJCG17200008

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iJCG17200008

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iJCG17200008

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iJCG17200008

main47715-22080iJCG17200008

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iJCG17200008

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30160iJCG17200008

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-30170iJCG17200008

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-30050iJCG17200008

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-30060iJCG17200008

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22150iJCG17200008

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22110iJCG17200008

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30330iJCG17200008

47731PISTON, FRONT DISC BRAKE

main47731-30110iJCG17200008

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iJCG17200008

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-50010iJCG17200008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30330iJCG17200008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iJCG17200008

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-50010iJCG17200008

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iJCG17200008

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22161iJCG17200008-200009

sub47781-22162

main47781-22162iJCG17200009

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028iJCG17200008

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22161iJCG17200008-200009

sub47782-22162

main47782-22162iJCG17200009

26 parts on this diagram · 1 diagram in section
