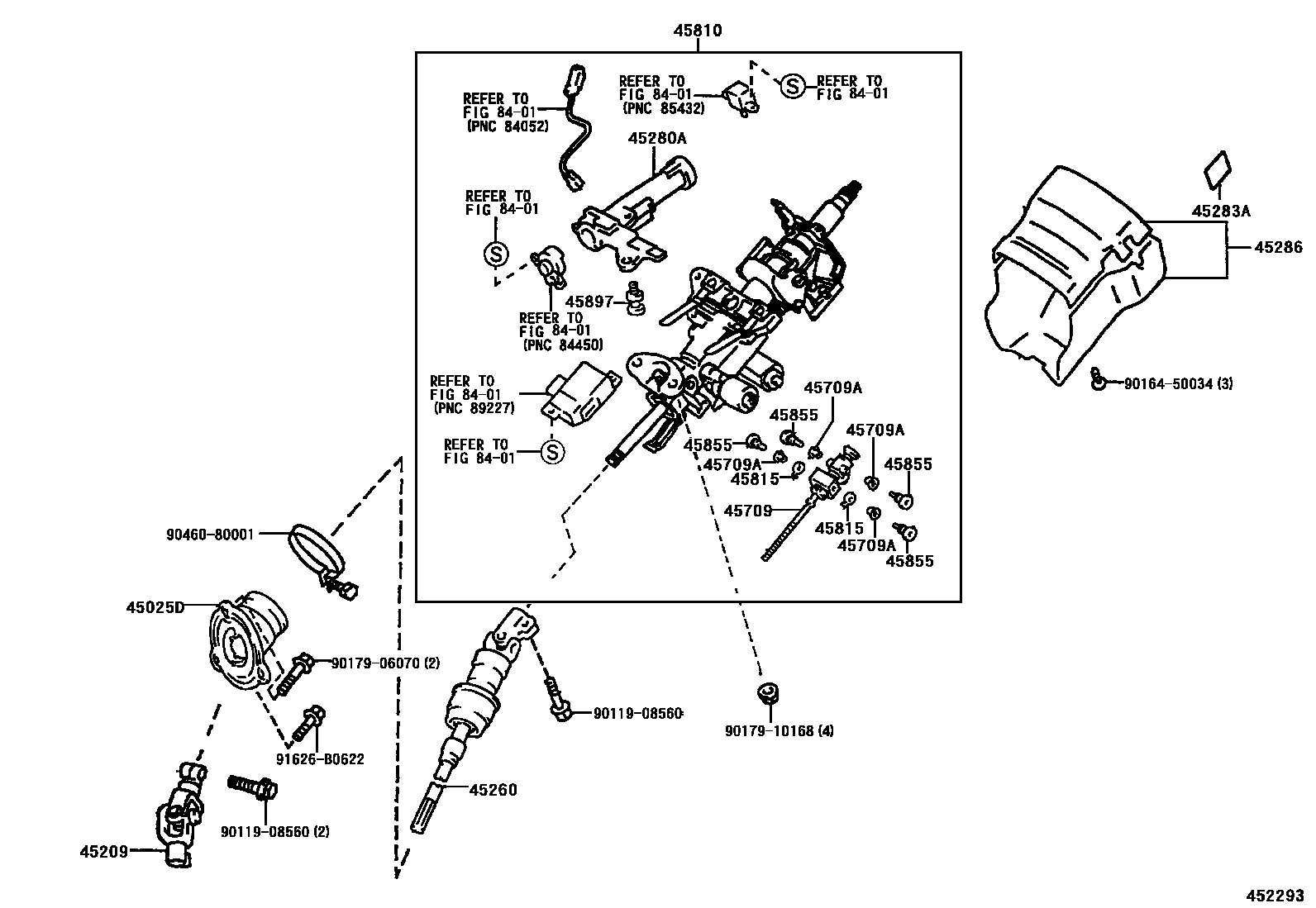

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-51010iJCG17200008

45209YOKE SUB-ASSY, STEERING SLIDING

main45206-51010iJCG17200008

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-51010iJCG17200008

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-30680iJCG17200008

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iJCG17200008

45286COVER, STEERING COLUMN

main45286-51901-C0iJCG17200008

BLACK,TRIM00

sub45286-51902

sub45816-24010

45709SLIDER SUB-ASSY, TILT STEERING

main45709-30030iJCG17200008

45709ABUSH(FOR TILT STEERING SLIDER)

main90389-08133iJCG17200008

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-51010iJCG17200008

45815SHIM, TILT STEERING SUPPORT

main45815-30020iJCG17200008

45855BOLT, TILT STEERING, NO.1

main45855-30010iJCG17200008

45897BOLT, STEERING LOCK SET

main45897-12020iJCG17200008

8401

9011908560

main90119-08560

9016450034

main90164-50034

9017906070

main90179-06070

9017910168

main90179-10168

9046080001

main90460-80001

91626B0622

main91626-B0622

19 parts on this diagram · 1 diagram in section
