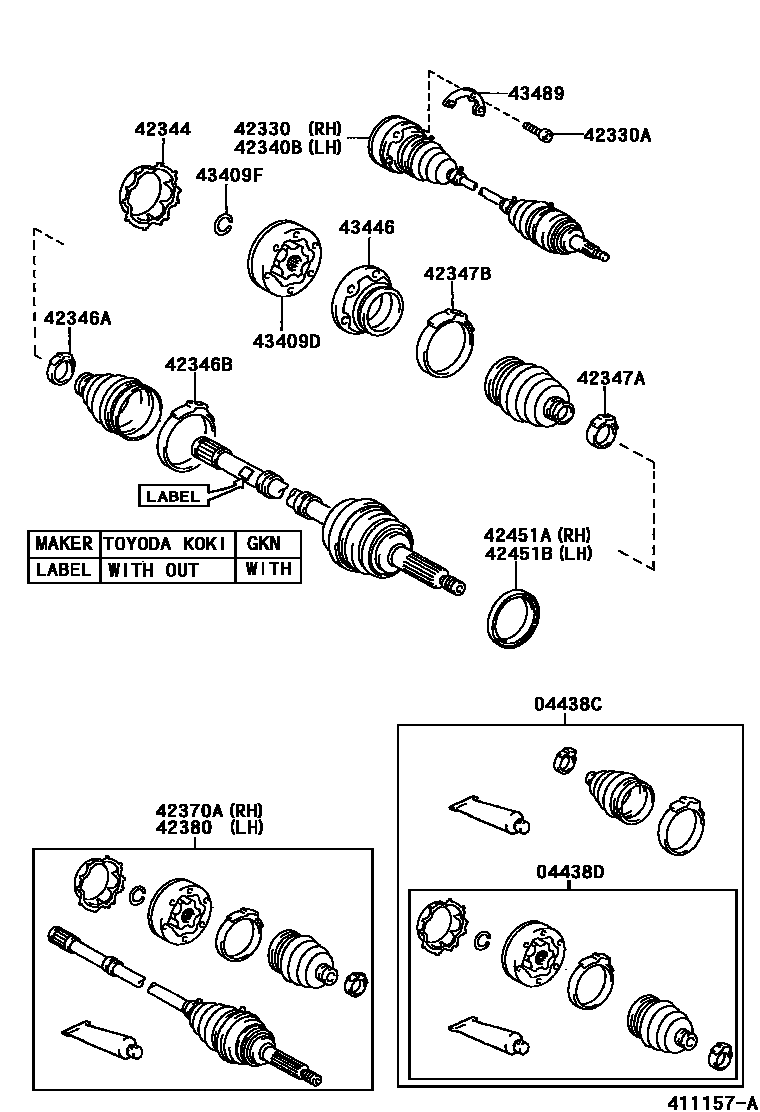

REAR AXLE SHAFT & HUB

0001 1 0002 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-0W020iJCG17200008

main04437-30060iJCG17200008

sub04429-30040

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-0W010iJCG17200008

main04437-30050iJCG17200008

sub04439-30030

42330SHAFT ASSY, REAR DRIVE, RH

main42330-0W010iJCG17200008

main42330-30120iJCG17200008

42330ABOLT(FOR REAR DRIVE SHAFT)

main90110-10016iJCG17200008

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-0W010iJCG17200008

main42340-30120iJCG17200008

42344COVER, REAR AXLE INBOARD JOINT END

main42344-30030iJCG17200008

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-0W010iJCG17200008-200104

main42345-30080iJCG17200008-200104

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-0W020iJCG17200008-200104

main42345-30070iJCG17200008-200104

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-0W010iJCG17200008-200104

main42345-30080iJCG17200008-200104

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-0W020iJCG17200008-200104

main42345-30070iJCG17200008-200104

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-09006iJCG17200008

main42370-39136iJCG17200008

sub42370-39205

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-09006iJCG17200008

main42380-39056iJCG17200008

sub42380-39115

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42453-50010iJCG17200008

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42453-50010iJCG17200008

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-0W010iJCG17200008

main43409-30030iJCG17200008

43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main43425-0W020iJCG17200008

main90520-26028iJCG17200008

43446COVER, REAR AXLE INBOARD JOINT

main43446-30010iJCG17200008

43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

main43489-30020iJCG17200008

18 parts on this diagram · 2 diagrams in section
