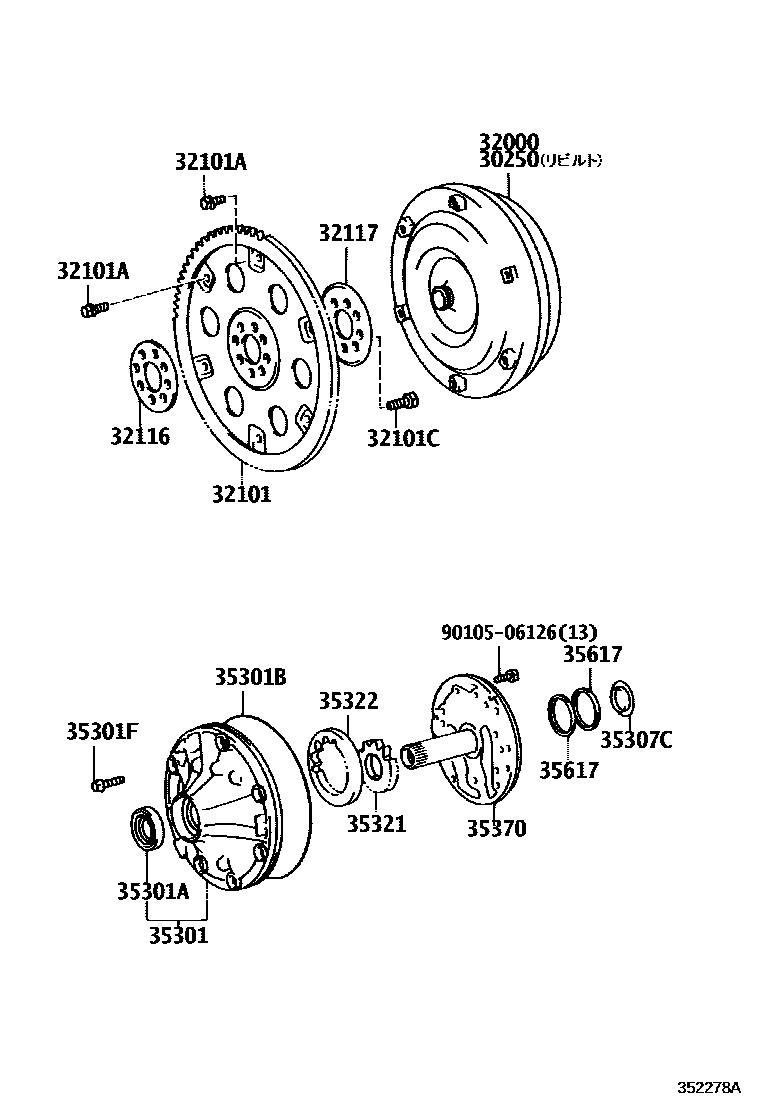

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-30311iJCG17200008

32000CONVERTER ASSY, TORQUE

main32000-30311iJCG17200008

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-22050iJCG17200008

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09009iJCG17200008

main90119-09010iJCG17200008

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10294iJCG17200008

32116SPACER, DRIVE PLATE, FRONT

main32116-22020iJCG17200008

32117SPACER, DRIVE PLATE, REAR

main32117-22020iJCG17200008

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-35010iJCG17200008

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iJCG17200008

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iJCG17200008

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iJCG17200008

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30340iJCG17200008

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iJCG17200008

main35321-12030iJCG17200008

main35321-12040iJCG17200008

main35321-12050iJCG17200008

main35321-12060iJCG17200008

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iJCG17200008

main35322-12020iJCG17200008

main35322-12030iJCG17200008

main35322-12040iJCG17200008

main35322-12050iJCG17200008

35370SHAFT ASSY, STATOR

main35370-30031iJCG17200008

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iJCG17200008

9010506126

main90105-06126

17 parts on this diagram · 1 diagram in section
