IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01219i2JZGE..JCG17200008

19500COIL ASSY, IGNITION

main90919-02216i2JZGE..JCG17200008

19531HOLDER, RESISTIVE CORD, NO.1

main19539-50010i2JZGE..JCG17200008

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i2JZGE..JCG17200008

19533HOLDER, RESISTIVE CORD, NO.3

main19539-70010i2JZGE..JCG17200008

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15317i2JZGE..JCG17200008

sub90919-15570

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15456i2JZGE..JCG17200008

sub90919-15568

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15457i2JZGE..JCG17200008

sub90919-15569

19941CLAMP, RESISTIVE CORD, NO.1

main90929-01361i2JZGE..JCG17200008

19942CLAMP, RESISTIVE CORD, NO.2

main90929-01360i2JZGE..JCG17200008

9091911007

main90919-11007

9151160625

main91511-60625

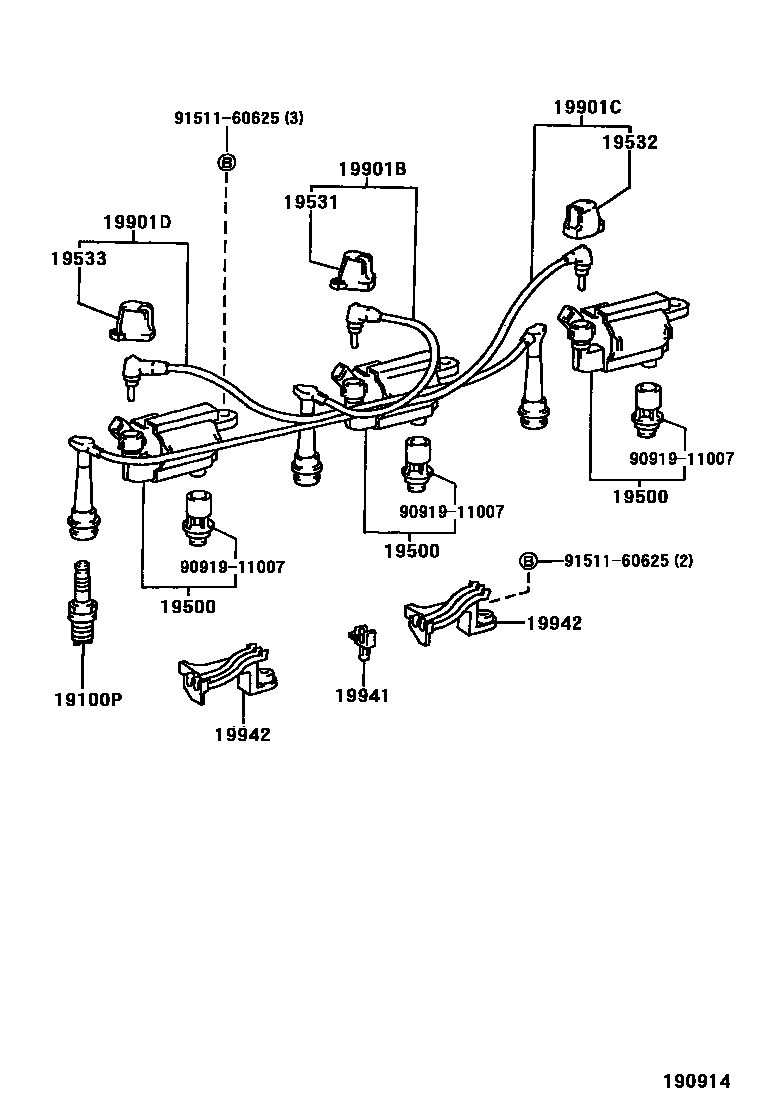

12 parts on this diagram · 1 diagram in section
