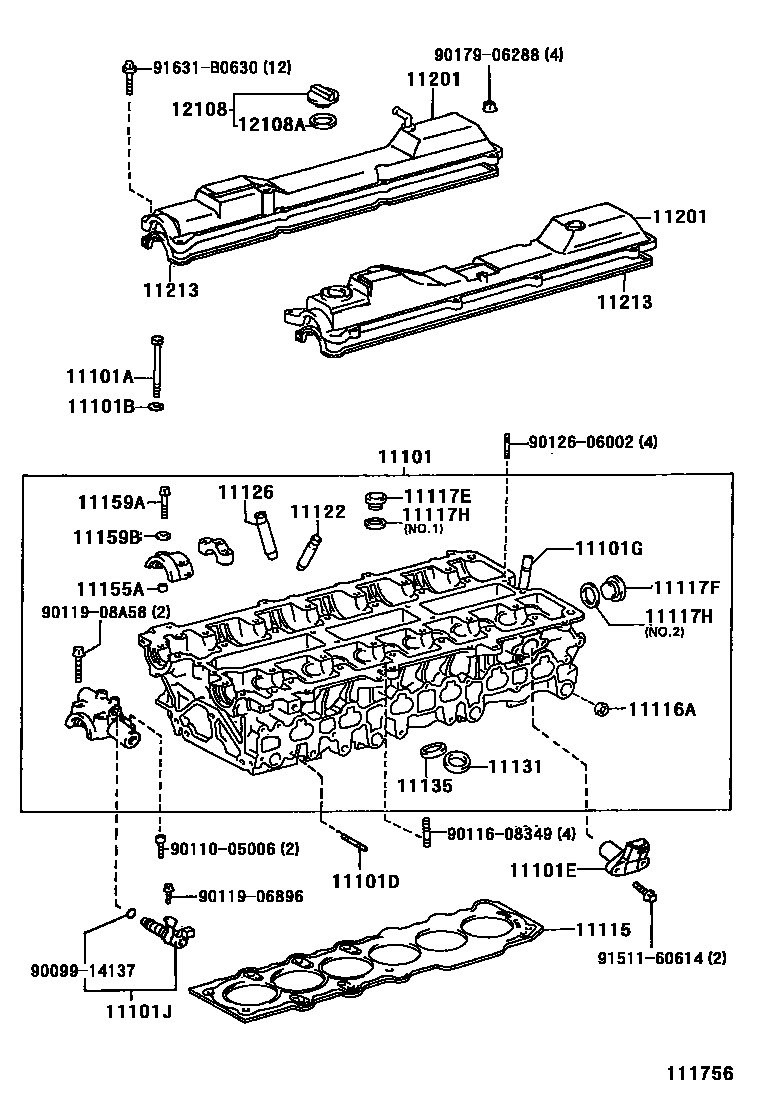

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-49377
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
sub90201-11034
11101DBOLT, STUD(FOR WATER OUTLET)
11101ESENSOR, CAM POSITION
11101GUNION(FOR CYLINDER HEAD)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
sub15330-46011
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11135SEAT, EXHAUST VALVE
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159BWASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
9009914137
main90099-14137
9011005006
main90110-05006
9011608349
main90116-08349
9011906896
main90119-06896
9011908A58
main90119-08A58
9012606002
main90126-06002
9017906288
main90179-06288
9151160614
main91511-60614
91631B0630
main91631-B0630
32 parts on this diagram · 1 diagram in section
