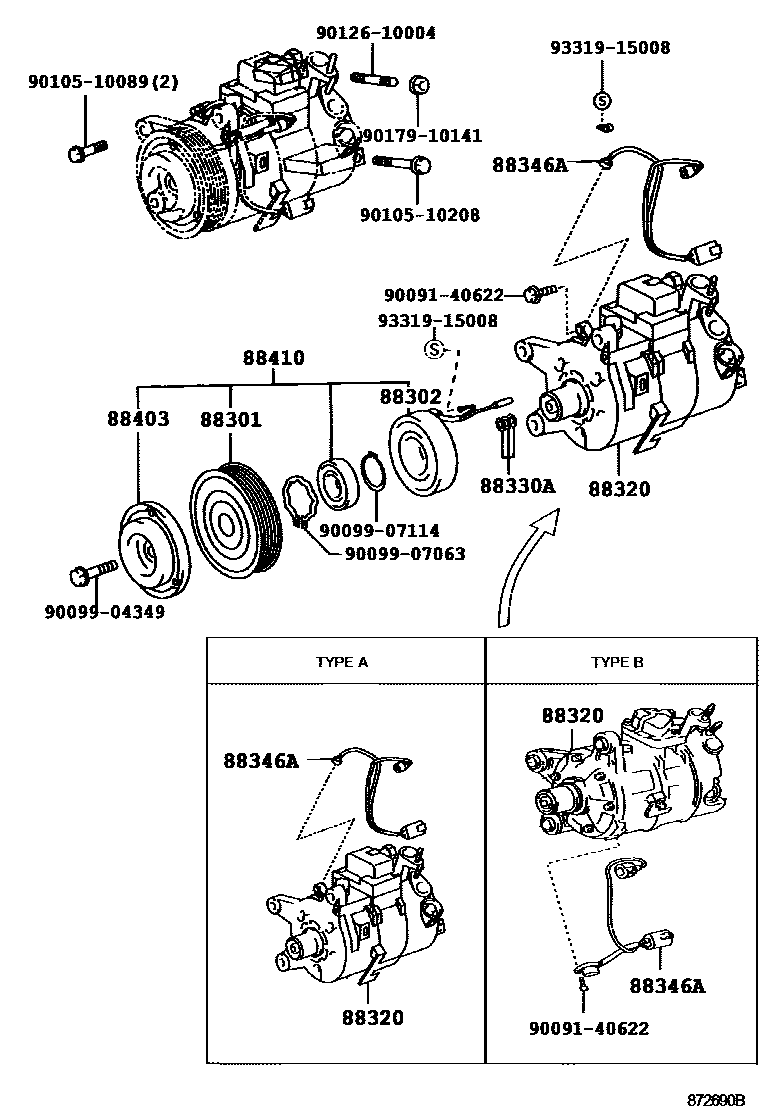

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-2A030iJCG1#199805-200104

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iJCG1#199805-200104

88320COMPRESSOR ASSY, COOLER

main88320-2A050iJCG1#199805-200107

sub88320-2A051

main88320-2A051iJCG1#200107

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iJCG1#199805-200104

88346ASENSOR, COMPRESSOR PICK UP

main88336-2A010iJCG1#199805-200104

main88336-2A010iJCG1#200104-200706

main88346-2A010iJCG1#199805-200104

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-3A100iJCG1#199805-200104

88410CLUTCH ASSY, MAGNET

main88410-3A220iJCG1#199805-200104

9009140622

main90091-40622

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9010510089

main90105-10089

9010510208

main90105-10208

9012610004

main90126-10004

9017910141

main90179-10141

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
