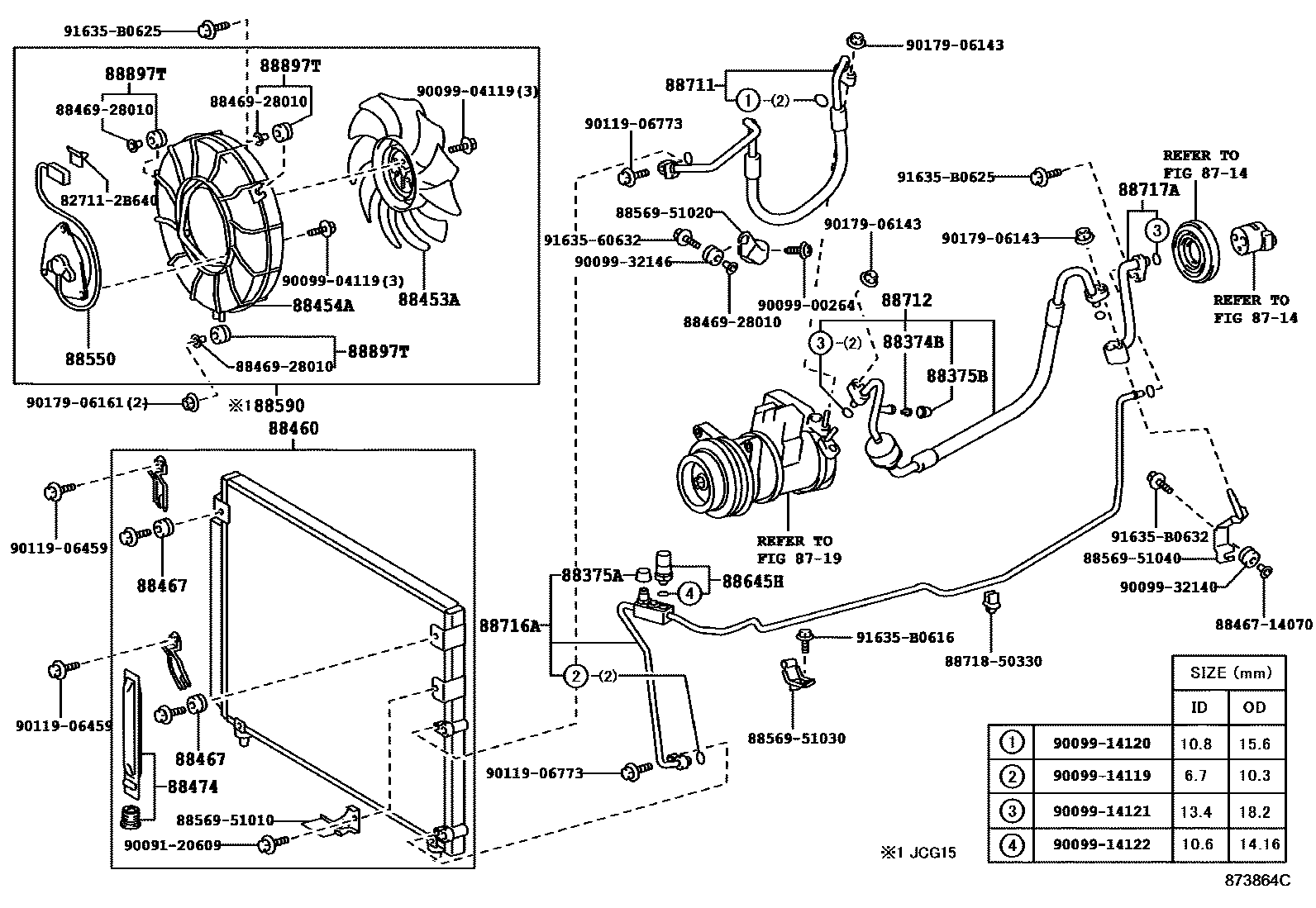

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iJCG1#199805-200104

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iJCG1#199805-200104

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iJCG1#199805-200104

88453AFAN, COOLING

main88453-51010iJCG15199912-200104

88454ASHROUD, FAN

main88454-51010iJCG15199912-200104

88460CONDENSER ASSY, COOLER

main88460-51010iJCG1#199805-200104

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32020iJCG1#199805-200104

88474DRYER, COOLER

main88474-22010iJCG1#199805-199909

sub88474-47010

main88474-47010iJCG1#199909-200104

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-64070iJCG15199912-200104

88590BLOWER ASSY, W/SHROUD

main88590-51010iJCG15199912-200104

88645HSWITCH, PRESSURE NO.1

main88645-22070iJCG1#199805-200104

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-51040iJCG10,11200104

main88703-51050iJCG15200104

main88711-51010iJCG10,11199805-200104

main88711-51020iJCG15199912-200104

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-3F010iJCG15199912-200104

main88712-51010iJCG10,11199805-200104

main88712-51020iJCG10,11200104

main88712-51030iJCG15200104

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-51030iJCG1#200104

main88726-51010iJCG1#199805-200104

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88727-51020iJCG1#199805-200104

88897TGROMMET, COOLER

main88897-50020iJCG15199912-200104

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8856951010CLAMP (FOR COOLER RELAY)

main88569-51010

8856951020CLAMP (FOR COOLER RELAY)

main88569-51020

8856951030CLAMP (FOR COOLER RELAY)

main88569-51030

8856951040CLAMP (FOR COOLER RELAY)

main88569-51040

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

9009120609

main90091-20609

9009900264

main90099-00264

9009904119

main90099-04119

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9009932140

main90099-32140

9009932146

main90099-32146

9011906459

main90119-06459

9011906773

main90119-06773

9017906143

main90179-06143

9017906161

main90179-06161

9163560632

main91635-60632

91635B0616

main91635-B0616

91635B0625

main91635-B0625

91635B0632

main91635-B0632

43 parts on this diagram · 2 diagrams in section
