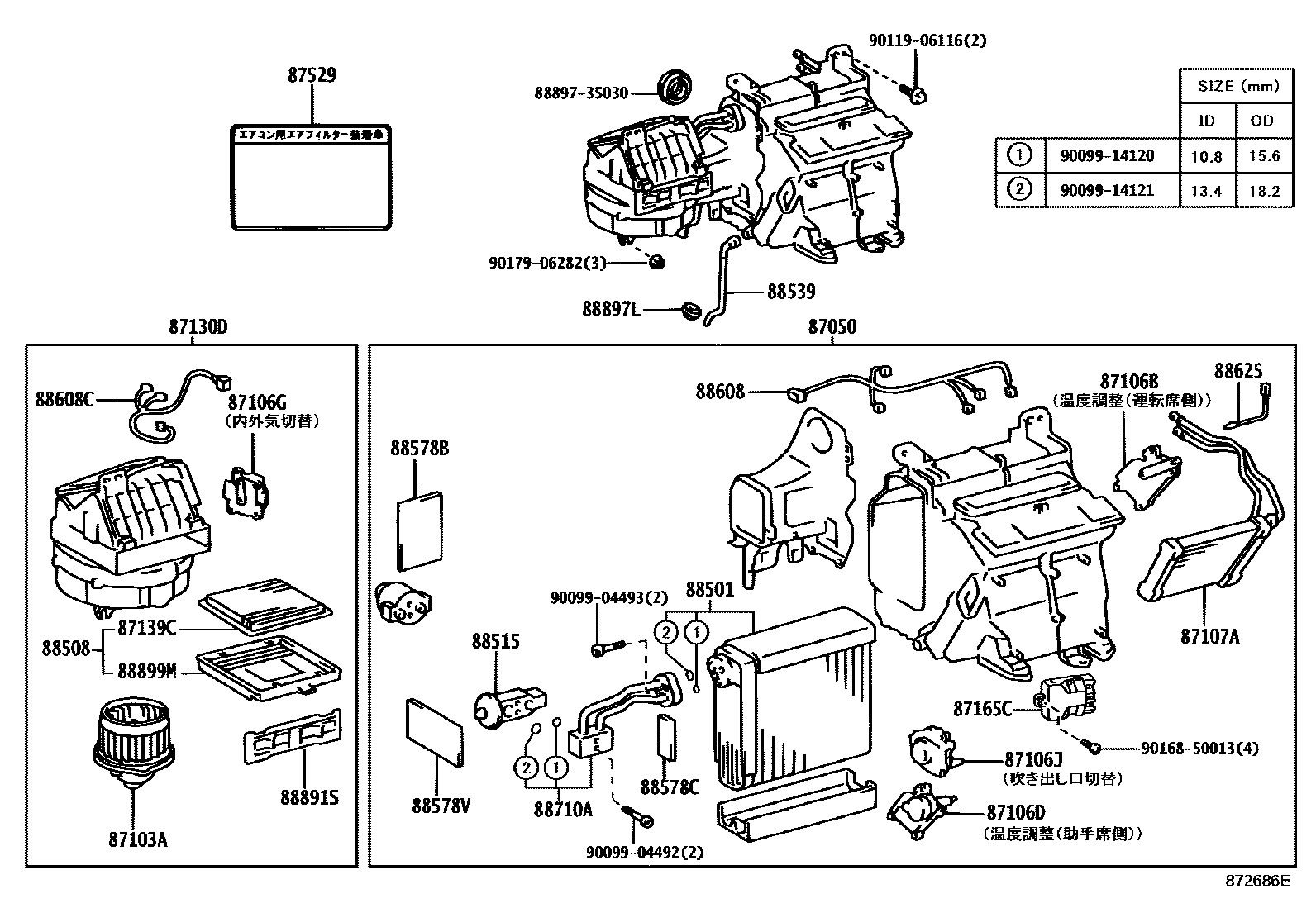

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87050RADIATOR ASSY, AIR CONDITIONER

main87050-51010iJCG1#199805-200104

main87050-51011iJCG1#200104

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-51010iJCG1#199805-200104

87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

main87106-30340iJCG1#199805-200307

sub87106-30341

main87106-30341iJCG1#200307

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-30350iJCG1#199805-200307

sub87106-30351

main87106-30351iJCG1#200307

87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-30380iJCG1#199805-200104

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30361iJCG1#199805-200104

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30500iJCG1#199805-199812

sub87107-30510

sub87107-30520

sub87107-30530

sub87107-51010

main87107-51010iJCG1#199812-200104

87130DBLOWER ASSY

main87130-51010iJCG1#199805-200104

87139CFILTER, CLEAN AIR

main87139-48030iJCG1#199805-200104

main87139-48030iJCG15199912-200104

main87139-48030iJCG1#200104

87165CCONTROL, BLOWER MOTOR

main87165-22040iJCG1#199811-199908

sub87165-22050

main87165-22050iJCG1#199805-200706

87529PLATE, AIR FILTER CAUTION

main87529-51010iJCG1#199805-200706

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A020iJCG1#199805-200108

sub88501-3A050

main88501-3A050iJCG1#200108

88508FILTER SUB-ASSY, CLEAN AIR

main88508-48020iJCG1#199805-200104

88515VALVE, COOLER EXPANSION

main88515-22260iJCG1#200404

main88515-30690iJCG1#199805-200403

sub88515-22260

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30840iJCG15199912-200104

main88539-30870iJCG10,11200110

main88539-51010iJCG10,11199805-200110

88578BPACKING, COOLING UNIT, NO.1

main88578-30760iJCG1#199805-200104

88578CPACKING, COOLING UNIT, NO.2

main88578-30770iJCG1#199805-200104

88578VPACKING, COOLING UNIT, NO.3

main88578-30790iJCG1#199805-200104

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-51010iJCG1#199805-200104

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-51020iJCG1#199805-200104

88625THERMISTOR, COOLER, NO.1

main88625-3A120iJCG1#199805-200104

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A140iJCG1#199805-200104

88891SCOVER, COOLER, NO.1

main88891-30680iJCG1#199805-200104

88897LGROMMET (FOR DRAIN HOSE)

main90099-32129iJCG1#199805-200104

88899MPLATE, COVER(FOR AIR FILTER)

main88899-30870iJCG1#199805-200104

8889735030VALVE, COOLER MAGNET

main88897-35030

9009904492

main90099-04492

9009904493

main90099-04493

9009914120

main90099-14120

9009914121

main90099-14121

9011906116

main90119-06116

9016850013

main90168-50013

9017906282

main90179-06282
