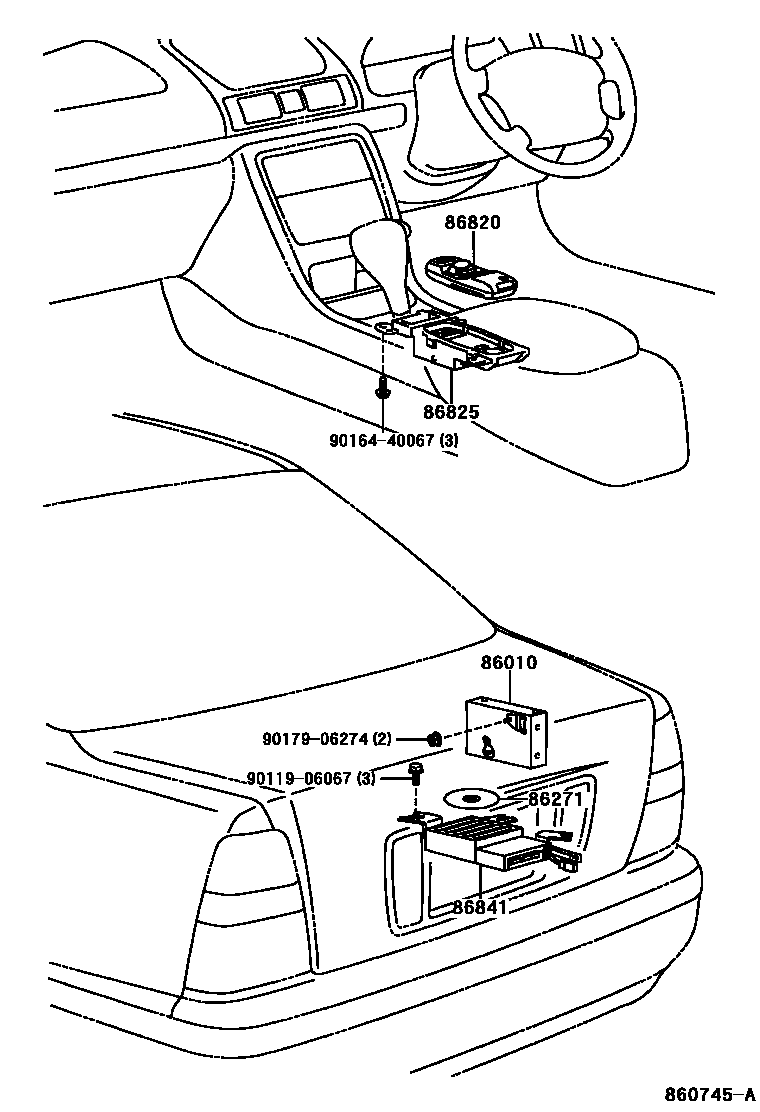

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

86010TUNER ASSY, TELEVISION

main86010-51010iJCG1#199805-200005

main86010-51020iJCG1#200005-200104

main86010-51030iJCG1#200104

86271DISC, DISC PLAYER

main86271-13030iJCG1#200104-200310

sub08664-00436

main86271-13031iJCG1#200310-200403

sub08664-00E10

main86271-13032iJCG1#200404-200410

sub08664-00F26

main86271-13033iJCG1#200410-200506

sub08664-00G15

main86271-13034iJCG1#200507-200603

sub08664-00J15

main86271-13035iJCG1#200604-200608

sub08664-00K15

main86271-13036iJCG1#200609-200703

sub08664-00L15

main86271-13037iJCG1#200704

sub08664-00M15

main86271-33011iJCG1#199805-200005

main86271-33020iJCG1#200005-200104

sub08664-00246

86820CONTROLLER ASSY, NAVIGATION

main86820-51010iJCG1#199805-200104

sub86820-41020

main86820-51020iJCG1#200104-200207

sub86820-51021

main86820-51021iJCG1#200207

86825HOLDER, NAVIGATION CONTROLLER

main86825-51010iJCG1#199805-200104

main86825-51020iJCG1#200104

86841COMPUTER, NAVIGATION

main86841-51010iJCG1#199805-200005

main86841-51020iJCG1#200005-200104

sub86841-51040

main86841-51030iJCG1#200104-200703

9011906067

main90119-06067

9016440067

main90164-40067

9017906274

main90179-06274

8 parts on this diagram · 3 diagrams in section
