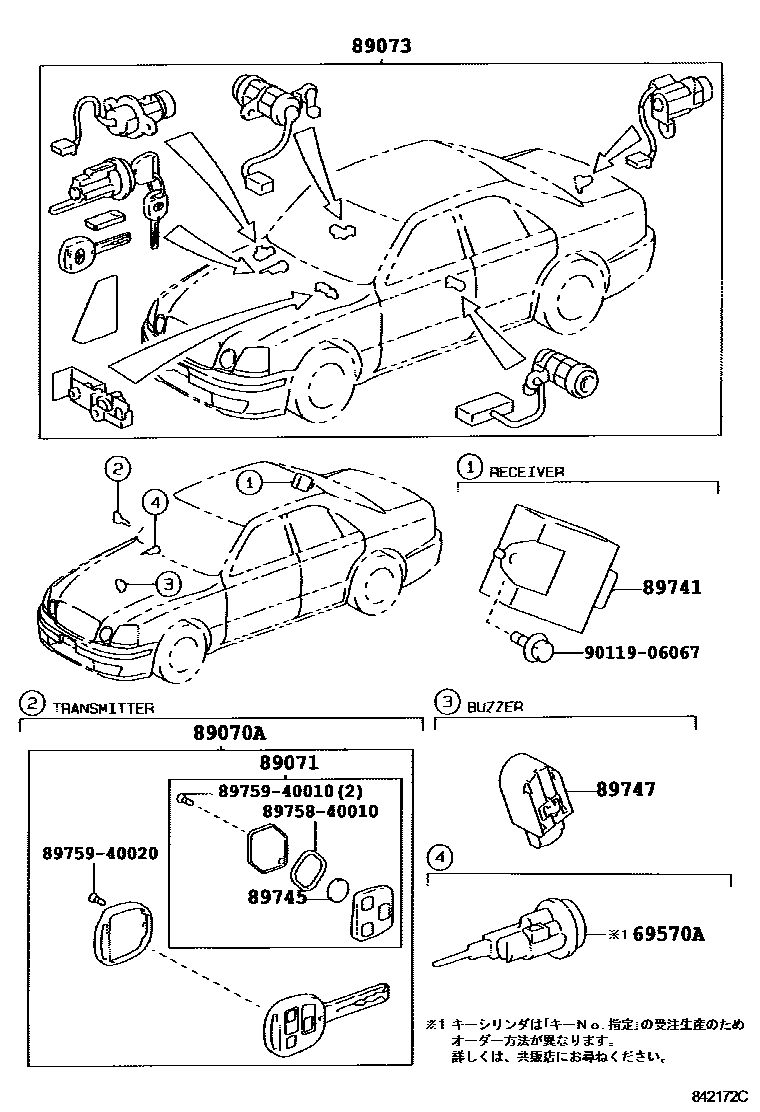

WIRELESS DOOR LOCK

0001 1��(��������) 0002 1��(��������)

69570ACYLINDER ASSY, IGNITION SWITCH LOCK

main69570-30200iJCG10,15199805-200104

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-51030iJCG10,15199805-200104

main89070-51060iJCG11199805-200104

main89070-51120iJCG1#200104-200511

sub89070-51121

main89070-51121iJCG1#200512

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-50010iJCG10,15199805-200008

sub89071-50011

main89071-50011iJCG10,15200008-200104

main89071-50080iJCG11199805-200008

sub89071-50081

main89071-50081iJCG11200008-200511

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-51010iJCG10,15199805-200104

main89073-51030iJCG11199805-200104

89741RECEIVER, DOOR CONTROL

main89741-51010iJCG1#199805-200104

89745BATTERY, TRANSMITTER

main89745-40010iJCG1#199805-200104

89747BUZZER, WIRELESS DOOR LOCK

main89747-51010iJCG1#199805-200104

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020

9011906067

main90119-06067

11 parts on this diagram · 2 diagrams in section
